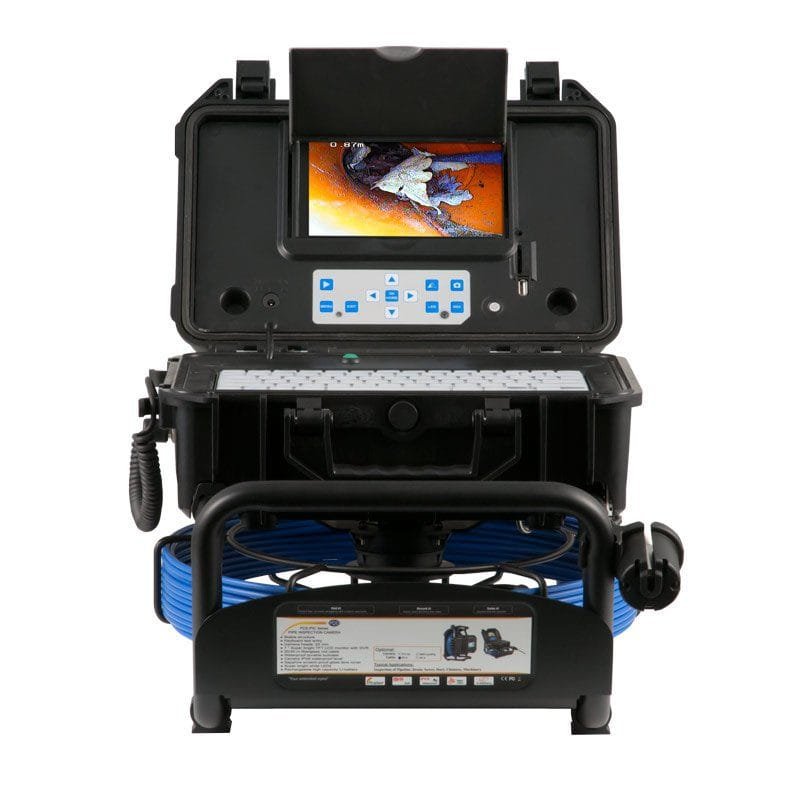

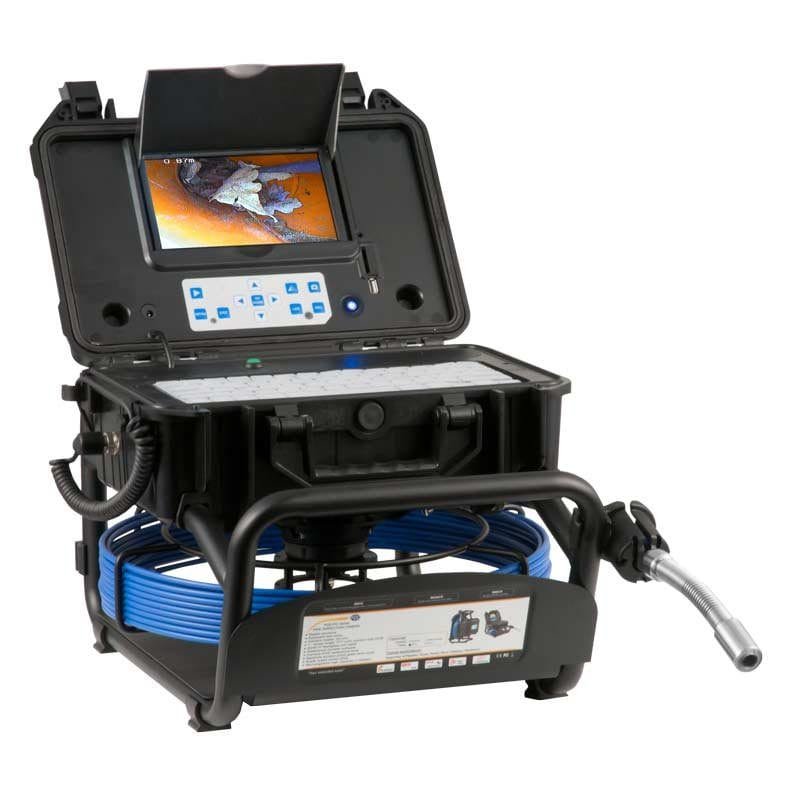

PCE-PIC 20 – Pipe Inspection Camera System with 20m Push Cable

• Pipe inspection system, large LC display, keyboard, counter, video/photo/sound record, remote control
• Camera specs: 23mm (Diameter); 720×576 resolution; Video and image
• Cable specs: 20m (Length) on the reel; Fiberglass
• Lighting: 12 LED lights
• Display: 7in LC with IP66 rating

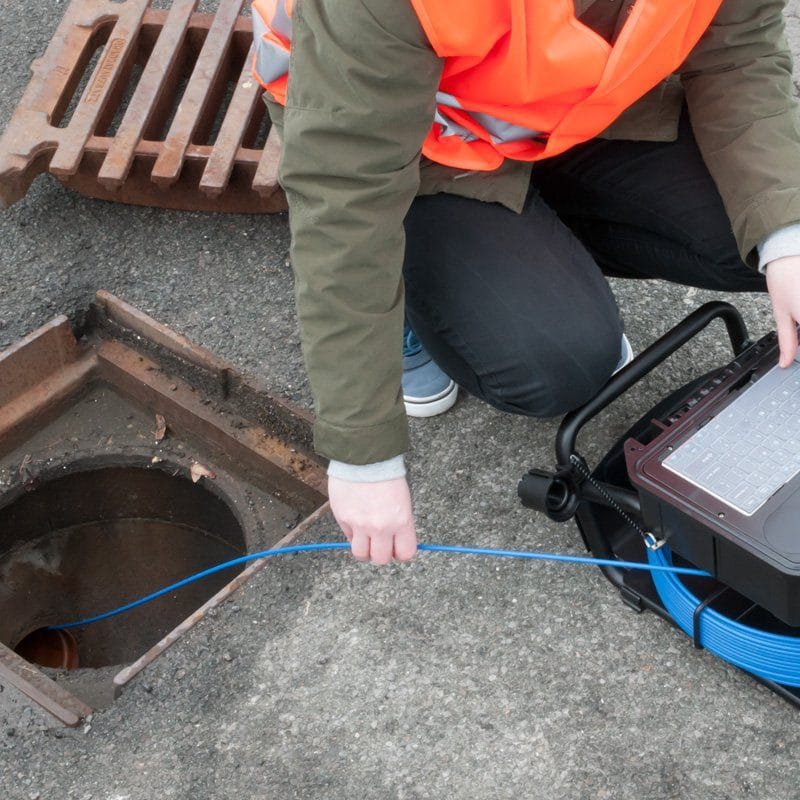

The PCE Instruments PCE-PIC 20 pipe inspection camera is an ideal tool for any service technician who needs to visually inspect pipes and ducts. The inspection camera has a 23 mm (0.9in) camera head, which is attached to a fiberglass push cable. The inspection camera is optimally suited for pipes and ducts DN 40mm to 150 mm / 1.6 to 5.9in. The camera of inspection camera is waterproof up to 20m (66ft). To facilitate the search for damaged areas on canals and pipes, the inspection camera has an electronic meter counter. Recorded pictures and videos can be saved on an SD memory card via the inspection camera. For better documentation, comments can be added to the pictures and videos via the keyboard.

The PCE-PIC 20 inspection camera is delivered in a waterproof case. The case of the inspection camera is mounted directly on the cable scooter. Thus, the inspection camera takes up little space during transport. The inspection camera PCE-PIC 20 is equipped with a rechargeable battery, which enables mobile working. About a power supply or the car charger, the battery of the inspection camera is charged.

PCE-PIC 20 Features

• 23mm diameter camera head, waterproof to 20m
• 20m fiberglass push cable on reel
• Electric meter counter
• Wireless keyboard for comment input on images/videos
• 7in LC display
• Rechargeable battery power supply or 110-240 VAC with adapter
• Remote control included
• Storage to SD card up to 32 GB
• Guides for centering camera in pipes
