PCE-PIC 60 – Pipe Inspection Camera System with 60m Push Cable

• Pipe inspection camera with pan/tilt, large LCD display with keyboard, meter counter, motor focus
• Camera specs: 60mm (Diameter); Pan and Tilt
• Cable specs: 60m (Length) on the reel; Shielded coaxial
• Pipe diameter range: 80mm – 1200mm
• Display: 10.1in LCD

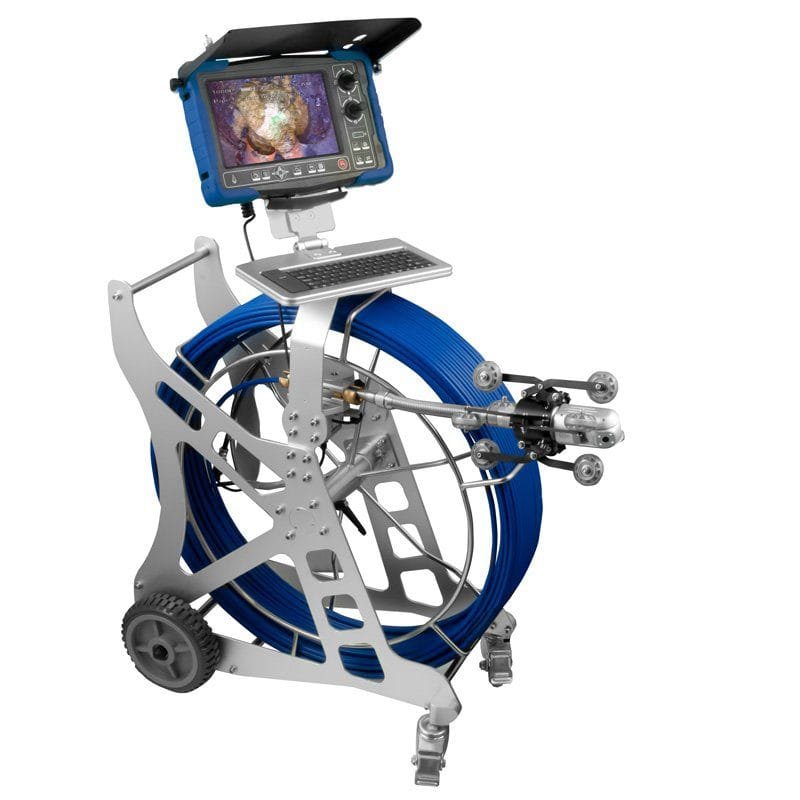

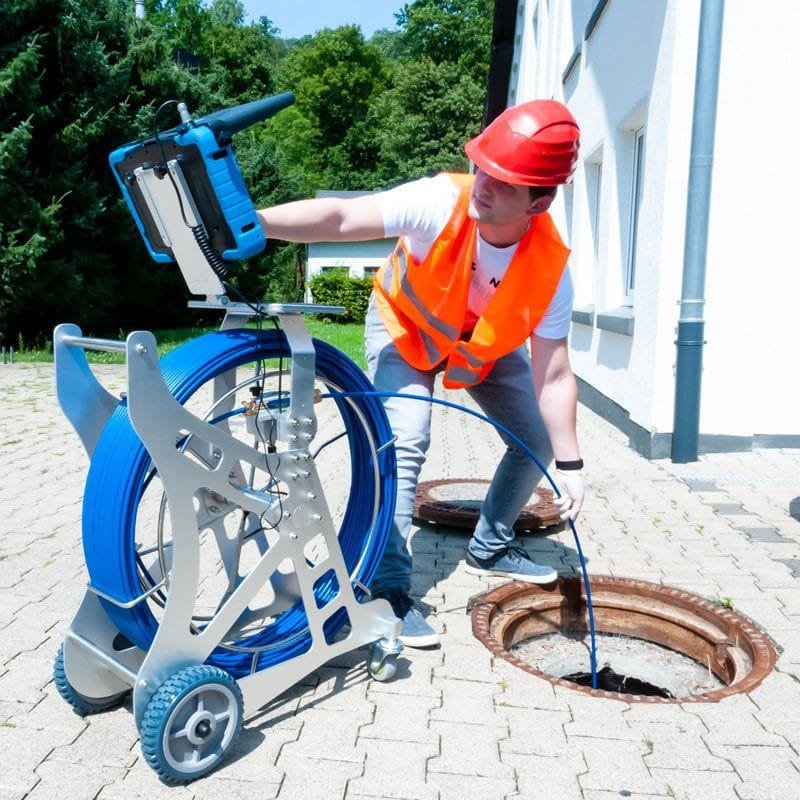

The PCE Instruments PCE-PIC 60 is used to inspect channels and pipes. The tube camera has a 60m (196.9ft) fiber optic push cable. At the end of the tube camera, a motorized camera head is mounted. This camera head is able to be moved 360° horizontally and 180° vertically. Furthermore, the camera has a motorized focus, which makes it possible to realize field of view depths between 20 and 100 cm. At the head of the tube, the camera is 4 ultra-bright LEDs, which perfectly illuminate tubes and channels. The tube camera has an electronic meter counter, which makes it easier to pinpoint damaged areas or blockages in pipes.

For documentation, images and videos can be recorded and saved with the pipe channel camera. For a better view of the image, the tube camera can be connected via HDMI cable to an external monitor. The tube camera takes pictures in 1080P, so no detail is lost. To add commentary to the scan, the USB keyboard can be used. The tube camera is supplied on a robust, made of the aluminum trolley. Additionally included is a trolley and a roller guide for the camera, which are used to mount the camera head. As a result, pipes and ducts between 80mm and 1200mm can be driven.

PCE-PIC 60 Features

• 60mm diameter IP68 camera head with pan/tilt, picture, and video recording
• Aluminum trolley for camera head

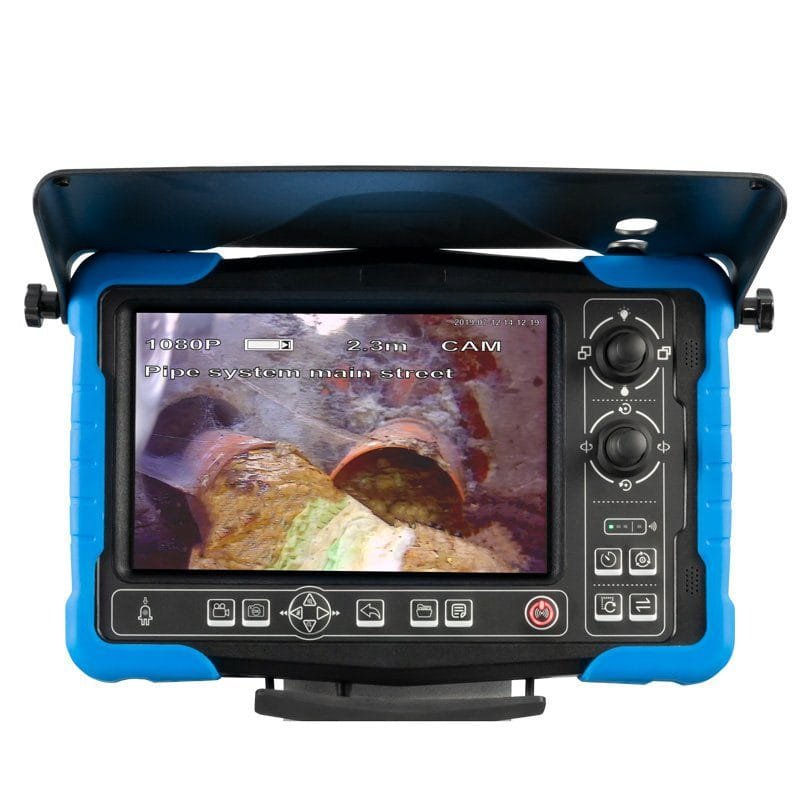

• 10.1in LCD monitor with keyboard – add text to images/video
• Locator transmitter
• USB 2.0, HDMI interface
• 60m push cable on reel
