Phabrix PHQXP-V – QxP 3U SD/HD/2K 10GbE IP Waveform Monitor/Analyzer, V-Mount

• Waveform monitor, generator and analyzer with 1920 x 1200, 7-inch LCD screen
• IEC power input 90-264 VAC, 4 pin XLR Power connector 12V nominal

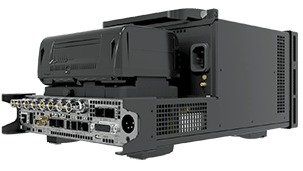

• V-mount battery plate for external battery – battery not included
• SFP28 IP media interfaces
• HDMI Rasterizer output with up to 16 instruments

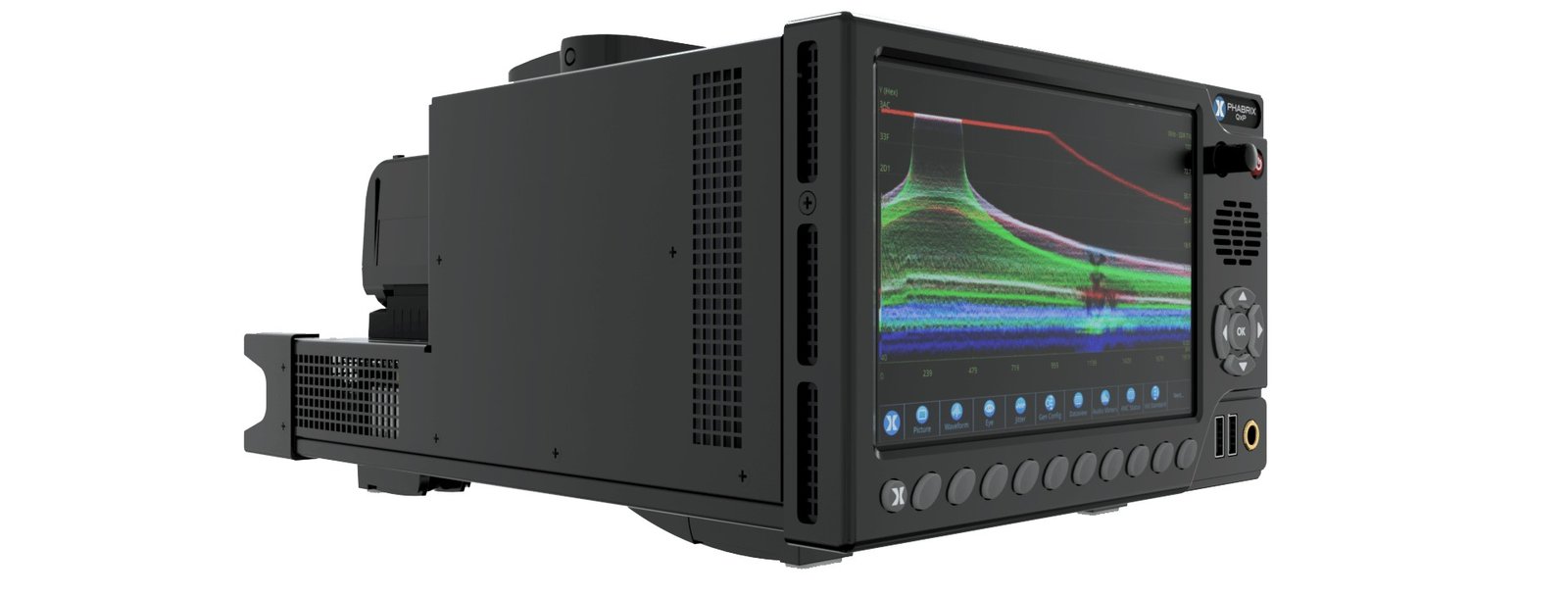

The Phabrix PHQXP-V is a QxP 3U SD/HD/2K 10GbE IP Waveform Monitor/Analyzer with V-mount, allowing the unit to be powered by an external camera battery. This provides all the functionality of the QXL in a handy, lightweight, portable chassis. A wide range of field and factory-fitted options are available.

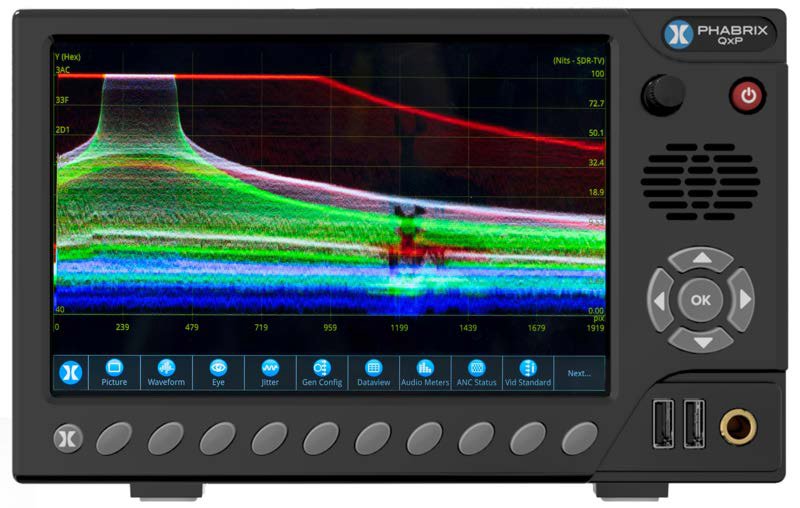

The Phabrix QxP features an integral 3U, multi-touch LCD screen with class-leading Waveforms in a portable unit. A choice of V-mount or Gold mount (G-mount) battery plate is available for portability, making the QxP equally at home on-set in SDR or HDR Productions, Grading, Shading, or QC, MCR, Engineering, and R&D environments.

Inheriting the flexible architecture of the QxL, the QxP includes SMPTE ST 2110, 2022-6, and a wide range of formats as standard. In-field upgrades are available for a rich set of options: UHD/4K, IP-MEAS, HDR, Dolby E decode, PCAP capture, EUHD, and extensive Audio/ Video/ANC te++st signal generation. Factory-fitted options provide SDI interfaces and RTE real-time SDI eye/jitter analysis, with an engineering-grade data view and an optional advanced SDI-STRESS toolset (Requires PHQXP01E-3G).

For real-time IP workflows, the QxP supports simultaneous Generation and Analysis of SD*/HD/3G/UHD/EUHD 2110 payloads on generic SFP28/25 GbE interfaces, with ST 2022-7 Seamless IP Protection Switching (SIPS) and independent PTP followers on both media ports for fully redundant media network operation – all with AMWA NMOS IS-04 and IS-05. *Future software release

Picture view, waveform, vector scope, 32-channel audio metering, detection of Dolby formats, ANC status and payload, on-screen display of OP47 and CEA-608 in 708 closed captions and Ancillary Time Code (ATC), and advanced control and logging are all provided as standard.

Out of the box, the QxP offers external media analysis for broadcast operator HD/3G environments via HDMI, with a flexible user-defined instrument layout displaying up to 16 simultaneous windows, and the ability to rapidly change between bespoke layouts for different operational tasks with user presets. Multiple display layouts can be saved as presets. This allows users to save bespoke layouts for different operational tasks; useful for rapidly changing between different screen layouts eg. Audio, HDR or IP focus.

Whether working in HD, UHD, SDR, HDR, SDI, or IP, conventional or remote production, the QxP combines the user-configurability and advanced tools required for full operational flexibility when transitioning to next-generation workflows.
