Phabrix PHQXP01-3G-G – QxP 3U SD/HD/2K 10GbE IP/SDI Waveform Monitor/Analyzer, G-Mount

Brand:
9 people are viewing this product right now

$17,198.00

Shipping calculated at checkout.
or
Add to quote
Estimated delivery:3 days

QxP 3U SD*/HD/2K 10GbE IP/SDI Waveform Monitor/Analyser, G-mount

  • 3U instrument with integral 1920 x 1200, 7-inch LCD screen
  • IEC power input 90-264 VAC, 4 pin XLR Power connector 12V nominal

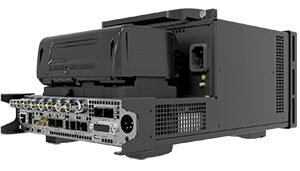

  • G-mount battery plate for external battery – battery not included
  • 2x SFP28 IP media interfaces, 4 x SDI inputs and outputs, SD*/HD/3G, 75-ohm BNC
  • HDMI Rasterizer output with up to 16 instruments
  • Touchscreen, button or mouse-driven user interface for local and remote operation
  • Intuitive interface with presets – QxP puts you in control
  • Remote access and control with remote browser access using noVNC
  • Built-in speaker and headphone jack
  • Class-leading Waveforms in a portable device; wide range of options available
SKU: Phabrix PHQXP01-3G-G Tags: , Categories:
Pay safely with Visa Pay safely with Master Card Pay safely with PayPal Pay safely with Maestro Tooltip text
Guarantee Safe and Secure Payment Checkout

Description

Phabrix PHQXP01-3G-G

  • 3U instrument with integral 1920 x 1200, 7-inch LCD screen
  • IEC power input 90-264 VAC, 4 pin XLR Power connector 12V nominal
  • V-mount battery plate for external battery – battery not included
  • SFP28 IP media interfaces, 4 x SDI inputs and outputs, SD*/HD/3G, 75-ohm
  • HDMI Rasterizer output with up to 16 instruments

QxP 3U SD/HD/2K 10GbE IP/SDI Waveform Monitor/Analyzer, G-Mount

The Phabrix PHQXP01-3G-G is a QxP 3U SD/HD/2K 10GbE IP/SDI Waveform Monitor/Analyzer with G-mount allowing the unit to be powered by an external camera battery. Please note, the battery is not included. A wide range of field and factory fitted options are available.

The Phabrix QxP features an integral 3U, multi-touch LCD screen with class-leading Waveforms in a portable unit. A choice of V-mount or Gold mount (G-mount) battery plate is available for portability, making the QxP equally at home on-set in SDR or HDR Productions, Grading, Shading, or QC, MCR, Engineering and R&D environments.

Inheriting the flexible architecture of the QxL, the QxP includes SMPTE ST 2110, 2022-6 and a wide range of formats as standard. In-field upgrades are available for a rich set of options: UHD/4K, IP-MEAS, HDR, Dolby E decode, PCAP capture, EUHD and extensive Audio/ Video/ANC te++st signal generation. Factory-fitted options provide SDI interfaces and RTE™ real-time SDI eye/jitter analysis, with an engineering grade data view and an optional, advanced SDI-STRESS toolset.

For real-time IP workflows the QxP supports simultaneous Generation and Analysis of SD*/HD/3G/UHD/EUHD 2110 payloads on generic SFP28/25 GbE interfaces, with ST 2022-7 Seamless IP Protection Switching (SIPS) and independent PTP followers on both media ports for fully redundant media network operation – all with AMWA NMOS IS-04 and IS-05. *Future software release

Analysis and Monitoring Toolset

Picture view, waveform, vector scope, 32 channel audio metering, detection of Dolby formats, ANC status and payload, on screen display of OP47 and CEA-608 in 708 closed captions and Ancillary Time Code (ATC), and advanced control and logging are all provided as standard.

User Defined Instrument Layout

Out of the box, the QxP offers external media analysis for broadcast operator HD/3G environments via HDMI, with a flexible user-defined instrument layout displaying up to 16 simultaneous windows, and the ability to rapidly change between bespoke layouts for different operational tasks with user presets. Multiple display layouts can be saved as presets. This allows users to save bespoke layouts for different operational tasks; useful for rapidly changing between different screen layouts eg. Audio, HDR or IP focus.

Whether working in HD, UHD, SDR, HDR, SDI or IP, conventional or remote production, the QxP combines the user-configurability and advanced tools required for full operational flexibility when transitioning to next generation workflows

Factory-Fitted SDI Option IO View

Product General Attributes

Interfaces I/O LAN / Ethernet, HDMI, USB
Product Weight9.03 LBS
Product Height5.19 IN
Product Length12.00 IN
Product Width8.30 IN

Reviews

There are no reviews yet.

Be the first to review “Phabrix PHQXP01-3G-G – QxP 3U SD/HD/2K 10GbE IP/SDI Waveform Monitor/Analyzer, G-Mount”

Manuals/Guides

BrochuresSpec Sheets
Weight9.03 lbs
Dimensions12 × 8.3 × 5.19 in
