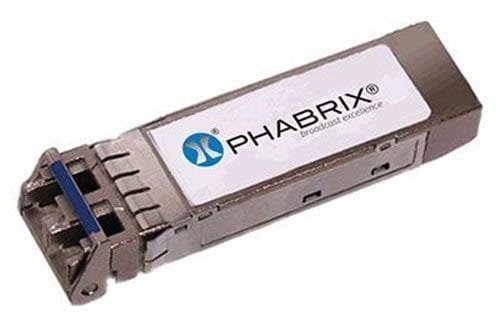

Phabrix PHSFP-2R30-1310 – Dual Channel Optical Receiver 1310nm SFP Module
38 people are viewing this product right now
$459.00
Shipping calculated at checkout.
Estimated delivery:5 days
SFP Dual IN 3G/HD/SD-SDI Optical Receiver – Medium Haul, Non-MSA. Rx 1260nm-1620nm. For PHRXM-A and PHRXM-AE modules only.
- Dual Channel Optical Receiver 1310nm
- Excellent optical recieive performance
- Single mode 1260 -1620nm
- Exceeds SMPTE 297-2006 specifications
- Error-free reception of signals from 50Mbps to 3Gbps
- Hot pluggable
- Selectable from Rx interface
- RoHS compliant
- 56.5mm x 13.4mm x 8.6mm SFP Package
Guarantee Safe and Secure Payment Checkout
Description
Phabrix PHSFP-2R30-1310 – Dual Channel Optical Receiver 1310nm SFP Module
- Dual Channel Optical Receiver 1310nm
- Excellent optical recieive performance
- Single mode 1260 -1620nm
- Exceeds SMPTE 297-2006 specifications
- Error-free reception of signals from 50Mbps to 3Gbps
This dual channel optical receiver SFP module is an option for the PHRXM-A or PHRXM-AE Rx modules and allows the generation of dual optical video test signals for dual link or 3G-SDI applications.
The PHSFP-2R30-1310 is a dual channel optical receiver module designed to receive optical serial digital signals as defined in SMPTE 297-2006. It has been specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates.
It contains two independent receivers designed to provide error-free transmission of signals from 50Mb/s to 3Gb/s over single mode fibre (9/125).
Note that Non-MSA SFP modules were developed for video broadcast and their pin-outs and signal levels are not compatible with MSA SFP modules. The actual data transmitted via the optical fibre, however, is identical.
General Attributes | |
|---|---|
| Product Height | 0.75 IN |
| Product Length | 4.00 IN |
| Product Width | 2.50 IN |
| Shipping Height | 0.75 IN |
| Shipping Length | 4.00 IN |
| Shipping Width | 2.50 IN |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 4 × 2.5 × 0.75 in |
|---|
