Phabrix PHSFP-HDMI-OUT SFP HDMI Output

Name: Phabrix PHSFP-HDMI-OUT SFP HDMI Output - NESTES Instruments
SKU: Phabrix PHSFP-HDMI-OUT
Price: 1010.00 USD
Availability: InStock

Brand:

Phabrix

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

30 people are viewing this product right now

$1,010.00

Shipping calculated at checkout.

Add to quote

Estimated delivery:5 days

SFP SDI-HDMI Output convertor HDMI v1.4 / DVI 1.0 for HDMI signal PHSXO-GENeration (requires PHSXO-GEN option, PHSXO-3GADV for 3G payloads)

Allows testing of HDMI A/V installations
SxTAG EDID Instrument Interngration
Allows generation of HDMI test patterns
Non-MSA video SFP package
Meets SMPTE 424M, 292M and 259M specifacations.
SDI to HDMI without scaling artefacts
Hot pluggable
Selectable from SxTAG interface
RoHS compliant
56.5mm x 13.4mm x 8.6mm SFP Package

SKU: Phabrix PHSFP-HDMI-OUT Tags: Accessories, Video Accessories Categories: Video Accessories

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

Phabrix PHSFP-HDMI-OUT SFP HDMI Output

SDI to HDMI v1.4 / DVI 1.0 Converter
For HDMI Signal Generation
For PHSXTAGC ONLY
Requires PHSXO-3GADV option

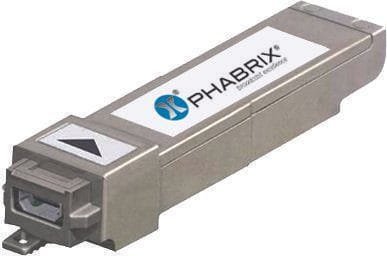

The PHSFP-HDMI-OUT is a single mode transmitter module designed to convert SDI signals to HDMI without scaling artefacts. It allows loopback of SD/HD and 3G-SDI* signals with support for up to 8 channels of audio.

This HDMI transceiver Non-MSA SFP module allows EDID information in both RAW and decoded formats to be displayed on the SxTAG (requires PHSXO-EDID). This is ideal for testing video walls in MCR installations and other professional A/V installations and manufacturing applications.

NOTE: If used with the SxTAG then standard formats include SD and HD, for use with 3G+ formats then software option PHSXO-3GADV will be required.
