Phabrix PHSFP-RT30-HDBNC – SDI Video Transceiver

Name: Phabrix PHSFP-RT30-HDBNC - SDI Video Transceiver - NESTES Instruments
SKU: Phabrix PHSFP-RT30-HDBNC
Price: 541.00 USD
Availability: InStock

Brand:

Phabrix

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

48 people are viewing this product right now

$541.00

Shipping calculated at checkout.

Add to quote

Estimated delivery:3 days

SFP electrical transceiver 3G/HD/SD HDBNC, Non-MSA, includes 2x HDBNC – BNC cables (requires PHSXO-GEN option for Tx)

3G SDI-HDBNC Transceiver
For PHSXTAG – Requires PHSXO-GEN Option
Error-free reception of signals from 50Mbps to 3Gbps
Hot pluggable
Selectable from Rx interface
RoHS compliant
56.5mm x 13.4mm x 8.6mm SFP Package

SKU: Phabrix PHSFP-RT30-HDBNC Tags: Accessories, Video Accessories Categories: Video Accessories

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

Phabrix PHSFP-RT30-HDBNC – SDI Video Transceiver

For PHSXTAG – Requires PHSXO-GEN Option
Error-free reception of signals from 50Mbps to 3Gbps
Hot pluggable
Selectable from Rx interface
RoHS compliant

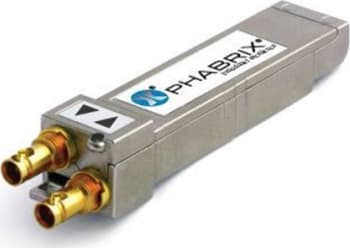

This SDI transceiver SFP module is an option for the PHABRIX SxTAG.

The PHSFP-RT30HDBNC is an SDI video transceiver module designed to transmit and receive SD-SDI, HD-SDI and 3G-SDI serial digital signals as defined in SMPTE 259M, SMPTE 292M and SMPTE 424M.

This is an electrical SFP transceiver module designed to transmit and receive SDI signals up to 2.97 Gbps over 75Ω coaxial cables via HD-BNCTM connectors. The equalizer features DC restoration to compensate for the DC content of SMPTE pathological test patterns.

Note that Non-MSA SFP modules were developed for video broadcast and their pin-outs and signal levels are not compatible with MSA SFP modules
