Phabrix PHSXDL – SxD Dual Link

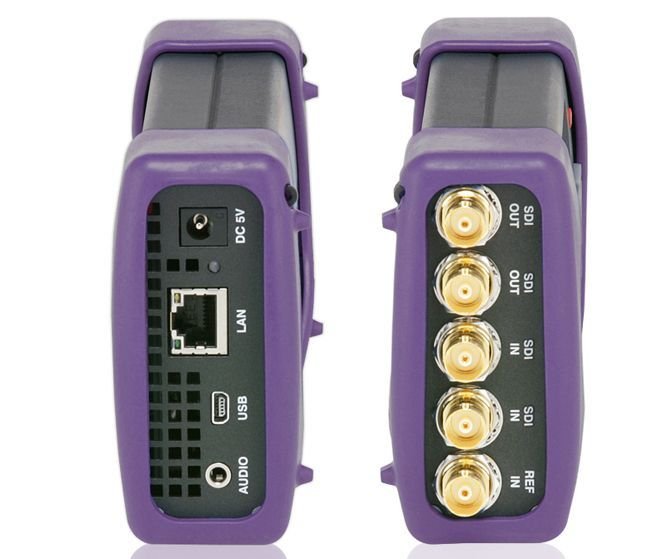

The PHABRIX SxD supports 3G-SDI, HD-SDI, SD-SDI video plus dual link support for two 1.485 Gbps SDI streams. The SxD also supports the different color spaces 4:2:2 YUV, 4:4:4 RGB, 4:4:4 YUV, at 10/12 bit. To support each dual link standard means the SxD has two inputs and two outputs with full CRC/EDH checking on each signal and logging throughout any test procedures. Embedded audio checking is also available.

Auto Bi-level, Tri-level and SDI genlock with cross lock capability. Dual studio timing thermometers. Combined audio features including support for 16 channels of embedded audio complete the suite of functions.

Configured with a full range of test patterns, both static and animated, the SxD is ideal for studio, OB, and lab environments operating from either the internal battery or via the included mains adaptor. With built-in Ethernet connectivity for remote operation, the PHABRIX SxD sets a new standard in portable video/audio signal test generation and monitoring.
