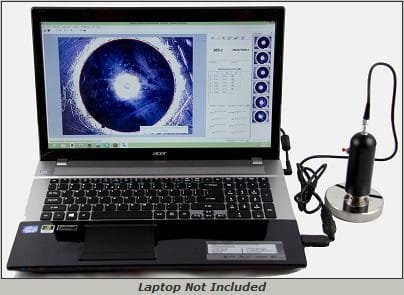

Phase II+ PHT-5000 – Brinell Optical Scan System

• Friendly User Interface
• High reliability
• Auto-alarm
• Single camera with four magnifications
• Automatically or Manually Measures the Indentation Diameters

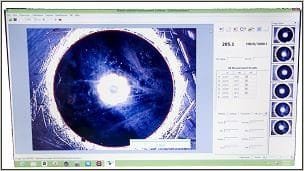

The Optical Brinell Hardness Video Measurement System is a friendly user interface and it has the automatic measurement with a keystroke or a click of a button. Test results can be manually generated or corrected with a single mouse drag move.

High-reliability advanced image processing and analysis technologies in automatic measurement. Field-proven under severe sample surface conditions.

Single camera with four magnifications 1.3M pixel CMOS USB camera with two camera tubes with each tube height having two magnifications. The full measurement range is covered with four magnifications for better measurement accuracy. Specifically, tube 1 magnification #1 is suitable for indentation diameters 3-6mm, magnification #2 for 0.8-1.6mm, while tubing 2 magnification #3 for 2-4mm, and magnification #4 for 1-2mm.

Optical Brinell Hardness Video Measurement System includes the basic functions of an imaging system such as image capture, camera calibration, image processing, geometric measurement, document labeling, and album management; automatically or manually measures the indentation diameter and calculates the Brinell hardness (HB) value; HB2 (DIN 1605 standard) automatic measurement: Automatically or manually measures the indentation diameters on the calibration sample and the test sample, and automatically interpolates the Brinell hardness (HB) value for the test sample; Converts Brinell (HB) to other hardness scales-Validates the test results with sample dimensions; automatically updates the statistical values such as average, min and max, standard deviation, Cp and Cpk; Auto-alarm automatically marks the out of spec measurements; Test report: Automatically generates customizable WORD or EXCEL report.
