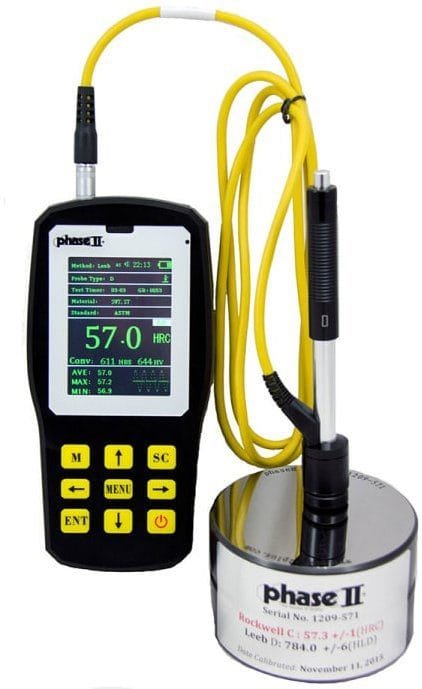

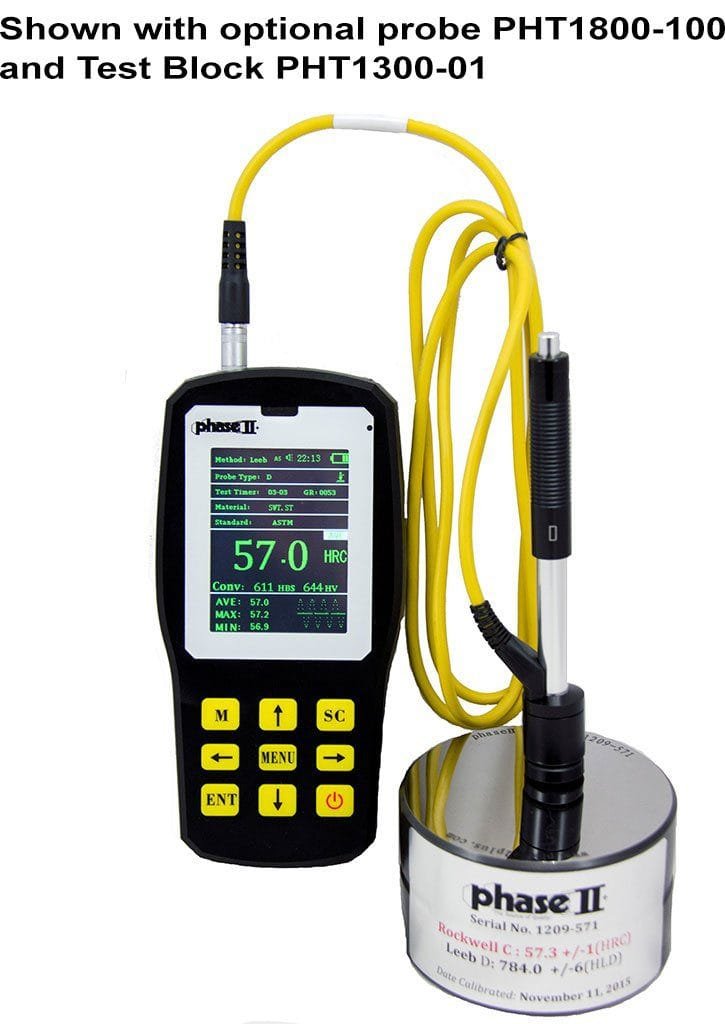

Phase II+ PHT-6011 – Ultrasonic Hardness Tester with Long 1kg Probe

• Ultrasonic Hardness Tester with Long 1kg Probe(manual)
• Non-Destructive handheld portable hardness tester
• Combines UCI and Leeb portable hardness testing in one state-of-the-art device
• Test steel with min thickness of .08” and unlimited max thickness (Other materials may have larger minimum thickness levels, depending on hardness)
• Blazing-fast test results

“Ultrasonic Contact Impedance” is based on a 136-degree diamond at the end of a vibrating rod being depressed into the test surface at a fixed load. The difference in Ultrasonic vibration frequency is then calculated into a hardness value. The UCI portable hardness tester procedure is slower than the Dynamic Impact style. However, the “UCI” method of hardness testing is portable, easy, and accurate. It also has its own advantages when utilized for certain testing applications. UCI portable hardness testers are not restricted to large mass items like dynamic type testers. These portable hardness testers can test metals as thin as 2mm and at a hardness value as low as 20HRC (75HB). They also excel at performing hardness tests on larger, harder metals as well. Another reason for the rise in popularity is due to the fact that the UCI method is categorized as “Non-Destructive.” That translates into fewer scrap parts/ lower mfg costs due to necessary inspections.

“Dynamic Impact” is based on the Leeb principle of portable hardness, developed by Dietmar Leeb in the 1970s. A spring-loaded impact body is thrust to the test surface, affecting rebound. The speed of both the initial thrust and the rebound is measured in a non-contact mode. This is calculated as a Leeb hardness value and then automatically converted to Rockwell C, B, Brinell, Vickers, and Shore Values. It has effectually brought easy, fast, and accurate results to portable hardness testing.
