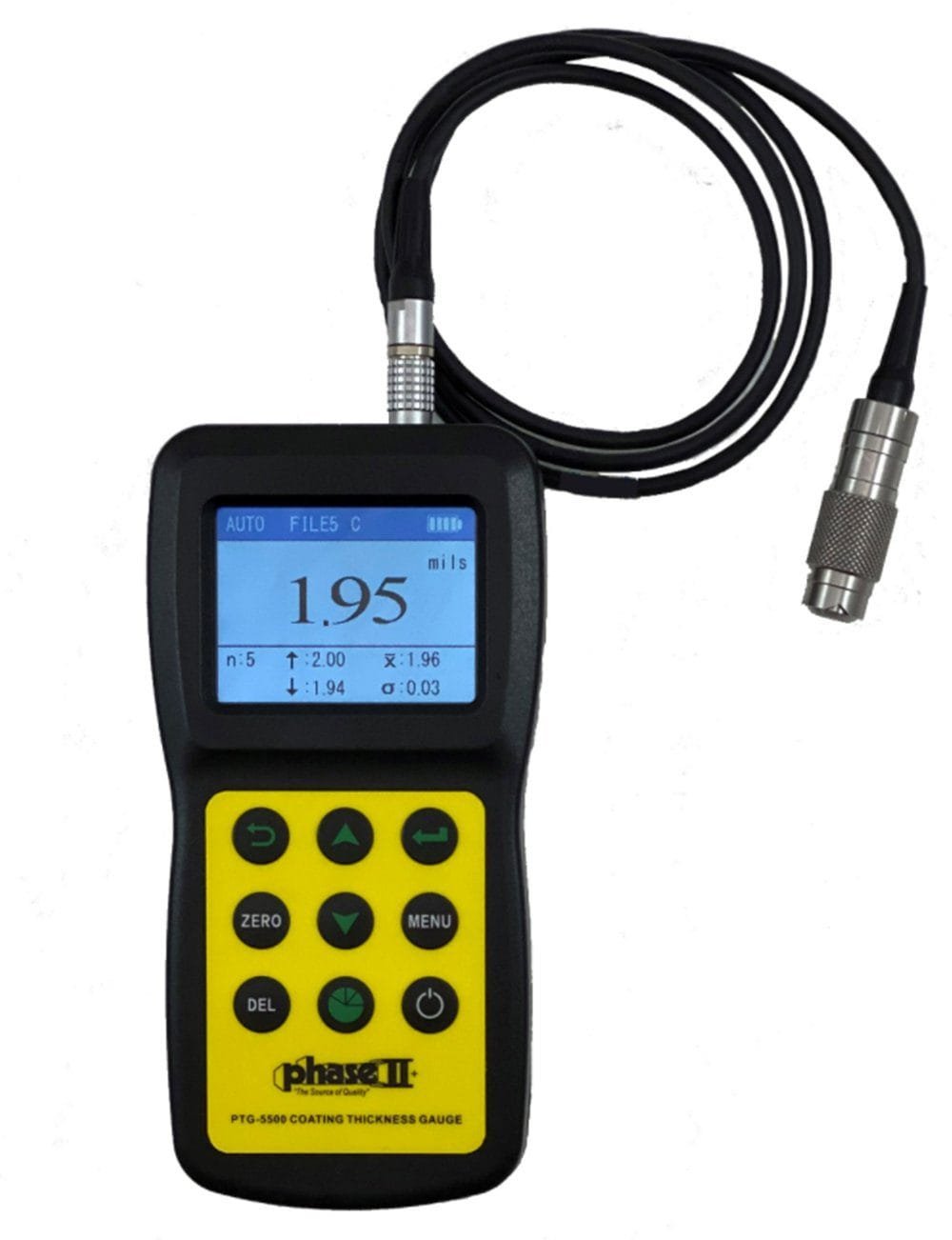

Phase II+ PTG-5500 – Coating Thickness Gage w/Auto-Detect Probe

• Two measuring modes: single or continuous (Scan mode) (selectable)
• Automatic Temperature compensation: compensates for the measurement distortion caused by the change in temperature
• Displays five statistical values: average (MEAN, maximum (MAX), minimum (MIN), measure number (No.), and standard deviation (S.DEV)
• Calibration: Simple 1-step calibration using a supplied metal plate and reference shims
• Data storage: close to 500 measurements in memory. (99 measurements/group x 5 groups) Includes data output software and cable

The PHASE II PTG-5500, coating thickness gauge can perform two different methods of calculating coating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction.

Coating thickness testing performance is both non-destructive and extremely accurate.

With this state-of-the-art coating thickness gauge, you can easily detect the thickness of the nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect probe.

The PTG-5500 coating thickness gauge can be used in many areas of industry, including automotive auctions, manufacturing, general engineering, commercial inspection, etc.
