Phase II+ SRG-2200 – Surface Roughness Tester with Bluetooth Data Output, 1.14″ IPS TFT

• Roughness parameter: Ra, Rq, (ISO), Rt, Rz (DIN)
• 1.14″ IPS TFT display type
• Data output via Bluetooth
• High accuracy, a wide range of application

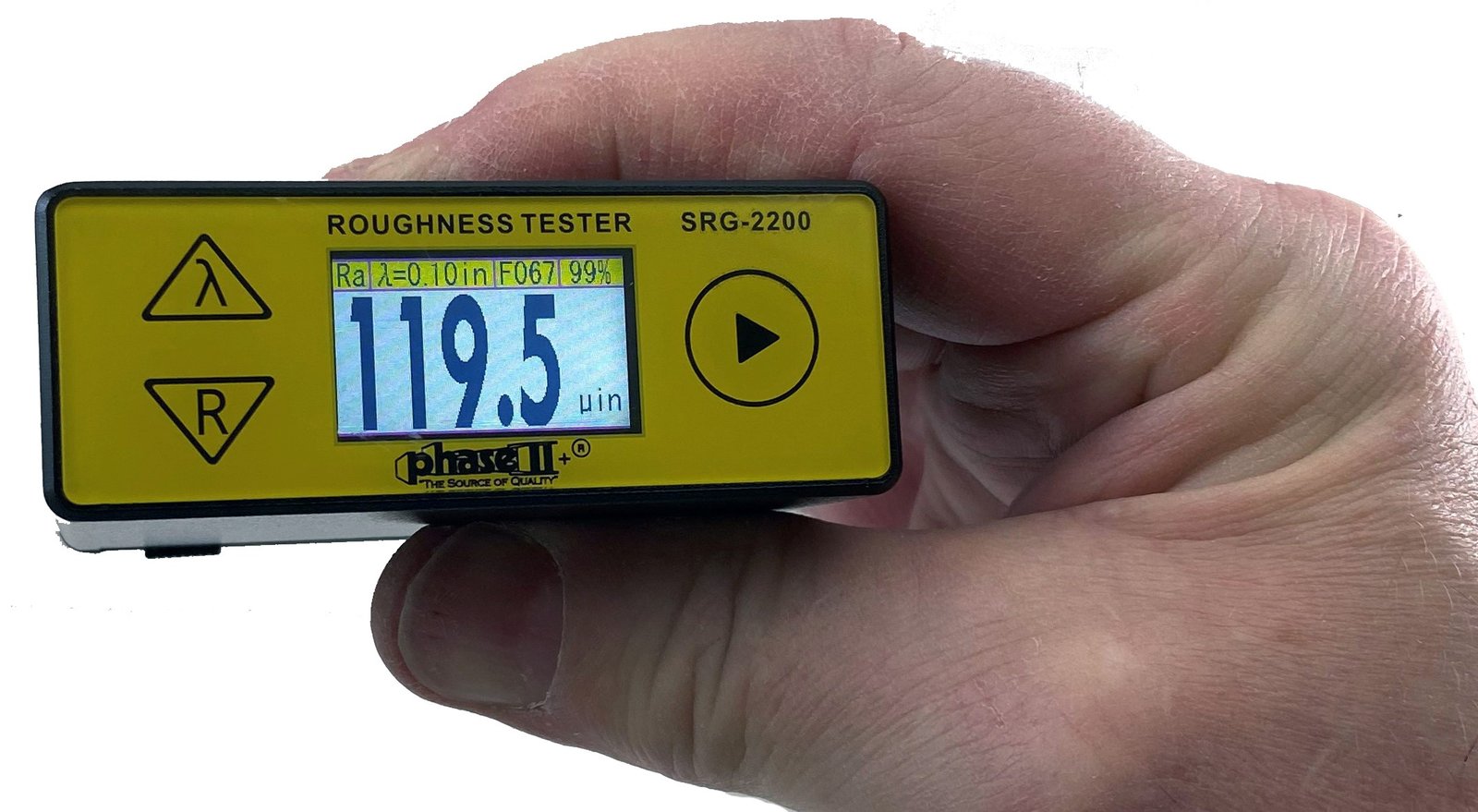

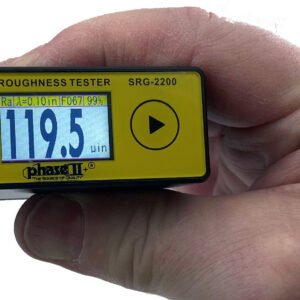

The New Phase II SRG-2200 Mini Surface Roughness Tester is the next generation of surface roughness tester developed by the Phase II Metrology Group that features high accuracy, a wide range of applications, simple operation, and stable performance. It is widely applicable in surface roughness testing all kinds of metals and non-metals.

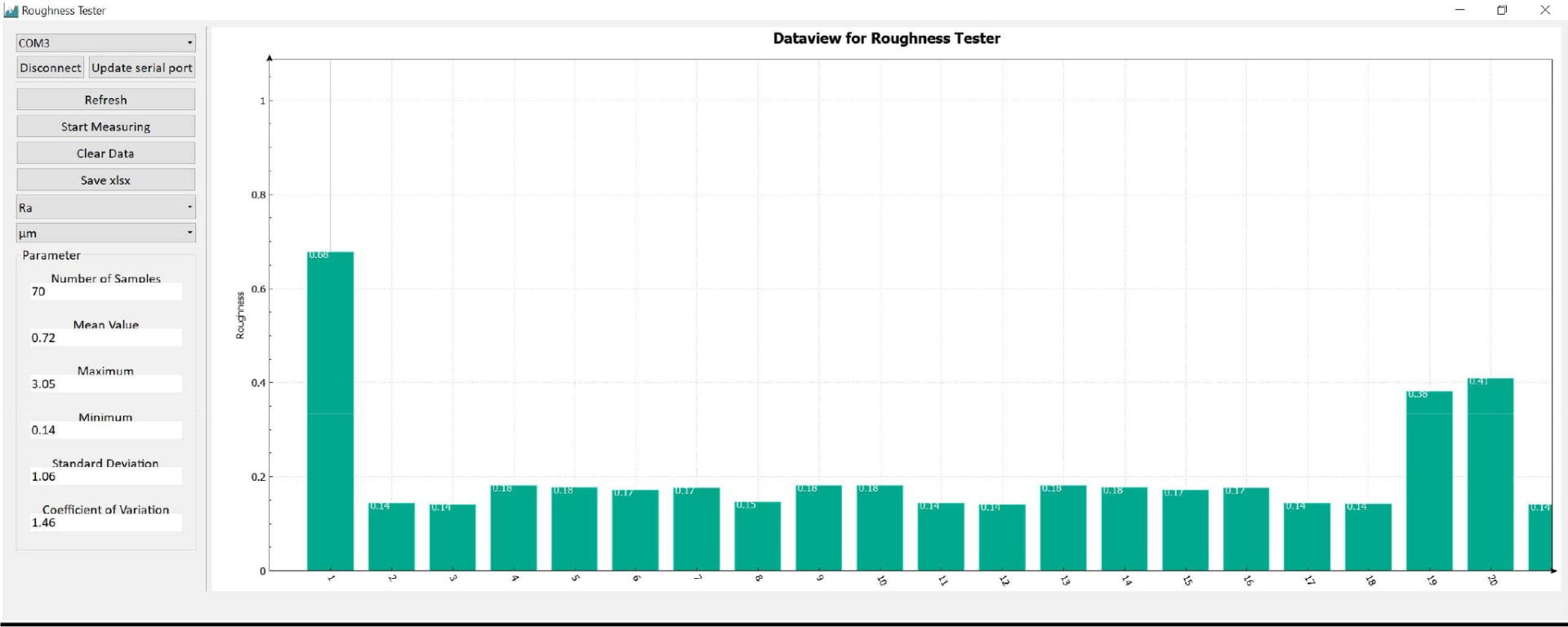

Large memory with data output via Bluetooth.

The 1.14″ IPS TFT display shows the choice of surface roughness parameters Ra, Rz, Rq, and Rt at the touch of a button, combined with the selected cutoff length. External calibration of the surface roughness value is possible by means of a built-in calibration feature which makes adjustment of this instrument very easy. Data output via Bluetooth makes saving surface roughness results fast and easy.

The easy-to-use SRG-2200 surface roughness tester operates on various surfaces, not only flat but also an outer cylinder, outer cone, grooves, and recesses greater than 80x 30mm. The areas of application are widespread. It is suitable for inspection departments, quality control, on the shop floor during machining, during assembly, and on-site.
