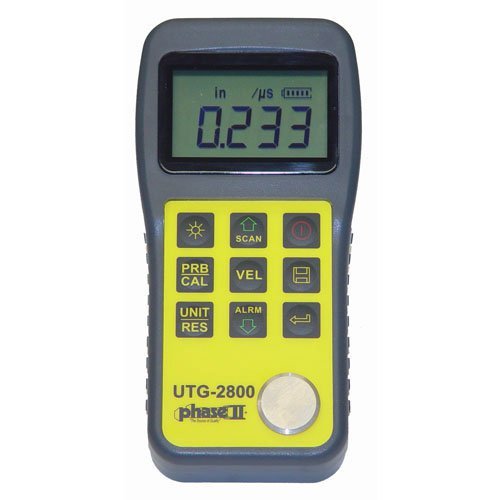

Phase II+ UTG-2800 Multi-Function Ultrasonic Thickness Gauge
12 people are viewing this product right now
Original price was: $874.50.$746.52Current price is: $746.52.
Shipping calculated at checkout.
Estimated delivery:5 days
Ultrasonic Thickness Multi-Function
- Designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces
- This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities
Guarantee Safe and Secure Payment Checkout
Description

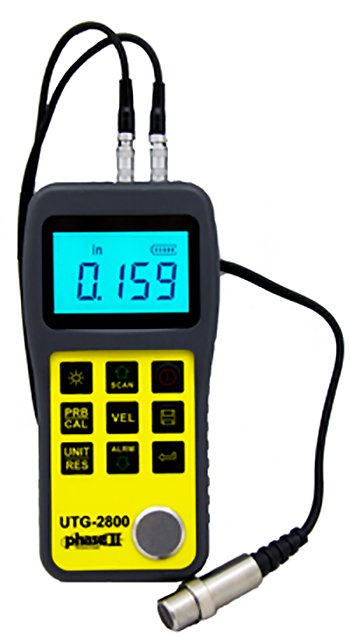

Phase II+ UTG-2800 – Multi-Function Ultrasonic Thickness Gauge
- Designed to measure the thickness of metallic and non-metallic materials
- Packed with features typically found on high end models only
- Backlit 4-digit LCD Display
- Display readings in either inch or millimeter
The Phase II UTG-2800 Ultrasonic Thickness Gauge is packed with features typically found on high end models only. The Phase 2 UTG2800 multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. With it’s dynamic ultrasonic thickness gauge, the Phase II UTG2800 is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The Phase 2+ UTG-2800 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.
The highly innovative gauge design features an intuitive interface that makes setup and operation easy. Simply calibrate the gauge to a known thickness or sound velocity and begin taking measurements. Unit accurately displays measurement results in either inch or millimeter.
Phase II Ultrasonic Thickness Gauge Comparison
| Model | UTG-1500 | UTG-2800 | UTG-2900 | UTG-4000 | UTG-2650 |
| Probe Type | 5 MHz Dual Element | 5 MHz Dual Element | 5 MHz Dual Element | 5 MHz Dual Element | Single Delay Line |
| Mode | Single Echo | Single Echo | Single Echo & Multiple Echo | Single Echo & Multiple Echo | Single Echo & Multiple Echo |
| Measurement Range | 0.05” to 8.0” | 0.04″ to 12.000″ | Single Echo: 0.03″ to 23.000″ Mult. Echo: 0.118” – 3.50” Steel (up to 35mil coating) | Single Echo: 0.02″ to 20.000″ Mult. Echo: 0.118” – 3.50” Steel (up to 35mil coating) | Single Echo: 0.059″ to .787″ Mult. Echo: 0.012” – 0.394” |
| Thru-Paint Capability | No | No | Yes | Yes | No |
| Adjustable Sound Velocity | Yes | Yes | Yes | Yes | Yes |
| A-Scan/B-Scan | No | No | No | Yes | No |
| Memory/Data Output | No | Yes: 20 groups (up to 99readings/group) / USB | Yes: 20 groups (up to 99readings/group) / USB | Yes: 20 groups (up to 99readings/group) / USB | Memory: 500 values / No Output |
| Measurement Rate – Normal | 3 readings/sec | 4 readings/sec | 4 readings/sec | 4 readings/sec | 4 readings/sec |
| Measurement Rate – Scan | N/A | 10 Readings/sec | 16 Readings/sec | 16 Readings/sec | N/A |
| Resolution | 0.001″ / 0.01 mm | 0.001″ / 0.01 mm | 0.001″ / 0.01 mm | 0.001″ / 0.01 mm | 0.001″ / 0.0001″ Selectable |
| Accuracy | .5%+.2mm | .5% +0.001″ | .5%+0.001″ | 0.001”(up to 0.984”) 0.007”(up to 3.03”) 0.019”( 4” and above) | 0.0002″ (below 3mm) 0.002″ (if below 20mm) |
| Gage Dimensions | 161x69x32mm | 150x74x32mm | 150x74x32mm | 153x76x37mm | 149x73x42mm |
| Weight (without batteries) | 10.5oz. | 8.6 oz. | 8.6 oz. | 9.9 oz. | 5.6 oz. |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| List Price | $595.00 | $795.00 | $995.00 | $2,895.00 | $1,995.00 |
Product General Attributes | |
|---|---|
| Warranty | 5 YEARS |
| Product Weight | 245 GRAMS (0.540 LBS) |
| Product Height | 33 MM (1.30 IN) |
| Product Length | 150 MM (5.91 IN) |
| Product Width | 74 MM (2.91 IN) |
| HTS/Schedule B Number | 9031.80.8085 |
| ECCN Number | EAR99 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
