Phenix 46CP100/120-3.75/10-230 100kVAC 37.5mA / 120kVDC 10mA AC/DC Dielectric Test Hipot w. Cart (230V)
9 people are viewing this product right now
$38,434.00
Shipping calculated at checkout.
Estimated delivery:5 days
100kVAC 37.5mA / 120kVDC 10mA AC/DC Hipot* w. Cart
- 100kVAC 37.5mA / 120kVDC 10mA AC/DC Hipot w. Cart (230V)
- Circuit breaker protection
- External interlock provision
- High voltage On/Off push buttons with indicator
- Zero Start Interlock
- Manual control of output voltage
- Adjustable overload circuit
- Slow and fast-acting transient protection on all meters and relays
- Digital timer with audible alarm
- Emergency Off push button with key lockout
- Guard mode for accurate current measurements
- Output overload indicator with reset switch
- Direct metering of the output
Guarantee Safe and Secure Payment Checkout
Description
Phenix 46CP100/120-3.75/10-230 AC/DC Dielectric Test Sets
- 100kVAC 37.5mA / 120kVDC 10mA AC/DC Hipot w. Cart (230V)
- Circuit breaker protection
- External interlock provision
- High voltage On/Off push buttons with indicator
- Zero Start Interlock
- Manual control of output voltage

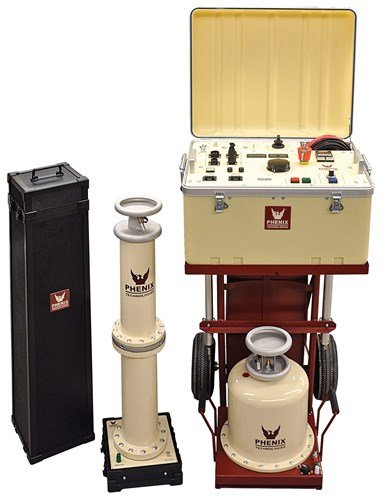

Perform both AC and DC dielectric testing of a wide range of electrical apparatus with Phenix Technologies 46CP series AC/DC Hipots. The mobile 3-piece design with hand cart is ruggedly constructed and simple to set-up and operate.
Options
- KVM Metering Head – turns High Voltage Divider into fully functional 100kV AC/DC Kilovoltmeter with specifications as described in Phenix Technologies.
- Positive polarity output (must be specified when ordering)
- Model GS100-2 (100kV) or GS160-2 (160kV) Ground Stick, 2-piece design with 25′ (7m) ground lead
- Model GS30 (30kV) Ground Stick, single piece design with 25′ (7m) ground lead
- Model DS100-2 (100kV, 100kΩ, 50kJ) Discharge Stick, 2-piece design with 25′ (7m) ground lead
- Model GSDS-30 (30kV) Combination Ground/ Discharge Stick with 25′ (7m) ground lead
Environmental Conditions
- 10-40°C, indoor/outdoor in fair weather
- Humidity <95% non-condensing
- Altitude <3300 ft (1000 meters)
Testing Applications
- Mobile 3-piece design with hand cart
- Ruggedly constructed for both indoor and outdoor use
- Simple set-up and operation
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | AC, DC |
| Max AC Test Voltage | 100 kV |
| Max DC Test Voltage | 120 kV |
| Min AC Test Voltage | 0 V |
| Min DC Test Voltage | 0 V |
| Max Trip Current AC Test | 10 mA |
| Min Trip Current AC Test | 0 mA |
| Max Trip Current DC Test | 10 mA |
| Min Trip Current DC Test | 0 mA |
| Programmable (hipot) | Yes |
| Insulation Resistance Test | No |
| Connection Type | Probe |
| Arc Detection | No |
| Scanning control capable for Multipoint Testing | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.33.0080 |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | 120V 50/60 Hz, 220V Only, 240V Only |
| Country of Origin | United States |
