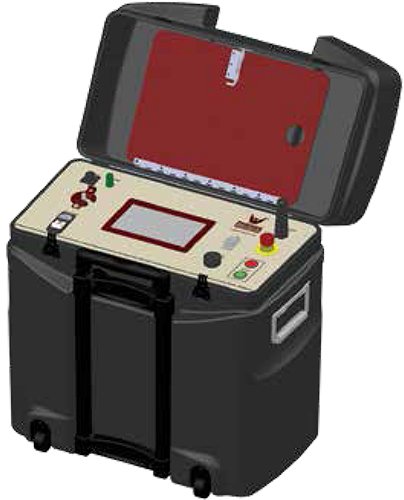

Phenix 475-20B Portable DC Hipot with 7″ Touch Screen Display
35 people are viewing this product right now
$14,795.00
Shipping calculated at checkout.
Estimated delivery:4 days
75kVDC 20mA Hipot with 7″ Touch Screen Display
- 75kVDC 20mA Hipot with 7″ Touch Screen Display
- Manual or Automatic output voltage raise/lower
- Adjustable rate of voltage rise
- Adjustable overcurrent trip point
- Communications port for data acquisition
- Status bar for system messages
- Warning circuit
- 7″ Full-color touch-screen display
- Breakdown memory voltmeter
- Auto ranging Meter for Voltage, up to 4 digits displayed
- Auto-ranging Meter for Total Current up to 5 digits displayed
- Auto-ranging Meter for Guard Current up to 5 digits displayed. Accuracy of ± (0.5% of reading +LSD)
- Maximum voltage reached memory indicator
- Duration and Dwell Timers
- Zero Start interlock
- Insulation Resistance calculation
- Locking E-Stop button
- USB port for data extraction
- Return lead safety retention clip
- Shielded guard measurement lead
Guarantee Safe and Secure Payment Checkout
Description
Phenix 475-20B Portable DC Hipot with 7″ Touch Screen Display
Portable DC Hipot
- Adjustable rate of voltage rise
- Manual or Automatic output voltage raise/lower
- USB port for data extraction
The Phenix 475-20B Portable DC Hipot (75kVDC 20mA) with 7″ Touch Screen Display is designed to perform accurate testing of electrical switchgear, cables, motors, generators, and protective equipment. This model features touch screen display, auto-ranging meters, automated operation, and data acquisition. It includes a separate always active internal guard mode and will calculate insulation resistance continuously. Additional safety features include an instantaneous and thermal overload protection for the operator and the test object. The proven and rugged design coupled with precision metering and ease of use have made Phenix DC hipots the optimal choice.
The high voltage is generated by a filtered high voltage doubler circuit, that is purpose built by Phenix for the exacting demand of high voltage testing. A solenoid operated discharge switch quickly discharges the load after testing. All high voltage components are housed in an oil filled aluminum sealed grounded dead tank. A shielded high voltage lead allows the operator to safely connect the high voltage output to the test object. The high mA charging current, which is standard with all Phenix DC Hipots allows the operator to quickly and efficiently charge large capacitive loads.
In the standard series the precision metering measured off the high voltage output indicates the output voltage and leakage current on large easy to read digital meters. An analog meter is provided for reading charging current.
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | DC |
Product General Attributes | |
| Product Weight | 59 LBS |
| Product Height | 21.5 IN |
| Product Length | 22 IN |
| Product Width | 14 IN |
| Shipping Weight | 69 LBS |
| HTS/Schedule B Number | 9030.33.0080 |
| Country of Origin | United States |
| Shipping Height | 24 IN |
| Shipping Length | 22 IN |
| Shipping Width | 14 IN |
You must be logged in to post a review.
Manuals/Guides
Brochures
| Weight | 59 lbs |
|---|---|
| Dimensions | 22 × 14 × 21.5 in |
