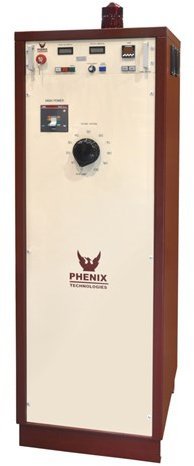

Phenix 610-2P-230 AC Hipot Tester
16 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
10kVAC, 200 mA, AC Hipot (120V)
- 10kVAC, 200 mA, AC Hipot (230V)
- One-piece design
- Circuit breaker protection
- External interlock provision
- External warning circuit provision
- Latching HV On/Off push buttons
- Zero Start Interlock
- Manual control of output voltage
- Adjustable overload circuit
- Slow and fast-acting transient protection on all meters and relays
- Digital Meters (3 1/2 digit LCD display)
- Digital Timer with audible alarm
- Emergency Off push button
- Output overload indicator with reset switch
Guarantee Safe and Secure Payment Checkout
Description
Phenix 610-2P-230 AC Hipot
- 10kVAC, 200 mA, AC Hipot (230V)
- Circuit breaker protection
- External interlock provision
- External warning circuit provision
- Latching HV On/Off push buttons
- Zero Start Interlock
- Manual control of output voltage
- Adjustable overload circuit
The Phenix line of 5 kV-15 kV AC Hipots offer a completely integrated, easy-to-use high voltage AC supply. The air insulated high voltage transformer, controls and regulator are housed either in a painted steel benchtop enclosure or for the larger units in a free-standing steel enclosure.
All units are equipped with standard safety features such as circuit breaker protection, adjustable output overloads, external interlock provisions, and zero start interlock. The digital meters display a direct reading of the output voltage and current. The output voltage is completely adjustable from near zero to 100% of output via a rugged and reliable variable auto transformer.
These AC dielectric test systems are ideally suited for dielectric testing up to 15kVAC within a wide variety of applications.
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | AC |
| Max AC Test Voltage | 10 kV |
| Min AC Test Voltage | 0 V |
| Max Trip Current AC Test | 200 mA |
| Insulation Resistance Test | No |
| Connection Type | Probe |
| Arc Detection | No |
| Scanning control capable for Multipoint Testing | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Height | 21.00 IN |
| Product Length | 18.00 IN |
| Product Width | 24.00 IN |
| HTS/Schedule B Number | 9030.33.0080 |
| Country of Origin | United States |
| Shipping Height | 21.00 IN |
| Shipping Length | 18.00 IN |
| Shipping Width | 24.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 18 × 24 × 21 in |
|---|
