Phenix 6CB30/15-3-230 Field and Lab AC Dielectric Test Sets
28 people are viewing this product right now
$14,916.00
Shipping calculated at checkout.
Estimated delivery:5 days
30Kvac, 100mA / 15kVAC, 200mA (50% Comp., 230V) With 7″ Full-Color Touch Screen Display, Auto-Ranging Voltage
- Output range: 15 kV, 200 mA / 30 kV, 100 mA
- Lightweight and ruggedly constructed for years of field use
- Simple set-up and operation
- Low partial discharge output
- ISO17025 calibration upon request
- Fully automated with data acquisition
- 7″ Full-color Touch-screen Display
- Auto-ranging meters for voltage and current
- Breakdown memory voltmeter
- Maximum voltage reached memory indicator
- Duration and Dwell timers
- Zero Start interlock
- Motorized voltage Raise/Lower with Infinity Dial
- Adjustable-rate of voltage rise in v/s
- Adjustable overcurrent trip point
- Communications port for data acquisition
- Status bar for system messages
- Warning circuit
- Emergency Off pushbutton
- Circuit protection
- High voltage On/Off pushbuttons
- Automatic voltage control
- Data logging to USB via CSV file
Guarantee Safe and Secure Payment Checkout
Description
Phenix 6CB30/15-3-230 Field and Lab AC Dielectric Test Sets
Complete Test System
- Simple set-up and operation
- Fully automated with data acquisition
- 7″ Full-color Touch-screen Display

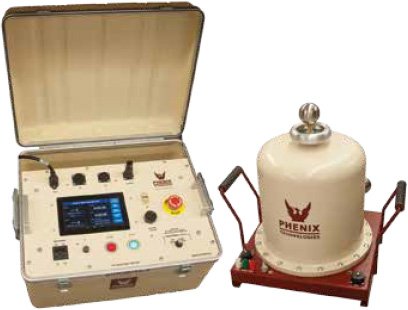

The Phenix 6CB30/15-3-230 is a complete test system in a mobile package, simple to set-up and operate, lightweight and ruggedly constructed. It consists of a combination control and regulator enclosure and a high voltage section. It features a touch screen display with auto-ranging meters, automated operation, and data acquisition. The 6CB30/15-3-230 offers an output range of 15 kV, 200 mA / 30 kV, 100 mA.
This portable rugged line of AC high voltage test equipment is ideally suited for use in the field or in the laboratory. The 6CB30/15-3-230 is equipped with a 7″ Full-Color Touch-Screen display with auto-ranging voltage and current meters plus many other additional features.
High-quality design and construction
The Metering Guard Mode allows accurate measurements of the high voltage test specimen leakage current by bypassing stray capacitive currents. The high voltage section consists of a specially designed oil insulated high voltage transformer characterized by the use of an isolating cylindrical housing mounted on a rugged steel base. The high voltage output is equipped with a corona free aluminum shielding electrode. The high-quality design and construction is key to the superior partial discharge performance of this model.
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | AC |
Product General Attributes | |
| Product Weight | 114 LBS |
| Product Height | 11.25 IN |
| Product Length | 16.5 IN |
| Product Width | 15.25 IN |
| Shipping Weight | 120 LBS |
| HTS/Schedule B Number | 9030.33.0080 |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
| Weight | 114 lbs |
|---|---|
| Dimensions | 16.5 × 15.25 × 11.25 in |
