Phenix Technologies – 10kVAC, 1A, AC Hipot (230V)

Phenix Technologies 610-5P – 10kVAC, 1A, AC Hipot (230V)

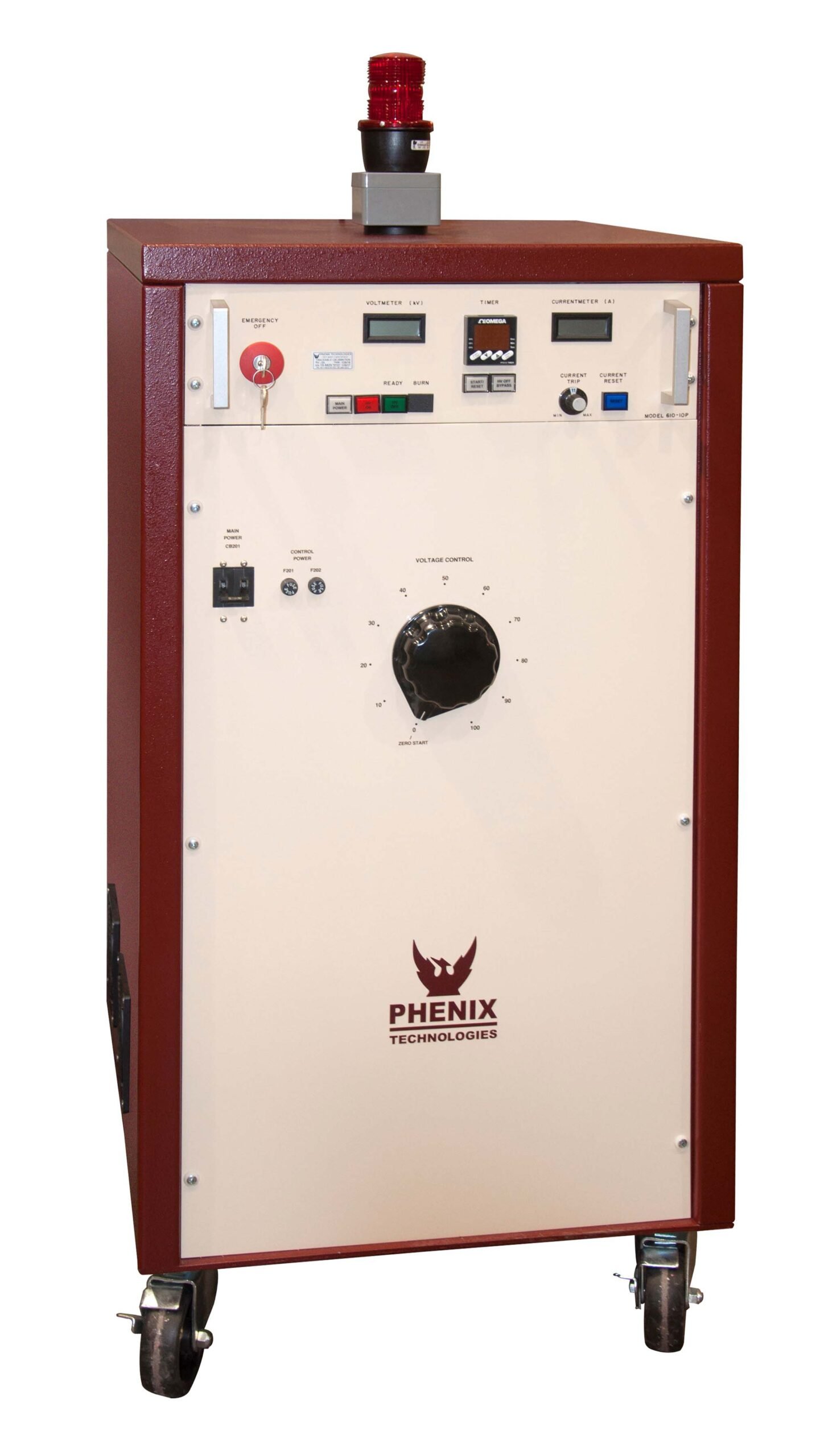

The Phenix line of 5 kV-15 kV AC Hipots offer a completely integrated, easy-to-use high voltage AC supply. The air insulated high voltage transformer, controls and regulator are housed either in a painted steel benchtop enclosure or for the larger units in a free-standing steel enclosure.

All units are equipped with standard safety features such as circuit breaker protection, adjustable output overloads, external interlock provisions, and zero start interlock. The digital meters display a direct reading of the output voltage and current. The output voltage is completely adjustable from near zero to 100% of output via a rugged and reliable variable auto transformer.

These AC dielectric test systems are ideally suited for dielectric testing up to 15kVAC within a wide variety of applications.


Options

• Flashing Light
• Safety Foot Switch
• Custom cable lengths
• Burn Feature:
  • The Burn Feature is a current limiting device that is connected in series with the primary winding. This feature offers the ability to burn the faults in the test specimen at a controlled current level. The Burn Feature is available with rating listed above.

Environmental Conditions

• 10-40°C, indoor/outdoor in fair weather
• Humidity <95% non-condensing
• Altitude <3300 ft (1000 meters)

Testing Applications

• Suitable for AC dielectric and insulation testing up to 15 kV on all types of electrical products such as motors, cables, switchgear, bushings, capacitors, fuses, and arrestors
• Complies with UL, CSA, OSHA, NEMA, IEC, AEIC, EPCEA, IEEE, ASTM and other applicable testing standards
