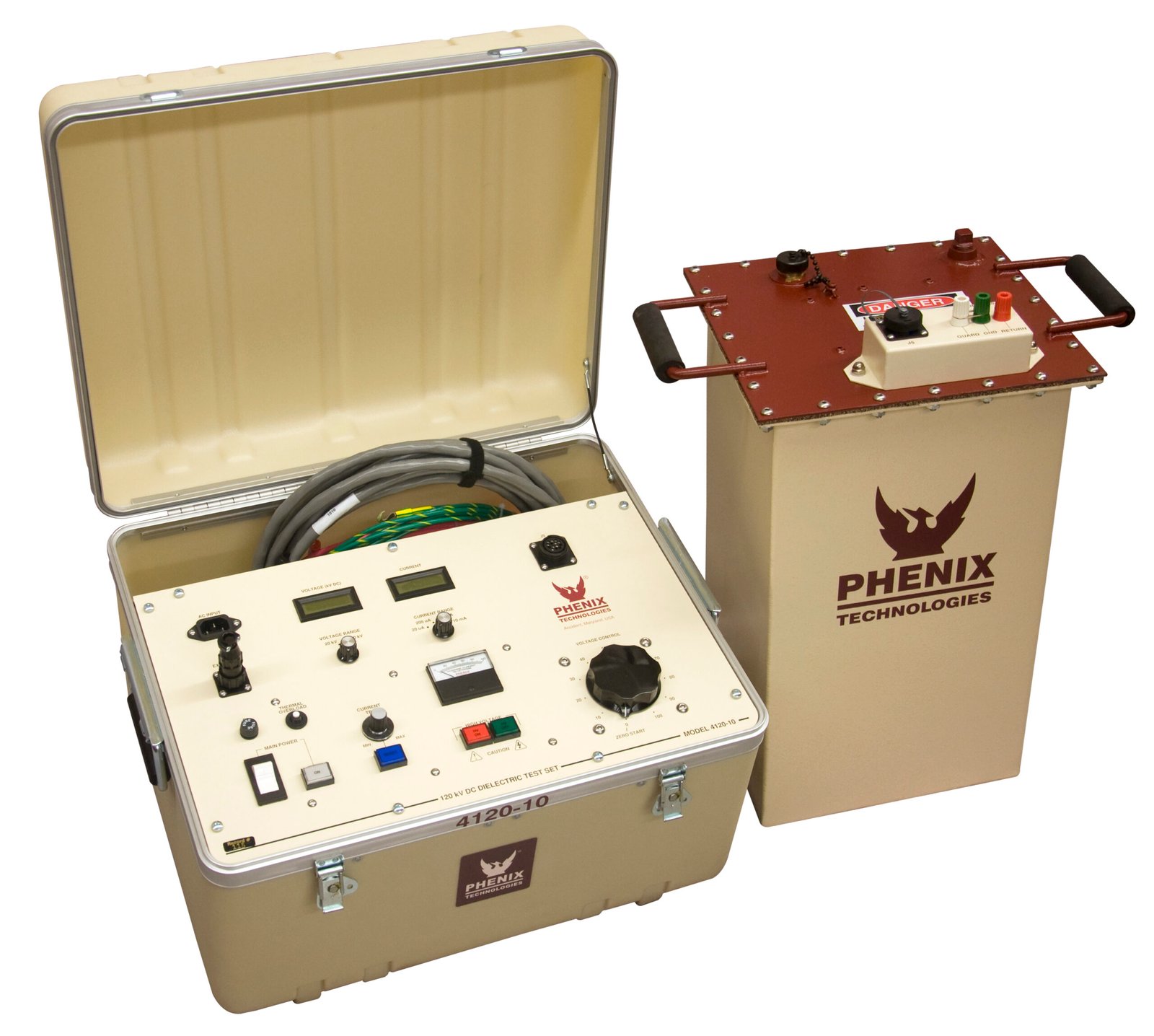

Phenix Technologies 4120-10 120 kVDC Portable DC Hipot
23 people are viewing this product right now
$15,180.00
Shipping calculated at checkout.
Estimated delivery:5 days
120 kVDC 10mA Hipot (120V)
- 120 kVDC 10mA Hipot
- High voltage On/Off push buttons with indicators
- Circuit breaker protection
- External interlock provision
- Digital multi-range metering
- Very low ripple, <2% RMS at full output
- Zero Start interlock
- Thermal resettable overload protecting high voltage transformer primary circuits.
- Guard mode for accurate current measurements
- Manual control of output voltage
- Adjustable overload circuit with indicator and reset switch
- Slow and fast-acting transient protection on all meters and relays
- Built-in discharge circuit
- Meters calibrated with standards certified by NIST. A traceable sticker is affixed to the faceplate.
- Filtered voltage doubler circuit, equivalent to full wave rectification
- Cable storage provision
Guarantee Safe and Secure Payment Checkout
Description
Phenix Technologies 4120-10 120 kVDC Portable DC Hipot
- 120 kVDC 10mA Hipot
- Circuit breaker protection
- External interlock provision
- High voltage On/Off push buttons with indicators
- Zero Start interlock
- Manual control of output voltage
Phenix Technologies offers a line of portable 40-200 kV DC Hipots with many advanced features including high accuracy digital meters, analog charging current meter, adjustable over current, and high output current ratings.
The high voltage is generated by a filtered high voltage doubler circuit, that is built by Phenix for this application.
A solenoid operated discharge switch quickly discharges the load after testing. All high voltage components are housed in an oil filled aluminum sealed grounded dead tank. A shielded high voltage lead allows the operator to safely connect the high voltage output to the test object. The high mA charging current, which is standard with all Phenix DC Hipots allows the operator to quickly and efficiently charge large capacitive loads.
The precision metering measured off the high voltage output indicates the output voltage and leakage current on large easy to read digital meters. An analog meter is provided for reading leakage current.
Additional safety features include an instantaneous and thermal overload protection for the operator and the test object.
The proven and rugged design coupled with precision metering and ease of use have made Phenix DC hipots the optimal choice.
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | DC |
| Max DC Test Voltage | 120 kV |
| Min DC Test Voltage | 0 V |
| Max Trip Current DC Test | 10 mA |
| Programmable (hipot) | No |
| Insulation Resistance Test | No |
| Connection Type | Probe |
| Arc Detection | No |
| Scanning control capable for Multipoint Testing | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 144 LBS |
| Product Height | 22 IN |
| Product Length | 12 IN |
| Product Width | 17.5 IN |
| Shipping Weight | 195 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.33.0080 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | 120V 50/60 Hz, 220V Only, 240V Only |
| Country of Origin | United States |
| Shipping Height | 31 IN |
| Shipping Length | 48 IN |
| Shipping Width | 30 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 144 lbs |
|---|---|
| Dimensions | 12 × 17.5 × 22 in |
