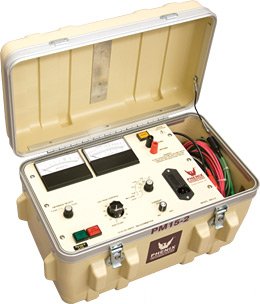

Phenix Technologies PM15-2 15kVDC Megohmmeter
44 people are viewing this product right now
$5,850.00
Shipping calculated at checkout.
Estimated delivery:4 days
15kVDC Hipot/Megohmmeter
- Integral megohmmeter measures insulation resistance up to 1,000,000 MOhms @ 5kV, 2,000,000 MOhms @ 10kV, and 3,000,000 MOhms @ 15kV.
- Output voltage is continuously variable to 15 kVDC
- Zero Start. Safety interlock
- Adjustable overcurrent trip point
- Large easy-to-read analog meters
- Fully regulated output voltage
- Internal short circuit protection
- Illuminated pushbutton Guard Mode selection bypasses stray or unwanted leakage current
- Integrated cable storage bin
- Light weight, rugged design
- Off Zero and overcurrent trip buzzer
- Made in the USA
Guarantee Safe and Secure Payment Checkout
Description
The PM15-2 is built with the most advanced high voltage technology available. The combination DC Hipot/high voltage Megohmmeter makes the PM15-2 extremely versatile and thus valuable for field or in-house applications. It incorporates a variable overcorrect trip circuit which will instantly de-energize the high voltage power supply if such a condition is encountered. The trip setting can be as low as 10% or as high as approximately 110% of full scale reading. Overcurrent trip is indicated by an audible alarm. The unit will go into current limiting state at approximately 110% of full current output rating. Designed with the technician in mind, the PM15-2 utilizes the latest in switching power supply technology which produces less ripple (.4% pk-pk at full output) and brings the total weight of the unit down to an incredible 15lbs (6.8 kgs).
Component Identification.
Key:
- Dual range voltmeter
- DC currentmeter and megohmmeter
- Return terminal
- Ground terminal
- Guard switch/lamp
- Fused receptacle for power line
- Trip setting adjust knob
- Selector switch for DC current and megohms
- Output voltage control
- High Voltage ON/OFF
- Power ON/OFF
- Voltmeter range
Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template | |
|---|---|
| IR Test Voltage | >10,000 V, 10,000 V, 5,000 V |
| Maximum Insulation Resistance | 3 G Ohms |
Safety Testing / Surge Testing/Hipot Tester Template | |
| Test Type Hipot | DC, IR |
| Max DC Test Voltage | 15 kV |
| Min DC Test Voltage | 0 V |
| Max Trip Current DC Test | 2 mA |
| Min Trip Current DC Test | 2 mA |
| Programmable (hipot) | No |
| Insulation Resistance Test | Yes |
| Connection Type | Probe |
| Arc Detection | No |
| Scanning control capable for Multipoint Testing | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 16 LBS |
| Product Height | 11.5 IN |
| Product Length | 18 IN |
| Product Width | 11 IN |
| Shipping Weight | 20 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.33.0080 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | 120V 50/60 Hz, 220V Only |
| Country of Origin | United States |
| Shipping Height | 16 IN |
| Shipping Length | 21 IN |
| Shipping Width | 15 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 16 lbs |
|---|---|
| Dimensions | 18 × 11 × 11.5 in |
