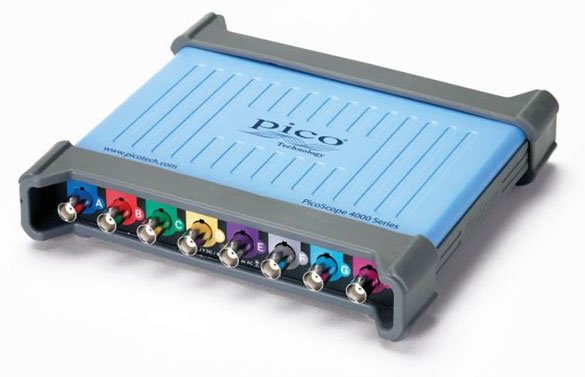

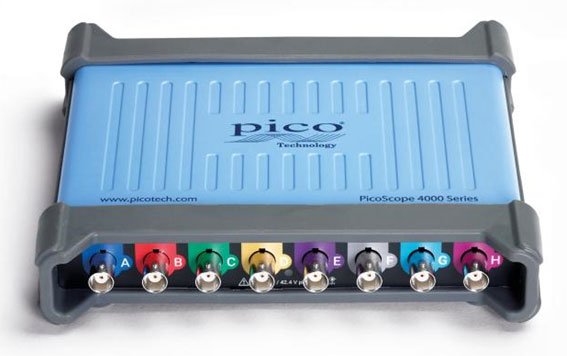

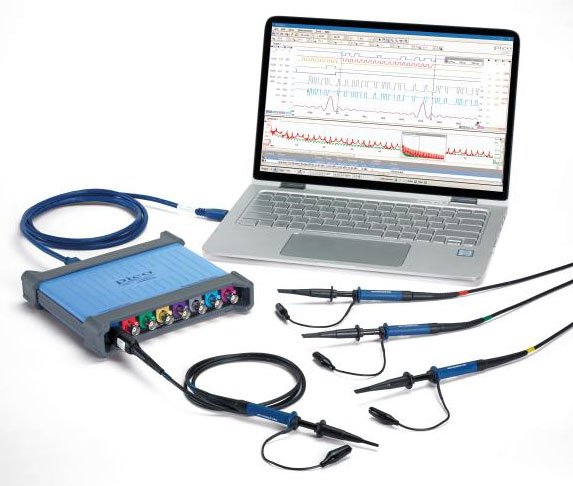

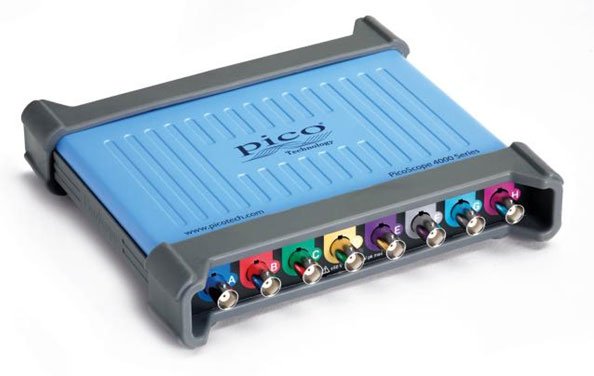

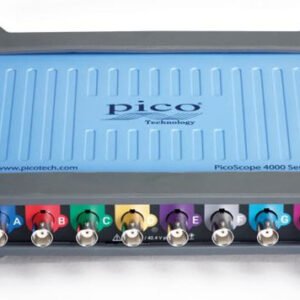

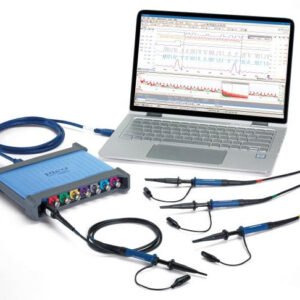

Pico Scope 4824A – 8 Channel 20 MHz Oscilloscope Kit with 4x TA375 Probes

Pico Scope 4824A – 8 Channel 20 MHz Oscilloscope Kit with 4x TA375 Probes

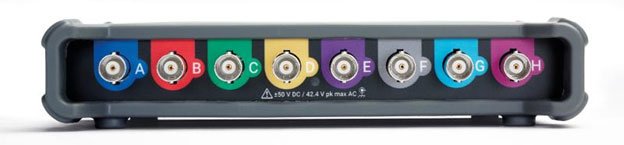

With the PicoScope 4000A Series providing a choice of either 2, 4, or 8 high-resolution analog channels you can easily view audio, ultrasonic, vibration, and power waveforms, analyze the timing of complex systems, and perform a wide range of precision measurement tasks on multiple inputs at the same time. The scopes have a small, compact footprint, yet the BNC connectors with a minimum 20 mm spacing still accept all common probes and accessories.

Despite their compact size, there is no compromise on performance. With a high vertical resolution of 12 bits, 20 MHz bandwidth, 256 MS buffer memory, and a fast sampling rate of 80 MS/s, the PicoScope 4000A Series has the power and functionality to deliver accurate results. With up to 8 channels, these oscilloscopes can analyze multiple serial buses such as UART, I2C, SPI, CAN, and LIN plus control and driver signals.

Why choose the PicoScope 4000A Series oscilloscopes?

The PicoScope 4000A Series provides 20 MHz bandwidth, low noise, 12-bit resolution, deep capture memory, and an integrated function and arbitrary waveform generator in a compact USB 3 connected PC-based package, together with a proven user interface. This series of oscilloscopes is especially suited to engineers, scientists, and technicians working on a wide range of electrical, mechanical, audio, lidar, radar, ultrasonic, NDT, and predictive maintenance systems who need to make precise measurements and analysis of repetitive or single-shot long-duration waveforms. The PicoScope 4000A Series is unlike conventional oscilloscopes with 8-bit resolution and limited capture memory or card-based digitizers that require an expensive mainframe and offers the following benefits:

• PicoScope 6 user interface with time- and frequency-domain waveform views
• Automatic measurements of important waveform parameters on up to a million waveform cycles with each triggered acquisition using DeepMeasure
• Decoding of 18 popular industry serial bus standards.
• An application programming interface that provides direct control of the hardware
• Five years warranty included as standard

PicoLog 6 software

The PicoScope 4000A Series oscilloscopes are also supported by the PicoLog 6 data logging software, allowing you to view and record signals on multiple units in one capture.

PicoLog 6 allows sample rates of up to 1 kS/s per channel, and is ideal for long-term observation of general parameters, such as voltage or current levels, on several channels at the same time, whereas the PicoScope 6 software is more suitable for waveshape or harmonic analysis.

You can also use PicoLog 6 to view data from your oscilloscope alongside a data logger or other device. For example, you could measure voltage and current with your PicoScope and plot both against temperature using a TC-08 thermocouple data logger, or humidity with a DrDAQ multipurpose data logger.
