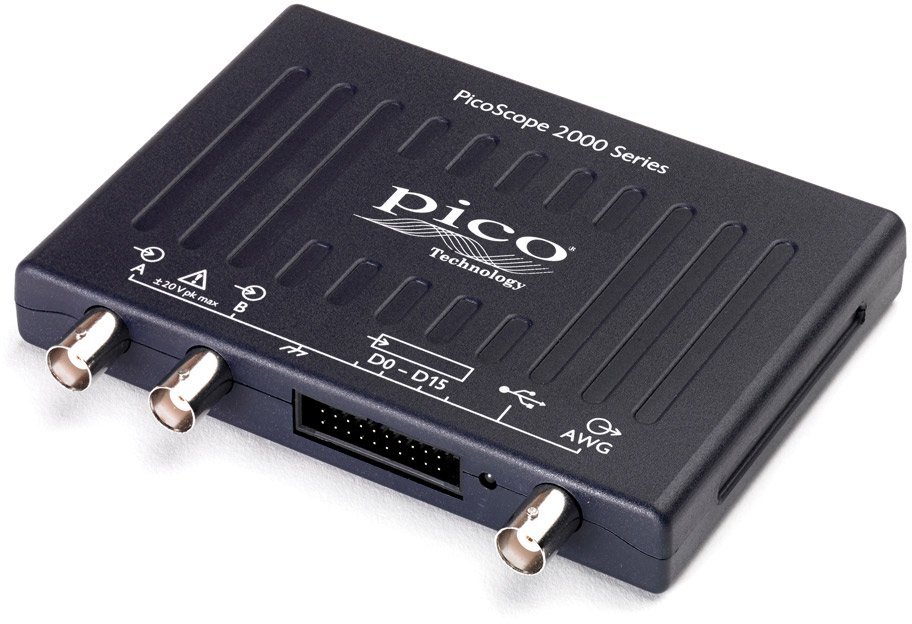

PicoScope 2205A MSO 2 channel + MSO (25MHz)

PicoScope 2205A MSO 2 channel + MSO (25MHz)

The PicoScope 2200A Series oscilloscopes offer a small, light, modern alternative to bulky benchtop devices. You can now fit a 200 MHz, 1 GS/s instrument easily in your laptop bag, or even in your pocket! They are perfect for engineers on the move; ideal for a wide range of applications including design, test, education, service, monitoring, fault-finding, and repair.

A small form factor is not the only benefit of these PC-based scopes. With our PicoScope 6 software, high-end features such as serial decoding and mask limit testing are included as standard. New functionality is regularly delivered through free upgrades.

Fast sampling

The PicoScope 2200A Series oscilloscopes provide fast real-time sampling rates up to 1 GS/s, equivalent to a timing resolution of only 1 ns. For repetitive signals, equivalent-time sampling (ETS) mode can boost the maximum effective sampling rate up to an incredible 10 GS/s, allowing even finer resolution down to 100 ps. All scopes support configurable length pre-trigger and post-trigger capture.

At slower sampling rates the oscilloscope can stream data continously across the USB link bypassing the on-board buffer memory. In this mode PicoScope can collect waveforms with as many as 100 million samples. This deep memory is ideal for long captures of serial data that can then be decoded using the included serial decoding tools.
