PIE 820 ELITE High Accuracy Multifunction Diagnostic Calibrator

PIE 820 ELITE High Accuracy Multifunction Diagnostic Calibrator

High Accuracy Multifunction Diagnostic Calibrator. Sources and reads mA, V, T/C, RTD, ohms and Frequency

• Use it as a milliamp and voltage calibrator
• Technician friendly operation
• Troubleshoot loop problems
• Checkout flow and vibration systems

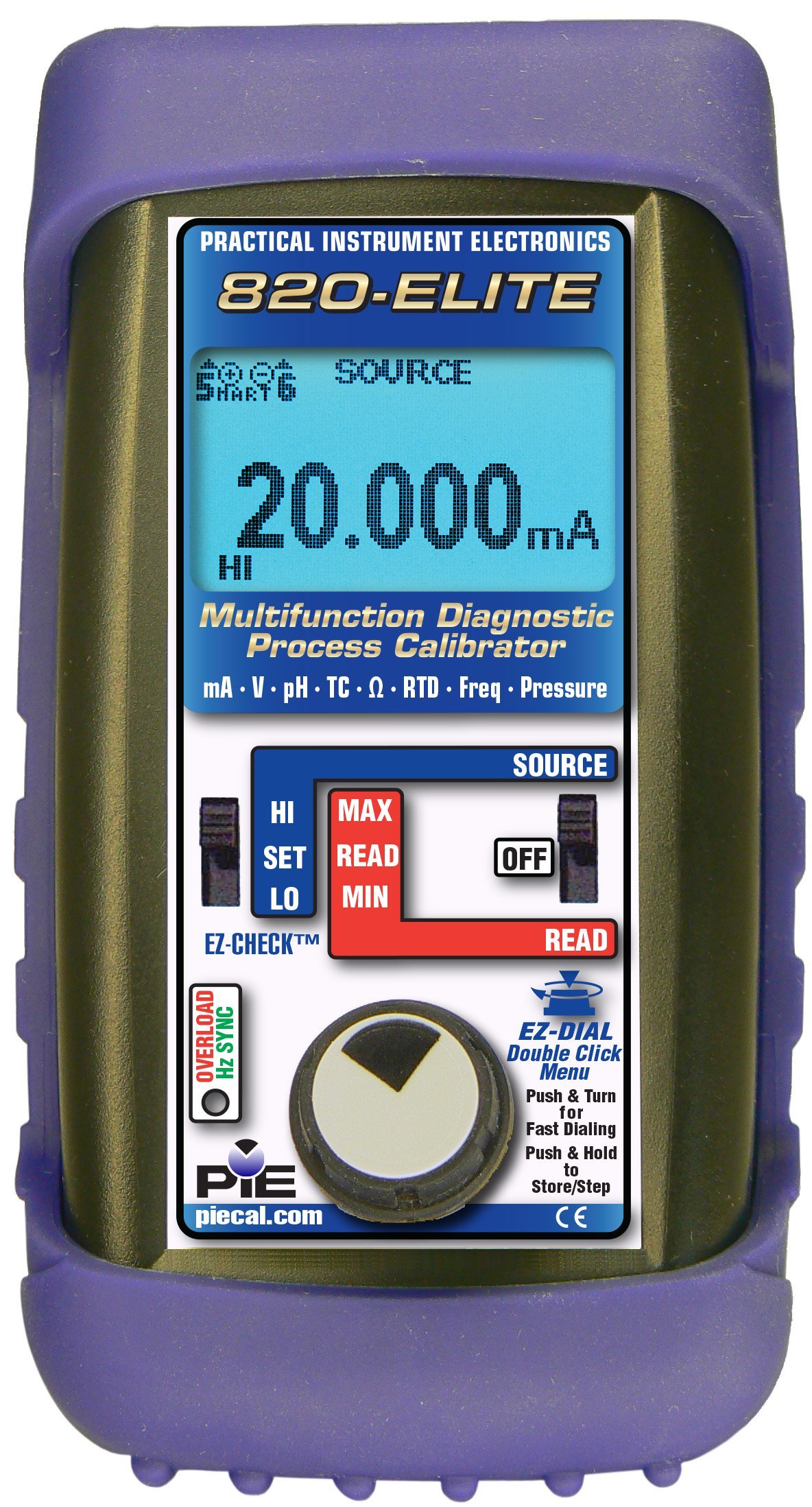

PIE Model 820ELITE – Multifunction Diagnostic Calibrator – Sources & Reads mA, T/C, RTD, V, mV, and Frequency.  Also Sources pH,  Includes a Continuity Checker, Accepts Pressure Modules and has Loop Diagnostic Capabilities.

Milliamp Calibrator

• Easy to use
  With the 820-ELITE you can check, calibrate and measure all your current signal instruments in a 4 to 20 milliamp DC loop. It can be used at any access point in your loop. Source & Read 0.000 to 24.000 mA, Simulate a 2 Wire Transmitter or use the 820-ELITE to simultaneously power your 2 Wire Transmitter and measure its output.
• Source milliamps
  Calibrate recorders, digital  indicators, stroke valves or any instruments that get their input from a 4 to 20 mA loop. Easily set any value quickly to within 0.001 mA with the  adjustable  digital  potentiometer  “EZ-DIAL” or use preset 4.000 mA (0.00%) and 20.000 mA (100.00%) EZ-CHECK™ settings.
• Calibrate using loop power
  Check loop wiring and receivers by using the 820-ELITE in place of a 2 Wire transmitter. Uses any loop power from 2 to 60 V DC.

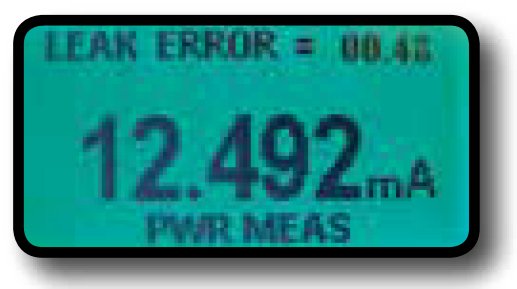

• Read loop current
  Check controller outputs or measure the milliamp signal anywhere in the loop. The 820-ELITE measures 0.000 to 24.000 mA (-25.00 to 125.00%) signals with greateraccuracy than a typical multimeter.
• Power & measure 2 wire transmitters
  The  820-ELITE can simultaneously output 24V DC to power any and all devices in a process loop using the
  internal batteries and internal switching power supply, while measuring the output of a 2 Wire Transmitter and any other loop devices.  Powers HART™ transmitters with built-in 250 ohm resistor simplifying hookups with HART communicators.

Voltage Calibrator

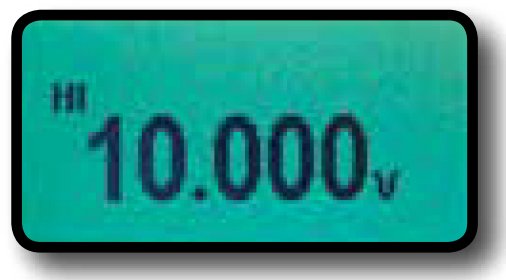

• Source three ranges of mV & V dc
  With the 820-ELITE you can check, calibrate and measure all your voltage, millivolt and pH signal instruments in your plant. Source 0.000 to 10.250 V dc, -500.00 to 999.99  mV  and  -20.000  to  99.999 mV.
• Read DC volts
  The  820-ELITE can measure from 0.000 to 10.250 V, -999.99 to 999.99 mV, -99.999 to 99.999 mV and 0.00
  to 60.0 VDC. Use it to check loop power supplies, I/V converters, 1 to 5 Volt signals, and other voltages.

Frequency Calibrator

• Calibrate flow meters and frequency instruments
  Generate zero crossing square waves to check, calibrate and measure all the frequency signal instruments in your plant. Source and read frequencies from 1 to 2000 CPM (Counts-Per-Minute), 0.01 to 999.00 Hz, 0.1 to 9999.9 Hz and 0.001 to 20.000 kHz.
• Checkout optical pickups
  The 820-ELITE has a green LED that flashes in sync with the output frequency. Select a frequency and hold the calibrator up to the optical sensor.
