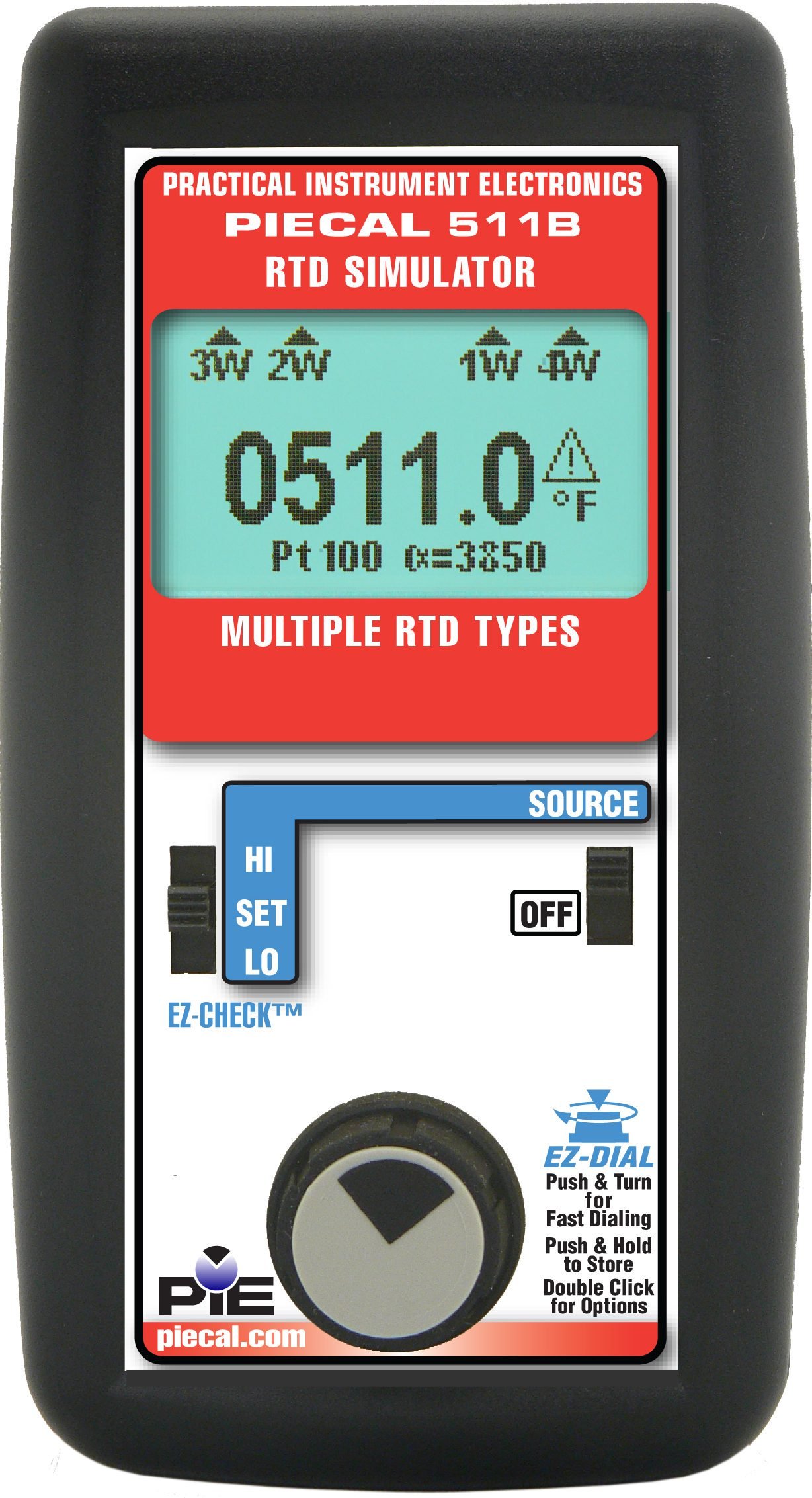

PIE Model 511B Ten Type RTD Plus Simulator
33 people are viewing this product right now
$1,098.90
Shipping calculated at checkout.
Estimated delivery:5 days
10 types RTD source only. Includes wire kit and FREE NIST Traceable Certificate of Calibration.
- SOURCE ONLY! Does not measure (read).
- For Source/Read, see models 211 and 525B
- Accurate to ±0.25°C (±0.5°F) for Pt 100 Ohm RTD’s with 0.1° Resolution
- Simulates 10 RTD curves with Direct Temperature Output or ?
- Selectable °C or °F
- Curves included for Platinum 100 and 1000 Ohm, Nickel 110 and 120 Ohmas well as for Copper 10 and 50 Ohm
- Guaranteed to Work with All Pulsed Instruments
- Works with a wide variety of transmitters including popular Rosemount and Honeywell Models
- Compatible with devices using pulsed excitation currents including PLCs, DCS, Recorders, and all others
- EZ-Dial™ Knob with two dialing speeds makes adjusting output easy
- EZ-Check™ switch can store settings for 0% and 100% span adjustments
- Uses standard “AA” Alkaline Batteries
- Superior battery life of 45 hours under typical continuous usage
- Easy access to battery compartment
- Lightweight and Rugged with a Solid Feel
- Small and tough
- Protected to 60V
Guarantee Safe and Secure Payment Checkout
Description
Ten Type RTD Plus Ω Simulator
The PIECAL 511B simulates RTD resistances into all types of instruments such as transmitters, recorders, controllers, alarms, data acquisition, and computer systems. The PIECAL 511B is a superior replacement for decade boxes, so there is no need to lug a decade box around or be prone to error by reading RTD tables incorrectly. The PIECAL 511B has better accuracy and functions of many higher priced RTD calibrators.
Process / Calibration/Temperature Calibration/RTD Calibrators Template | |
|---|---|
| RTD Types | 10 |
| Temperature Range | 1562.0 F |
| RTD IEX, Range | 10.2 mA |
| Accuracy | ±(0.025% of Setting + 0.05 Ohms) ±0.3° C, ±0.5°F |
| NIST Calibration | Yes |
| Battery Life | 50 HR |
Product General Attributes | |
| Unique Features | Simulate only: Compatible with smart transmitters, multichannel PLC & DCS inputs |
| Warranty | 3 YEARS |
| Warranty Details | Three Year material & workmanship. |
| Additional Info/Comments | Optional rubber boot for added protection |
| Safety Approval | CE |
| Product Weight | 12.1 OUNCES (0.756 LBS) |
| Product Height | 1.6 IN |
| Product Length | 5.6 IN |
| Product Width | 3.0 IN |
| Shipping Weight | 1 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9026.10.7000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration, NIST Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.5 IN |
| Shipping Length | 6.5 IN |
| Shipping Width | 4.25 IN |
