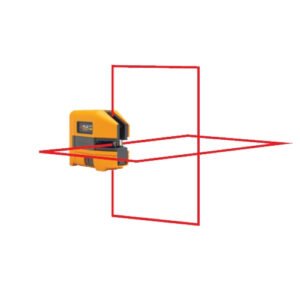

PLS 180R SYS Cross Line Red Laser System
17 people are viewing this product right now
Original price was: $780.98.$702.88Current price is: $702.88.
Shipping calculated at checkout.
Estimated delivery:3 days
CROSS LINE RED LASER SYSTEM
- Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
- Red beam laser
- Horizontal fan angle 180 °
- Vertical fan angle 130°
- Durable pendulum lock
- IP54 rating to limit dust and water entry for years of operation on the job site
- Quick layout and installation projects
- System includes PLS 180R laser level, PLS canvas pouch, PLS BP5 alkaline battery pack, PLS SLD RED laser line detector, PLS 60520 SLD clamp, PLS UB9 universal ceiling and wall bracket, PLS MLB magnetic L-bracket and PLS RRT4 red reflective target
Guarantee Safe and Secure Payment Checkout
Description
PLS 180R Z
Cross Line Laser
- Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
- Red beam laser
- Horizontal fan angle 180 °
- Vertical fan angle 130°
- Durable pendulum lock
- IP54 rating to limit dust and water entry for years of operation on the job site
- Quick layout and installation projects
This self-leveling cross line laser level in both red and green is designed for multiple applications including framing, acoustic ceiling installation, tile installation, and other residential and commercial construction tasks.
Cross Line Laser Controls
 |
- Laser LED: Shows green when at least one laser is on.
- Lock LED: Shows green when the laser lock is enabled.
- Battery LED: Shows red when the batteries need to be replaced.
- Vertical laser button: Turns on or off the vertical laser.
- Horizontal laser button: Turns on or off the horizontal laser.
- Laser lock switch: Slides to lock or unlock the lasers.
- Laser unlock position: The self-leveling feature, keeps the lasers visible when the Product tilts ≤4 ° in any direction. When the Product tilts >4 ° in any direction, the lasers do not show. The Laser indicator LED stays green to indicate that when you return the Product to an upright position, the lasers show again.
- Laser lock position: Keeps the lasers visible even when you tilt the Product >4 °. The lasers blink twice every 5 seconds to indicate the self-leveling feature is disabled. Use to align items diagonally such as a stair rail.
Distance Meter/Laser Distance Meter Template | |
|---|---|
| Accuracy | ≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m ) |
Product General Attributes | |
| Warranty | 3 YEARS |
| IP Rating | IP54 |
| Product Weight | 1.3 LBS |
| Product Height | 4.1 IN |
| Product Length | 4.6 IN |
| Product Width | 2.5 IN |
| HTS/Schedule B Number | 9031499000 |
| ECCN Number | EAR99 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 10.38 IN |
| Shipping Length | 15.25 IN |
| Shipping Width | 8.00 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresManuals
| Weight | 1.3 lbs |
|---|---|
| Dimensions | 4.6 × 2.5 × 4.1 in |
