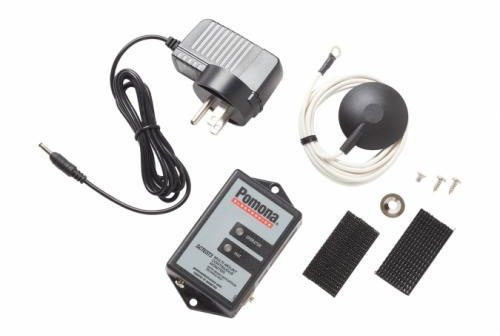

Pomona SCTEST3 – Multi-Mount Continuous Monitor, 100-240 VAC, 50/60 Hz, SCTEST Series

Name: Pomona SCTEST3 - Multi-Mount Continuous Monitor, 100-240 VAC, 50/60 Hz, SCTEST Series - NESTES Instruments
SKU: Pomona SCTEST3
Price: 255.60 USD
Availability: InStock

Brand:

Pomona

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

19 people are viewing this product right now

Original price was: $298.85.Current price is: $255.60.

Shipping calculated at checkout.

Add to quote

Estimated delivery:3 days

Multi-Mount Continuous Monitor, 500 k? to 10 M? impedance, <50 ns

Continuously monitors the path-to-ground integrity of one operator and one ESD work surface
Monitors for a worksurface path-to-ground of less than 10 MΩ
Mounting tabs make it suitable to install in workbench or equipment settings
Alarms when the operator unintentionally disconnects from the monitor or the connection between the banana plug and monitor’s jack is intermittent
Mat monitor switch disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
Audible alarm adjustment sets the audible alarm volume from loud to louder
Wave Distortion Technology provides stable continuous monitoring (versus pulse or intermittent) of the wrist strap’s path-to-ground and the presence of its 1 MΩ safety resistor
Disconnect (and park) a wrist strap when leaving the workstation without creating a false alarm
Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
1.2V operator test voltage reduces the risk of electrical overstress (EOS) for the handling of sensitive components

SKU: Pomona SCTEST3 EAN: 195112031193 Tags: ESD Test and Measurement Products, Static Control Categories: ESD Test and Measurement Products

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Additional information

Description

Pomona SCTEST3

Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
Monitors for a worksurface path-to-ground of less than 10 MΩ
Mounting tabs make it suitable to install in workbench or equipment settings
Mat monitor switch disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
Audible alarm adjustment sets the audible alarm volume from loud to louder

Multi-Mount Continuous Monitor, 100-240 VAC, 50/60 Hz, SCTEST Series

The SCTEST3 is a Multi-Mount Continuous Monitor with 100-240 VAC and 50/60 Hz. The Wave Distortion Technology provides stable continuous monitoring (versus pulse or intermittent) of the wrist strap’s path-to-ground and the presence of its 1 MΩ safety resistor.
