Prostat PAS-853BRM – Digital Surface Resistance Ohmmeter Test Kit

• Surface Resistance Kit from 0.01 ohm to 9.99×1012 ohms
• Nominal Full Range Tolerance Averages <±5%
• Fully Automatic Resistance Range, Test Voltage, and Electrification Period control
• Determines if a surface is Dissipative, Conductive, or Insulative
• Measures resistance point-to-point (Rtt) and point-to-ground (Rtg)

Wide Range Resistance Kit

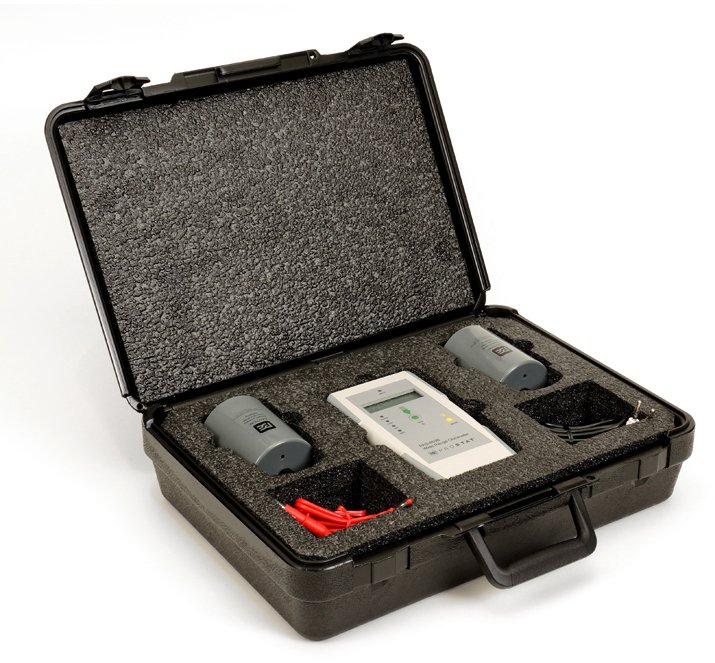

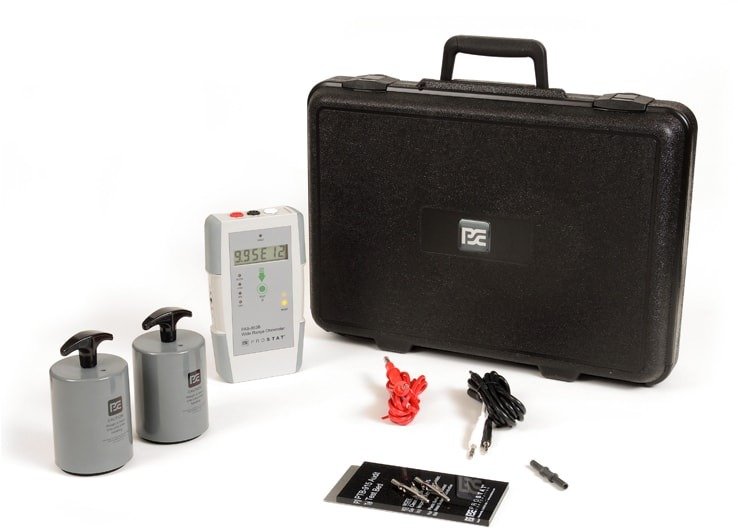

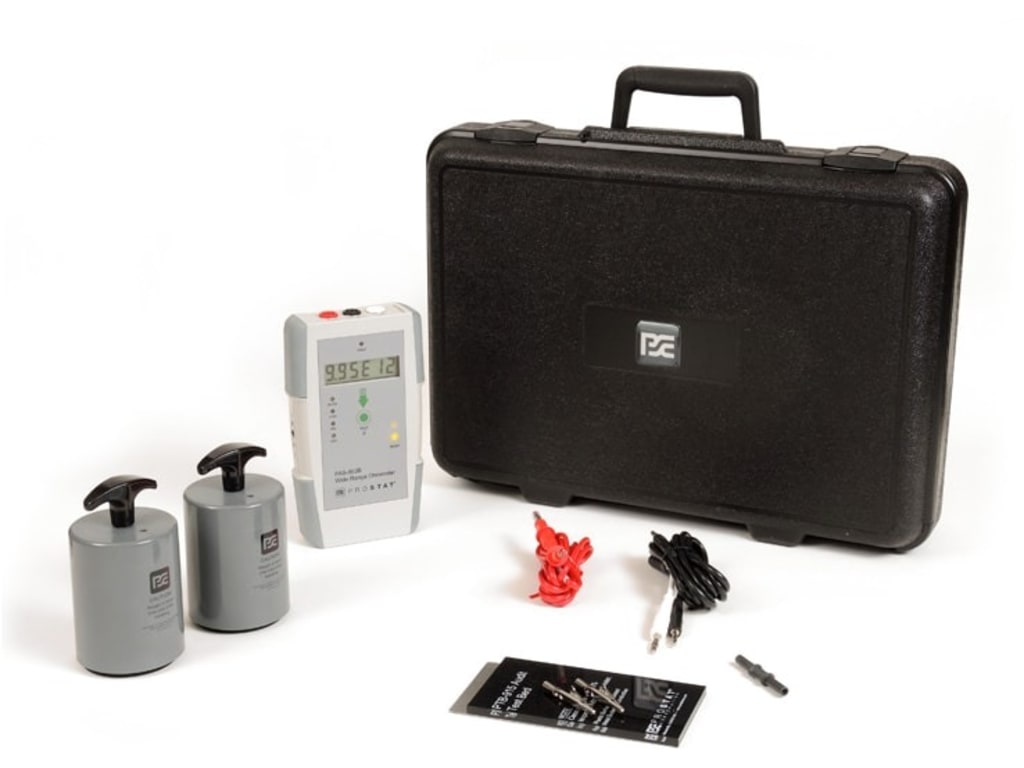

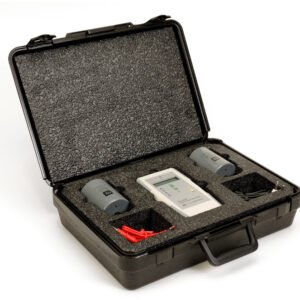

The PAS-853BRM Digital Surface Resistance Test Kit is the ideal kit for the ESD Plant Auditor. It includes the PAS-853B Wide Range Ohmmeter with 2 each PRS-801W 5 lbs Conductive Rubber Electrodes.

Designed to Support ESD TR53

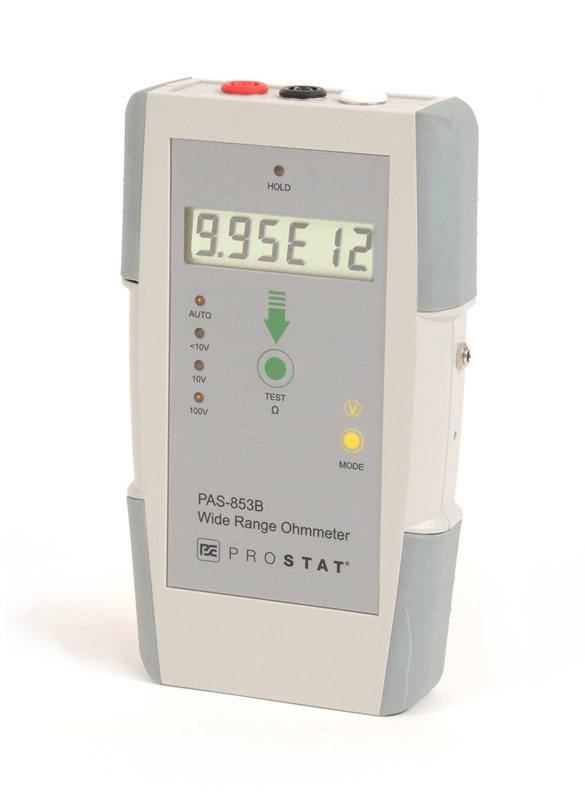

The PAS-853B is a wide range ohmmeter that measures accurately from 0.01 Ω to 9.99 x 1012 Ω. The kit is designed to measure resistance point-to-point (Rtt) or surface-to-ground (Rtg), and meets audit requirements of ESD TR53, while supporting ANSI/ESD S20.20 program standard and periodic verification requirements.

Variable & Constant Test Voltages

<10 Volts Variable from 0.01 to 9.9×103 ohms

10 Volts (±<5% Constant Voltage) from 1.0×104 to 9.99×105 ohms

100 Volts (±<2% Constant Voltage) from 1.0×106 to 9.99×1012 ohms

A Fast and Reliable Resistance Meter

The PAS-853B is a lightweight meter with a built-in electrification period of 3 seconds for measurements from 1.00E-2 Ω to 9.99E+5 Ω and 8 seconds from 1.00E+6 Ω to <1.00E+12 Ω, making it a quick and easy way to measure more surfaces throughout your day.

Fully Automatic for Resistance and Test Voltage

The PAS-853B will determine the resistance range and test voltage automatically when you make measurements. After the minimum electrification period, the display will freeze an accurate measurement for 10 seconds. Alternatively, the meter has the option of measuring in Continuous mode, which will continue to measure until Reset is pressed.

Conductive Probes for Surface Resistance

The PRS-801W are conductive probes used for surface resistance measurements. Measuring under 500 ohms each on a clean plate, the 5lb electrodes meet the requirements of ANSI/ESD S4.1 and ANSI/ESD S7.1 for resistance, diameter, weight and durometer.

Complies to ANSI/ESD Standards and Test Methods

The PAS-853BRM is ideal for making measurements in accordance with test procedures in the following:

• Floors – ANSI/ESD S7.1- Resistive Characterization of Materials Floor Materials
• Worksurfaces – ANSI/ESD S4.1 Worksurfaces
• Compliance Verification – ESD TR53 – Resistance Measurements
• Floor/Footwear – ANSI/ESD STM97.1 – Floor Materials and Footwear- Resistance Measurement in Combination with a Person
• Garments – ANSI/ESD STM2.1 Garments
• Seating – ANSI/ESD STM12.1- Seating – Resistive Measurement
