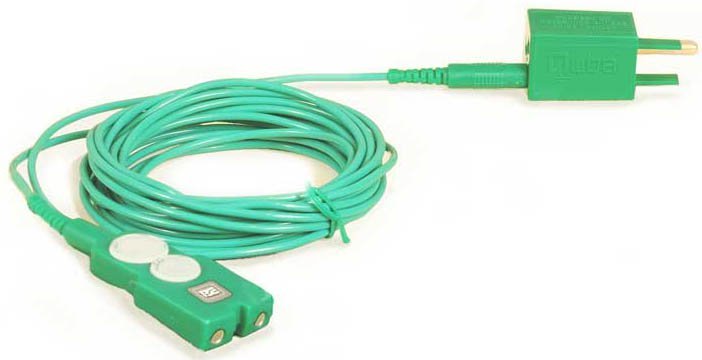

Prostat PGC-015Q Green Ground Cord & Qube

Q007B Common Point Ground Connector

The Prostat Qube™ replaces ordinary electrical grounding devices with a convenient, cost-effective means to connect several ESD controls to a single grounded electrical outlet. Use the Q007B Qube™ to ground workstations, mats, wrist straps & testers, instruments, and other ESD control products to a pre-tested facility electrical ground. It consists of a robust multi receptacle frame encased in fire retardant ABS with a solid brass grounding pin.

PGC-015G Green Ground Cord

The Prostat PGC-015G is a 15-foot straight common point ground cord with two banana receptacles, in low profile housing for connecting two wrist straps. The PGC-015G includes one 1.0×106 (±20%) current limiting resistor molded in the snap housing, a low profile housing with a 10 mm male snap for easy connection to the mat, and a male banana plug for cord connection to the ground.

The PGC-015G is made in accordance with IEC 61340-5-1, ANSI/ESD S20.20, and ANSI/ESD S6.1.
