Prostat PRM-650 – 2 x 4 Foot Rubber Mat

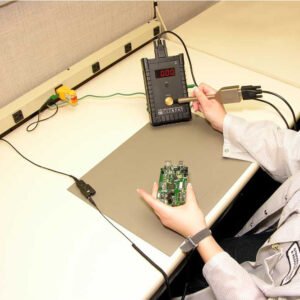

The PRM-650 is a dual-layer synthetic rubber work surface covering with volume functional static dissipative properties. It may be used as a grounded tablemat, as a non-grounded work mat when placed on a grounded surface, or it may be laminated directly to a workbench in place of rigid laminates.

The PRM-650 is a unique, high-performance worksurface material that uses both volume electrical properties in addition to surface dissipation to protect your static-sensitive products. This approach provides exceptional ESD control performance, product protection and flexible application characteristics for a variety of static control challenges.

CONSTRUCTION

The PRM-650 protects static sensitive products and devices as it is made of two layers of high-quality Nytril Rubber, in compliance with the most stringent industry standards for ESD control.

TOP LAYER: Static Dissipative layer to discharge static fields at the right speed, thereby preventing damage (grey).

BOTTOM LAYER: Conductive layer to quickly drain to ground all charges filtered by the top layer (black).

FEATURES

• Reflection breaking surface to reduce glare and improve operator comfort.
• High resiliency for protection against small collisions
• High slip resistance
• Very high heat and solder resistance
• High chemical resistance
• Oil resistance
• Suitable for free laying (no adhesive required)
• PVC Free
• Compatible with continuous monitors
• Meets or exceeds requirements of ANSI/ESD S4.1
• Meets the Federal Standard 101 Method 4046 for static decay.
• ROHS Compliant
