Prostat PWS-661M – Grounding Set – Metal Cuff

Q007B Common Point Ground Connector

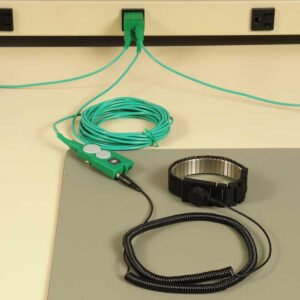

The Prostat Qube™ replaces ordinary electrical grounding devices with a convenient, cost-effective means to connect several ESD controls to a single grounded electrical outlet. Use the Q007B Qube™ to ground workstations, mats, wrist straps & testers, instruments, and other ESD control products to a pre-tested facility electrical ground. It consists of a robust multi receptacle frame encased in fire retardant ABS with a solid brass grounding pin.

PGC-015G Green Ground Cord

The Prostat PGC-015G is a 15 foot straight common point ground cord with two banana receptacles, in low profile housing for connecting two wrist straps. The PGC-015G includes one 1.0×106 (±20%) current limiting resistor molded in the snap housing, a low profile housing with a 10 mm male snap for easy connection to mat, a male banana plug for cord connection to ground.

The PGC-015G is made in accordance with IEC 61340-5-1, ANSI/ESD S20.20, ANSI/ESD S6.1.

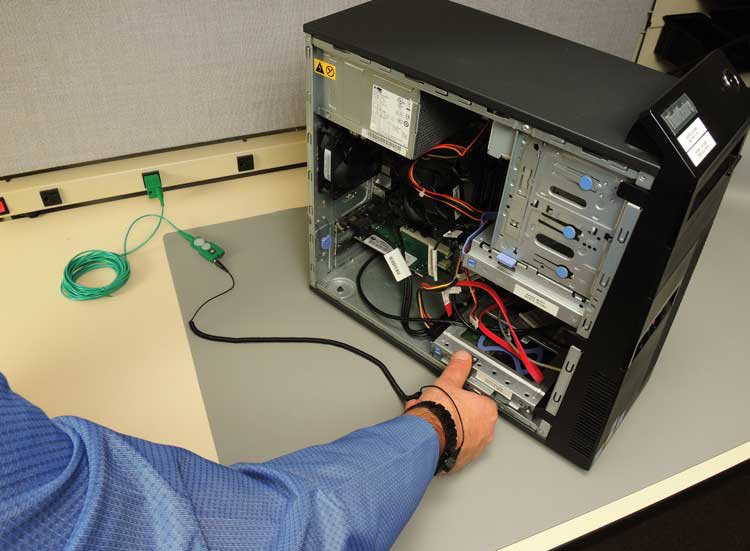

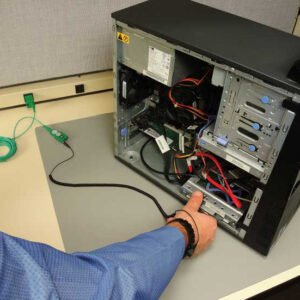

PWS-620 Metal Band Wrist Strap

The PWS-620 Wrist Strap features a metal wristband that incorporates a patented linking system. It enables you to adjust the strap to fit virtually any wrist size. This unique band comes manufactured in 130mm lengths and can be easily enlarged using one or more of the five 10mm nylon expansion links included.

The band is extremely comfortable, as each one is “custom fit” to the user. This band eliminates the need to stock bands of various sizes.
