Description

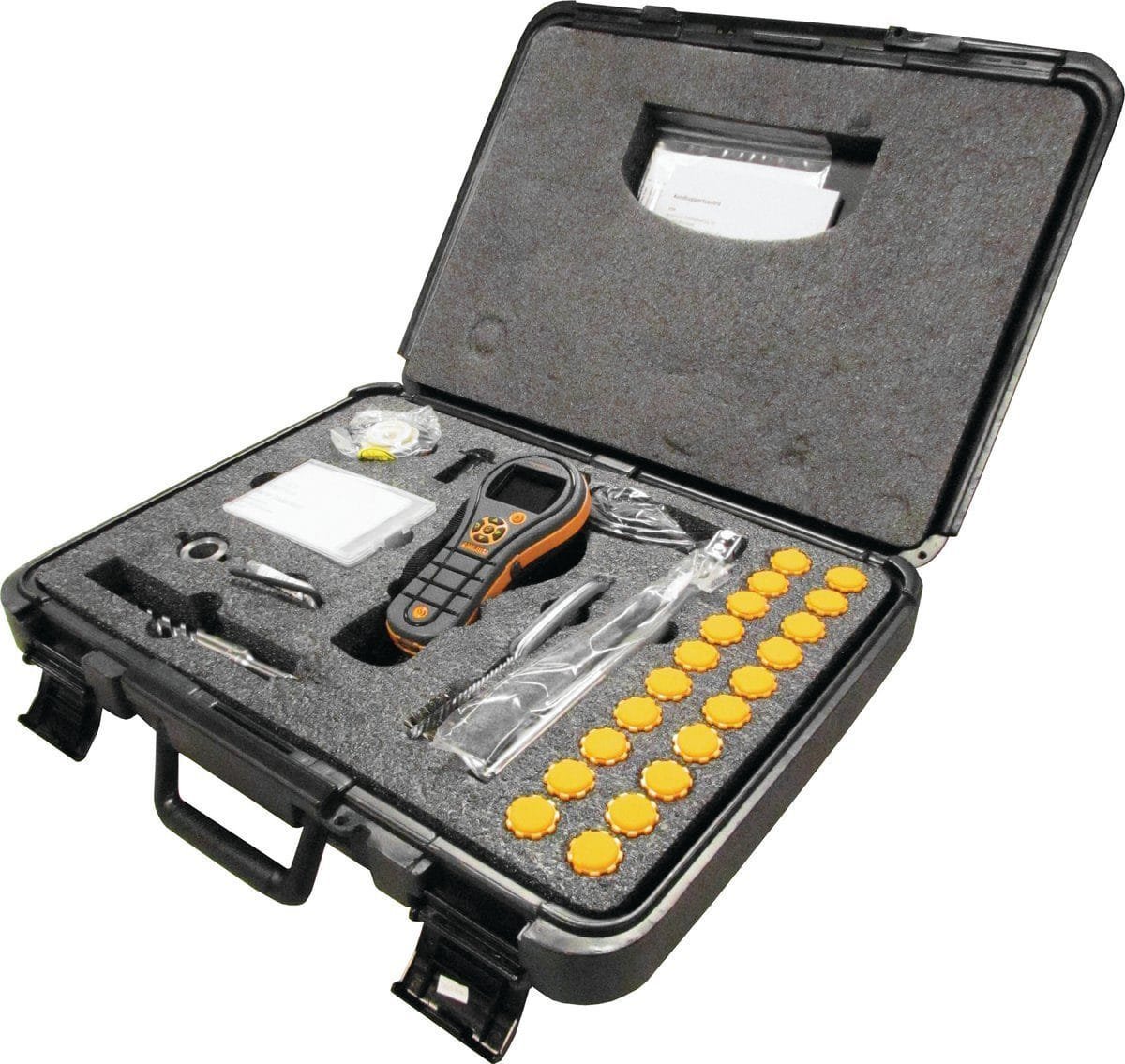

Protimeter BLD7750L-FL
- Hygromaster L Instrument
- Mini HygroStick with traceable cert (5 pack)
- In-situ relative humidity and temperature
- Relative humidity and temperature in ambient conditions
- Dewpoint and Specific Humidity (GPP, g/Kg)

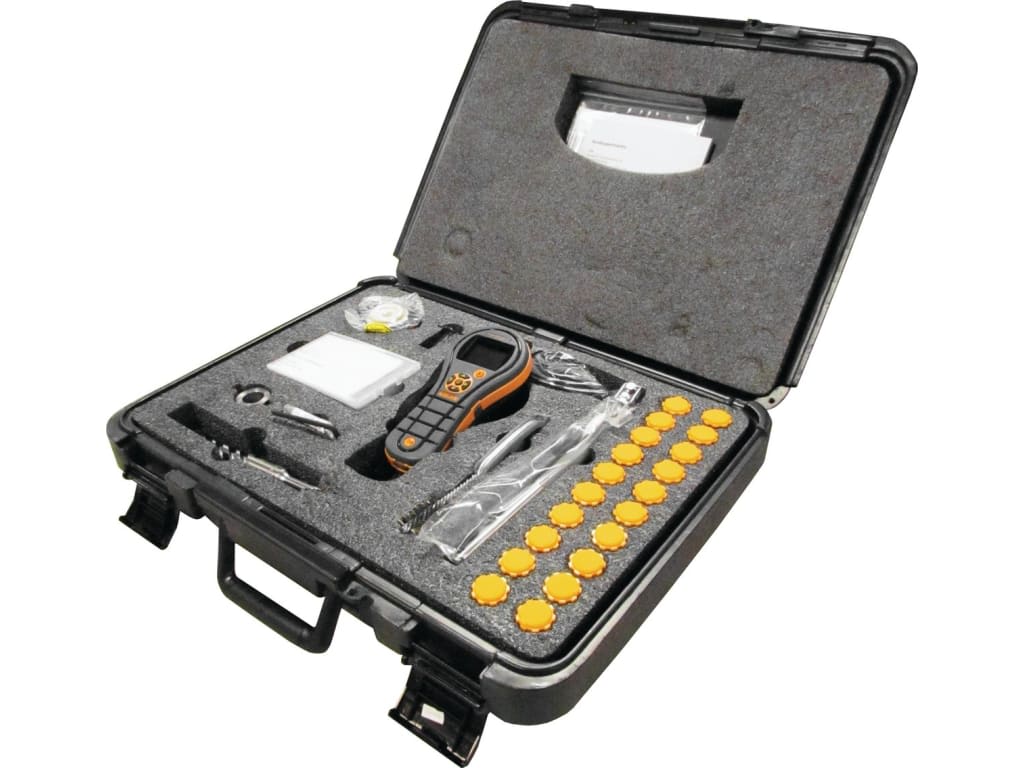

Hygromaster L Flooring Kit
The Hygromaster L Flooring Kit allows flooring inspectors to take moisture measurements in concrete floor slabs using the relative humidity in-situ probe method. The in-situ humidity test is being adopted worldwide and is considered the most accurate way for contractors and inspectors to ensure that moisture levels in concrete slabs meet the recommended requirements prior to installing a floor covering.
Moisture levels in floor slabs are critical to understand, as excessive moisture can lead to catastrophic and expensive floor failures. Global standards are in place, such as ASTM F2170.

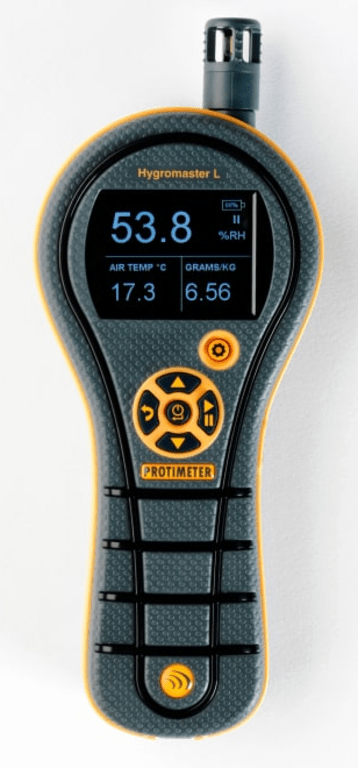

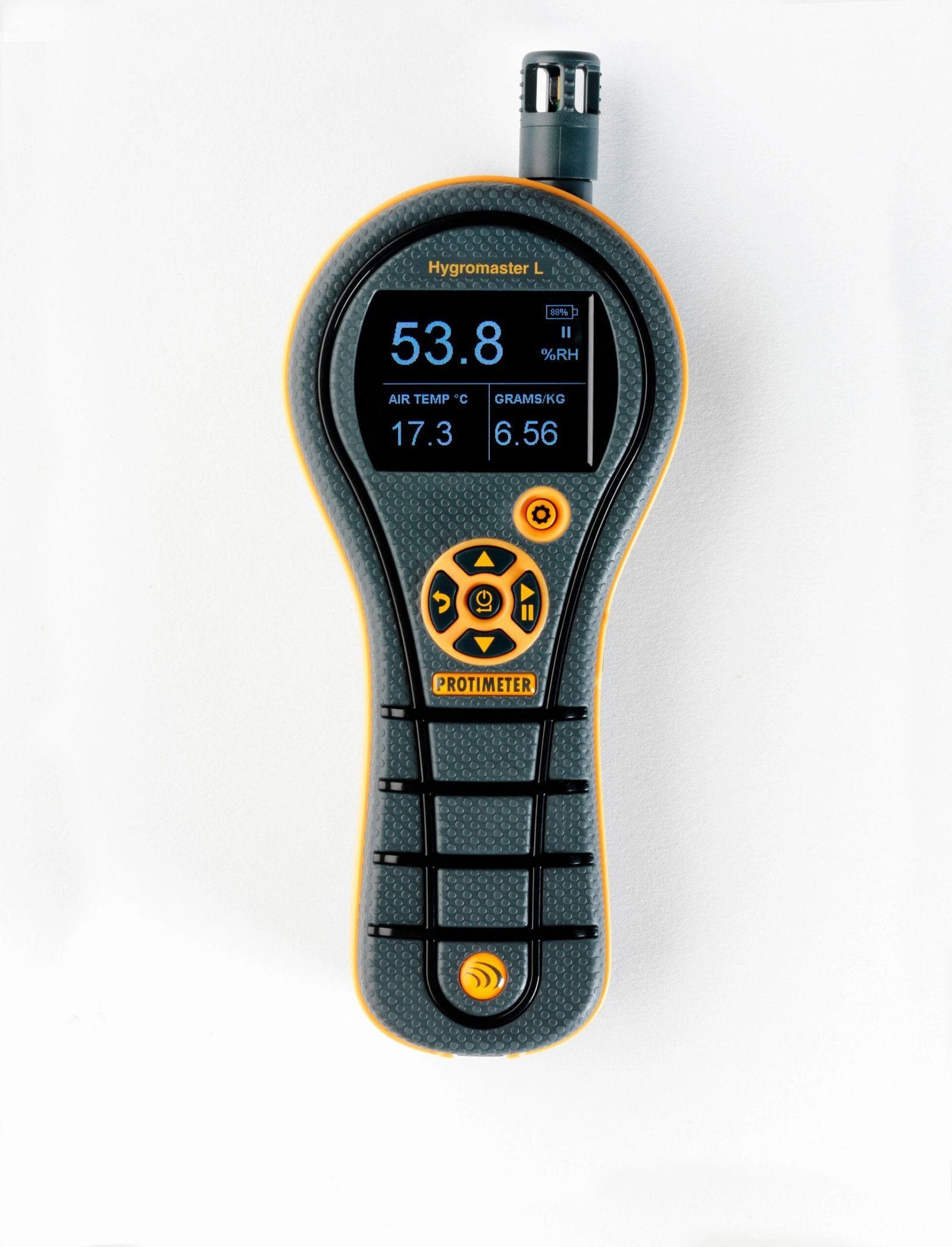

Hygromaster L Hygrometer
The Protimeter Hygromaster L is a “lighter” version of the Hygromaster 2, but with the same great performance in accuracy and fast response. It features a simple user interface and multi-function capability.
The Hygromaster L measures ambient humidity and temperature, dewpoint, and specific humidity. It also incorporates a replaceable humidity and temperature sensor. This meter is ideal for flood damage restoration, building survey, concrete, and concrete floor (in situ) moisture measurement.

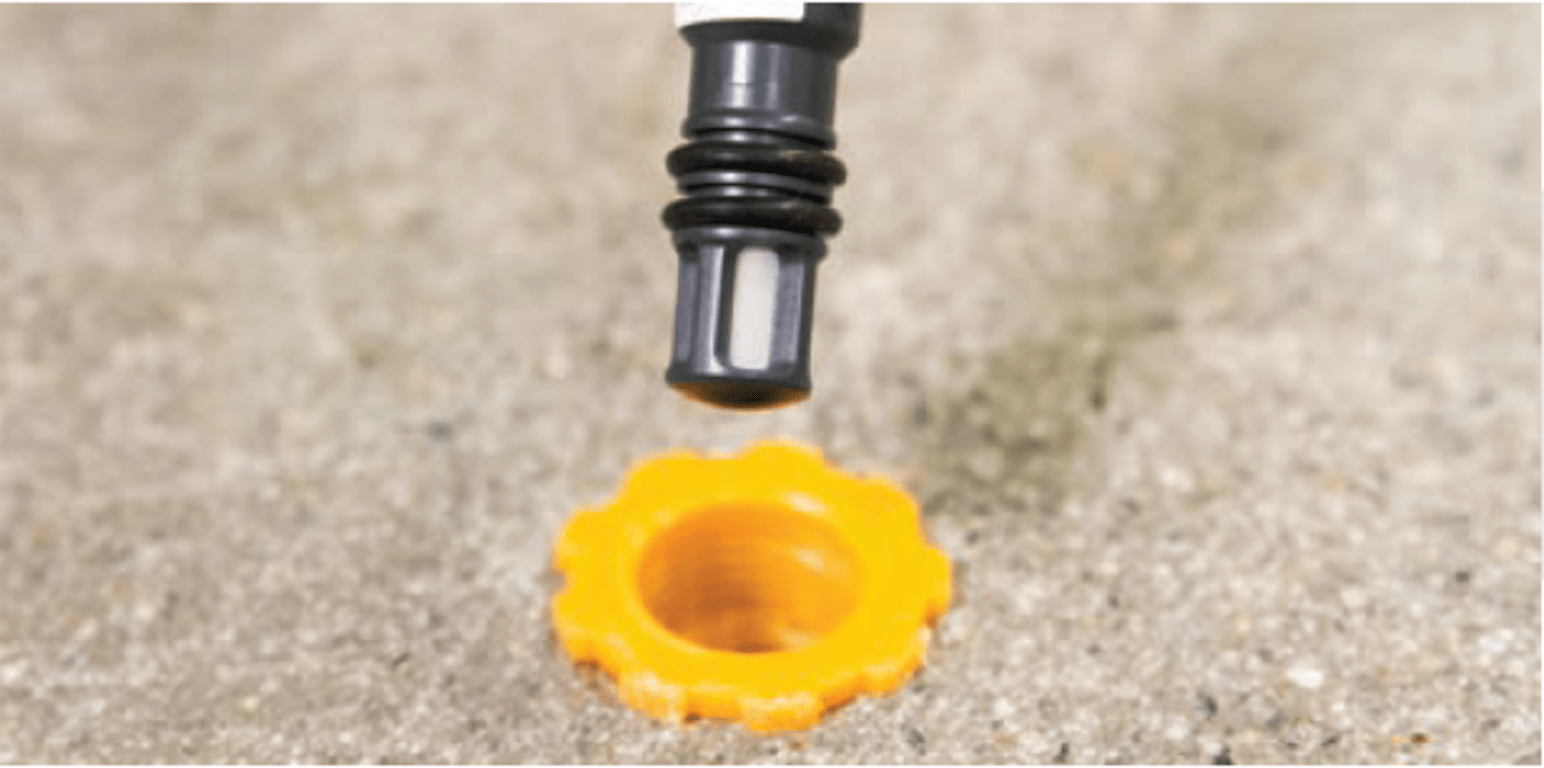

In-Situ Humidity Test Points
Benefits
- Fast temperature and humidity response
- Replaceable humidity and temperature sensor
- Highly accurate
Applications
- Flood damage restoration
- Building survey
- Concrete and concrete floor moisture measurement (ASTM-F2170 Standard)
- HVAC test and measurement

Probe Data
Mini HygroStick Data (Nominal)
- 30% to 40% RH, ±3% RH at 68°F (20°C)
- 41% to 98% RH, ±2% RH at 68°F (20°C)
- Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
QuikStick Data (Nominal)
- 0% to 10% RH, ±3% RH at 68°F (20°C)
- 11% to 90% RH, ±2% RH at 68°F (20°C)
- 91% to 100% RH, ±3% RH at 68°F (20°C)
- Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
- Nominal Response 30% to 90% and back to 30% RH in 45 seconds @ 68°F (20°C)
Environmental Testers / Physical Property/Moisture Meters Template | |
|---|---|
| Measurement Methods (Moisture Meter) | Pinless |
| Materials Tested | Concrete |
| Measure Temperature | Yes |
| Measure Humidity | Yes |
| Dew Point | Yes |
| Self Calibration | No |
Product General Attributes | |
| Warranty | 2 YEARS |
| Warranty Details | Mechanical and manufacturing defects. Does not include wearing of parts or accessories. |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
