Radwag 5Y.PM ELLIPSE Precision Balances

Fast and Stable Measurement

It only takes a second for the balance to display the final measurement result.

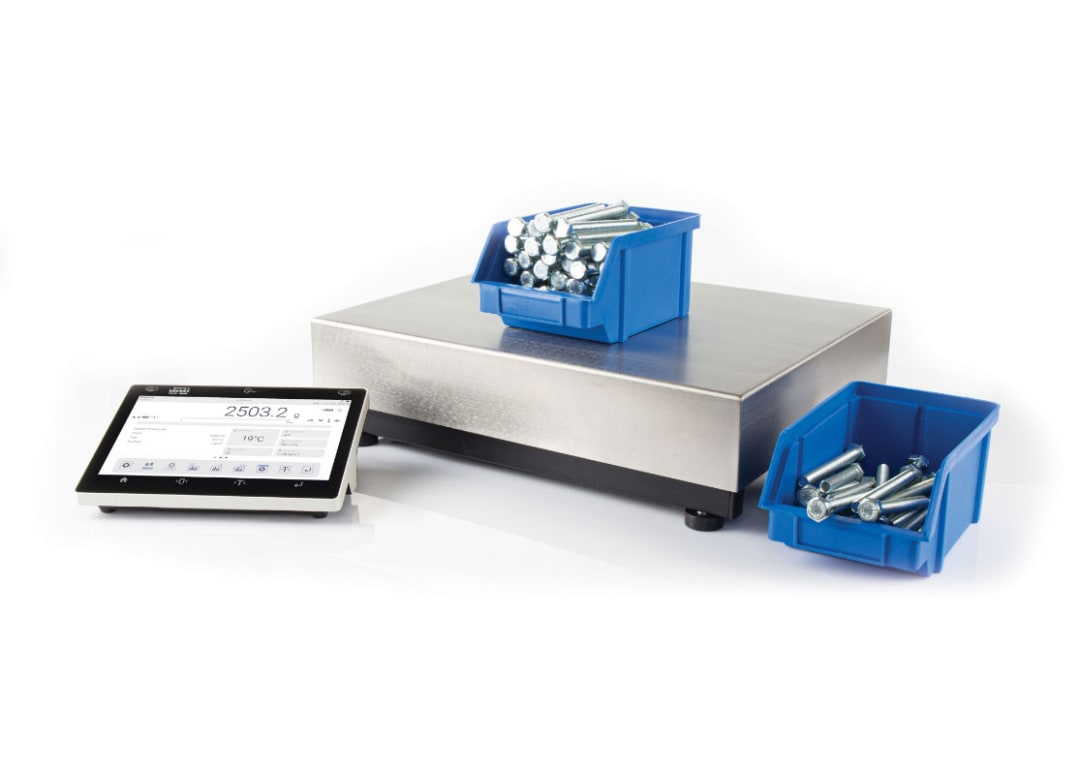

Weighing Heavy Loads with High Accuracy

On the large weighing pan of a PM balance, you can weigh a load of 120 kg with a readability of 0.2g and second-to- repeatability.

Minimum Eccentricity Error Over the Entire Range

PM balances can be used to determine the mass of irregularly shaped components with a centre of gravity that is significantly shifted from the weighing pan axis.

Parameter Stability Over Time and After Transport

The mechanical design is resistant and robust, allowing you to maintain the correct metrological parameters after transport and despite long and intensive use.

Weighing Pan Dimensions Adapted to the Accuracy of the Balance

Weigh with the highest readability of 0.01 g on the 200 x 185 mm weighing pan and with a readability of 0.2 g on the 500 x 400 mm weighing pan.

Autotest, Dosing, Percent Weighing, Parts Weighing, Peak Hold, Formulation, Statistics, Checkweighing, IR Sensors, GLP Procedures, Animal Weighing, Pipettes Calibration, Air Density Correction, Density Determination, Differential Weighing, Ambient Conditions Monitoring, Statistical Quality Control, Packages.

The 5Y.PM ELLIPSE precision balances use new and improved MONOBLOCK that enables the best repeatability and speed in its class of weighing platforms.

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

• Full data security
• Electronic signatures
• Validations
• Electronic records
• Audit trails

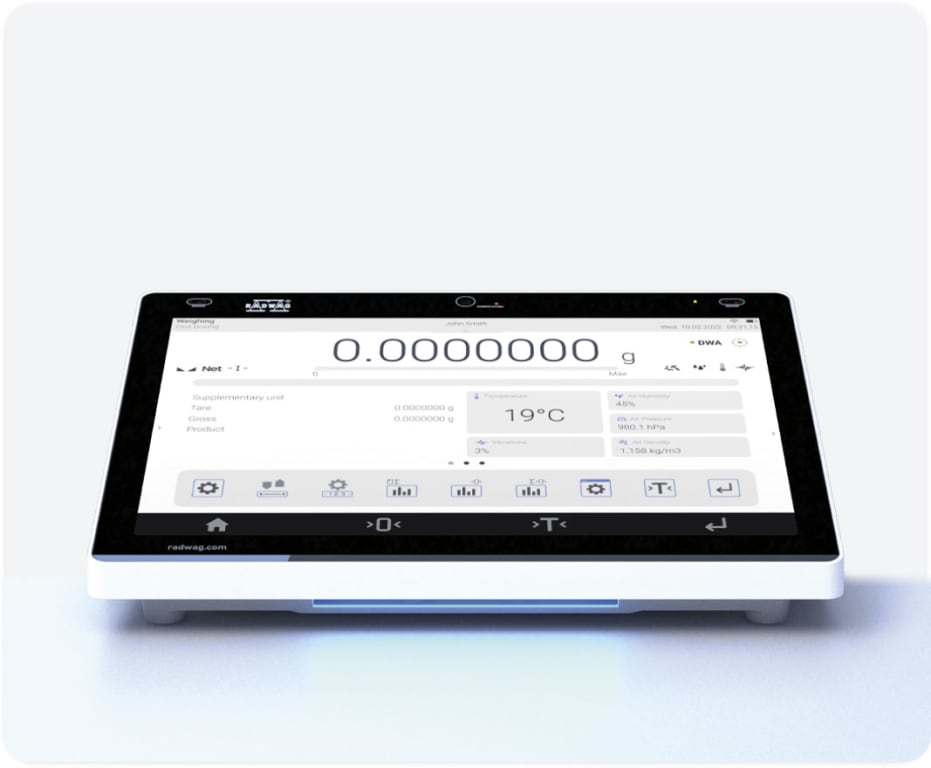

With Terminal 5Y you get a 10-inch display, Digital Weighing Auditor, multi-step user verification, ambient light alerts, hotspot, RFID*, live note voice and text notes, voice commands for the balance and handy measurement history within the handy library widgets.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

THBR 2.0 System

Cooperation with THBR 2.0 System for ambient conditions monitoring.
