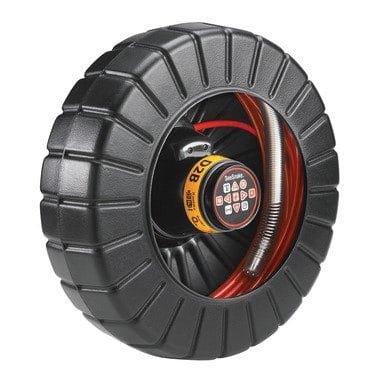

RIDGID RM200 D2B DRUM – Drum Only with Push Cable, Camera Head, and Counter Keypad (Catalog No: 47538)

• D2B Drum with push cable, camera head, and counter keypad

• Camera Dims: 656 x 492 resolution; 25mm Self-leveling camera head with (6) LEDs
• Push cable dims: 165 ft length x 0.35in diameter (50m x 0.90cm); Stiff; 17in dual spring; 3.5in bend
• Line capacity: 2in to 8in (when used with a 125mm pipe guide)
• FleXmitter Sonde (inside spring assembly): 512 Hz

The RIDGID D2B Drum has a 50m (165ft) long, stiff push cable and a longer spring (17in) with a second, shorter spring nested inside. The dual, nested spring gives the D2B the ability to easily navigate multiple turns and transitions while maintaining the stiffness necessary to push through them and go farther down long lines. The D2B is best suited for lines 51mm – 101mm (2in – 4in) in diameter. When used with a 125 mm (5in) pipe guide the D2B’s line capacity is 51mm – 203mm (2in – 8in). Achievable push distance depends on pipe conditions. A FleXmitter sonde is built into the D2B’s spring assembly, helping locate problems in the pipe, and transmits a 512 Hz signal for detection by the above-ground receiver. The RIDGID D2B Drum has a minimum bend radius of 90mm (3.5in).
