Rigol AMK-DSA800 Advanced Measurement Kit

• For DSA8xx Models

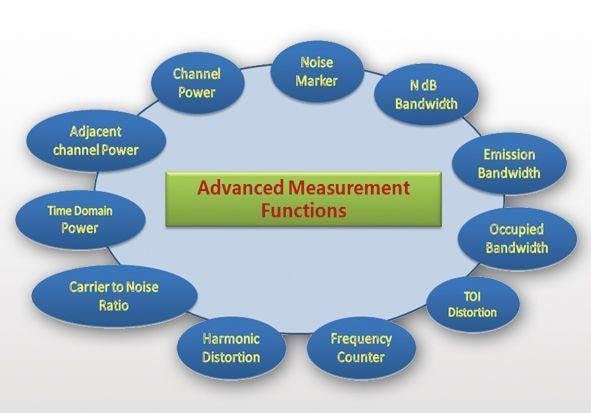

• Advanced Measurement Kit – SW option

T-power

The system enters zero span mode and calculates the power within the time domain.The types of powers available include Peak, Average and RMS.

ACP

Measure the powers of the main channel and adjacent channels as well as the power difference between the main channel and each of the adjacent channels. When this function is  enabled,  the  span  and  resolution  bandwidth of the analyzer are adjusted to smaller values automatically.

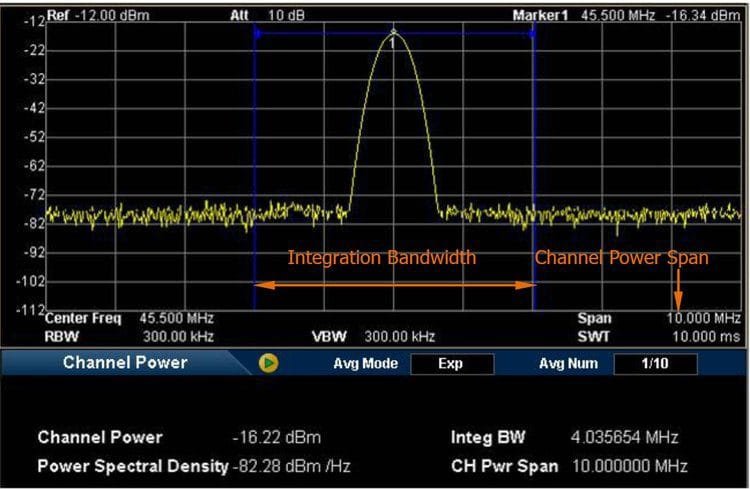

Chan Pwr

Measure the power and power spectral density within the specified channel bandwidth. When this function is enabled, the span and resolution bandwidth are automatically adjusted to smaller values.

OBW

Integrate the power within the whole span and calculate the bandwidth occupied by this power according to the specified power ratio. The OBW function also indicates the difference between the center frequency of the channel under measurement and the center frequency of the analyzer.

EBW

Measure the bandwidth between two points on the signal which are X dB below the highest point within the span.

C/N Ratio

Measure the powers of the carrier and noise with the specified bandwidths as well as their power ratio.

Harmo Dist

Measure the power of each order of harmonic and THD (total harmonic distortion) of the carrier. The highest order of harmonic available is 10 and the fundamental  wave amplitude must be greate than -50 dBm, or else the measurement will be invalid.

TOI

Measure the parameters of the TOI production of two signals with the same amplitude and similar frequency. Those parameters include the frequencies and amplitudes of the Base Lower, Base Upper, 3rd Order Lower and 3rd Order Upper signal, as well as the Intercepts of both the Base Lower and Base Upper.
