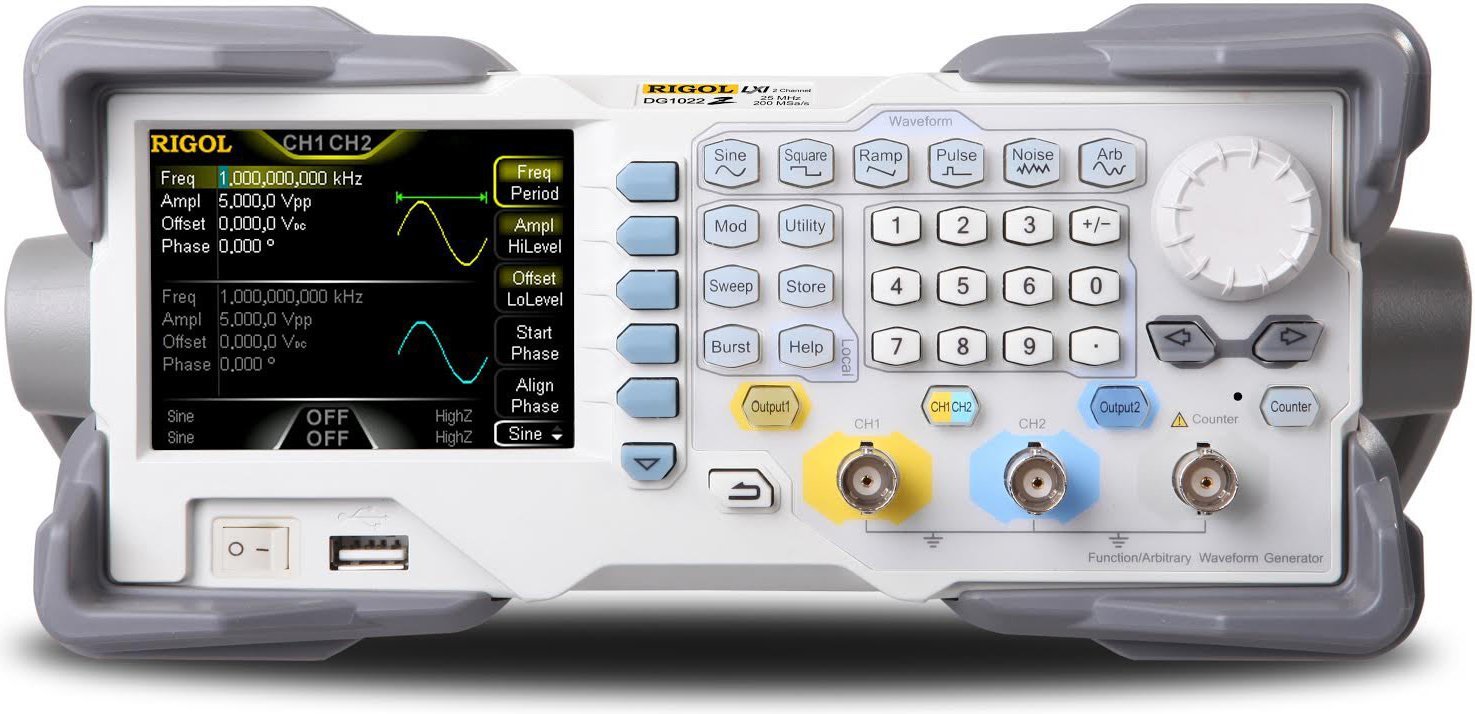

Rigol DG1032Z Function/Arbitrary Waveform Generator (30 Mhz, 2-Channel)
27 people are viewing this product right now
$576.40
Shipping calculated at checkout.
Estimated delivery:5 days
30 MHz, 2 ch, 200MS/s Waveform Generator with deep memory arbitrary waveform capability and SiFi signal fidelity technology
- Function/Arbitrary Waveform Generator, Max Frequency: 30 MHz, Channel: 2, Sample Rate: 200 MSa/s
- Innovative SiFi (Signal Fidelity): generate arb waveform point-by-point, restore signal distortionless, precisely adjustable sample rate and low jitter (200ps)
- Arbitrary waveform memory: 8Mpts (standard), 16Mpts (optional)
- Standard 2 full functional channels can be used as two independent generators ±1ppm frequency stability, -125dBc/Hz phase noise
- Built-in 8 orders harmonics generator
- Built-in 7 digits/s full function frequency counter with 200MHz bandwidth
- Up to 160 built-in waveforms
- 200MSa/s sample rate, 14bits vertical resolution
- Convenient arbitrary waveform editing interface
- Versatile modulation types: AM, FM, PM, ASK, FSK, PSK and PWM
- Standard waveform summing function
- Standard channel track function
- Standard interfaces: USB Host& Device, LAN(LXI Core Device 2011)
- 3.5 inches TFT color display
Guarantee Safe and Secure Payment Checkout
Description
Rigol DG1032Z Function/Arbitrary Waveform Generator, 30 Mhz, 2 Channel
- 30 MHz Max Frequency
- 2 Channel
- 200 MSa/s Sample Rate
- Arbitrary waveform memory: 8Mpts (standard), 16Mpts (optional)
- Standard 2 full functional channels can be used as two independent generators
- ±1ppm frequency stability, -125dBc/Hz phase noise
DG1000Z series function/arbitrary waveform generator is a multi-functional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator and Counter. As a multi-functional, high performance and portable generator, it will be a new selection in education, R&D, production, test and etc.
Standard 2 full functional channels
Arbitrary waveform function with innovative SiFi technology
Up to 160 built-in waveforms
Burst function
Multiple analog and digital modulations
Sweep function
Standard harmonic generator
Waveform summing function
Standard 7 digits/s full function frequency counter with 200MHz bandwidth
Channels and system setting
In line with LXI Core Device 2011
File Management Function
Generators / Counters/Function Generator Template | |
|---|---|
| Channels | 2 |
| Frequency Maximum | 30 MHz |
| Frequency Minimum | 1 uHz (0.000001 Hz) |
| Functions | Burst, Noise, Pulse, Ramp, Sine, Square, Sweep, Triangle |
| Max Amplitude Vpp @ 50 ohms | 10 V |
| Arbitrary | Yes |
| Sample Rate | 250 MSa/S |
| Screen Type | LCD |
| Color Screen | Yes |
| Triggering | Yes |
| Counter that displays frequency on screen. | Yes |
| Modulation Types | AM, FM, FSK, PSK, PWM |
| Graphical Display | Yes |
| Memory | 8 MB (8192 kB) |
| Direct Digital Synthesis (DDS) | No |
| PC Based | No |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE |

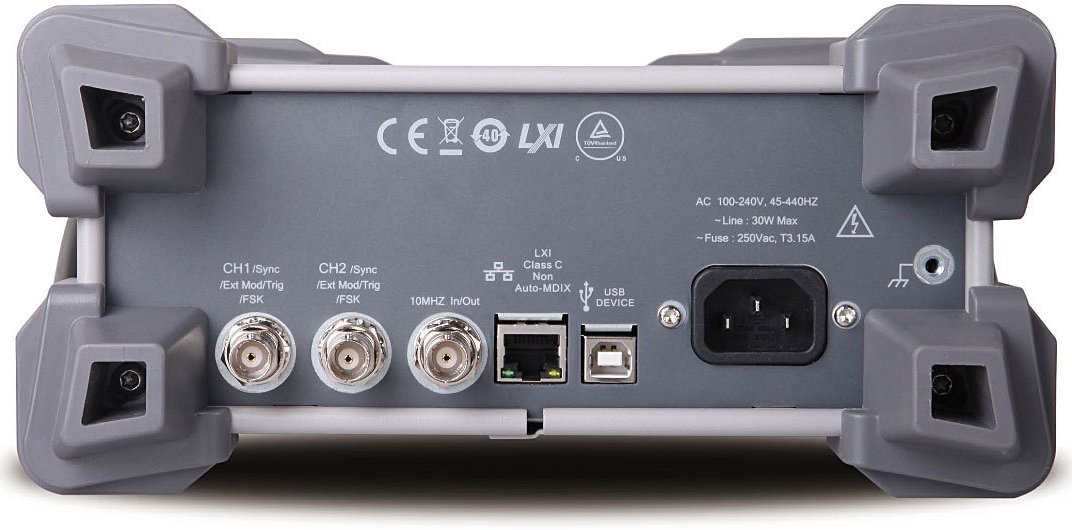

| Interfaces I/O | LAN / Ethernet, USB Host, USB |
| Storage | USB Flash Drive |
| Product Weight | 7 LBS |
| Product Height | 4.4 IN |
| Product Length | 10.2 IN |
| Product Width | 12.5 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030890100 |
| ECCN Number | 3A992.a |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsOther
| Weight | 7 lbs |
|---|---|
| Dimensions | 10.2 × 12.5 × 4.4 in |
