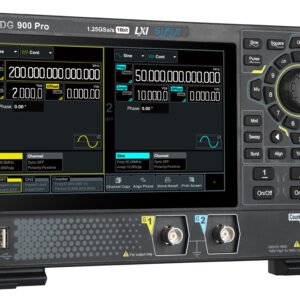

Rigol DG912 Pro – Function/Arbitrary Waveform Generator (2 Channel / 150 MHz)
39 people are viewing this product right now
$899.00
Shipping calculated at checkout.
Estimated delivery:3 days
150MHz,1.25GSa/s,16bit,2CH
- 2 channels
- 150 MHz maximum frequency (sine)
- Very small footprint – 10.4” x 6.5” x 3.1” (W x H x D)
- Lightweight – only 3.9 pounds
- 16 Mpts/ch memory depth (32 Mpts/ch via option DG900 Pro-3RL)
- 7” color touch screen
- 1.25 GSa/s sample rate
- 16 bit vertical resolution
- VESA 100×100 mounting pattern on back
- Standard 7 digit frequency counter with 1GHz maximum frequency
Guarantee Safe and Secure Payment Checkout
Description
Rigol DG912 Pro
- 2 channels
- 150 MHz maximum frequency (sine)
- Very small footprint – 10.4” x 6.5” x 3.1” (W x H x D)
- Lightweight – only 3.9 pounds
- 16 Mpts/ch memory depth (32 Mpts/ch via option DG900 Pro-3RL)
Function/Arbitrary Waveform Generator (2 Channel / 150 MHz)
The Rigol DG900 Pro series is a cost-effective, dual-channel function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.
The chart below outlines several main specifications of each model.
| DG902 Pro | DG912 Pro | DG922 Pro | |
| Maximum frequency | 70 MHz | 150 MHz | 200 MHz |
| Channels | Two | Two | Two |
| Sample rate | 1.25 GSa/s | 1.25 GSa/s | 1.25 GSa/s |
| Vertical resolution | 16 bit | 16 bit | 16 bit |
| Memory depth | 16 Mpts/ch | 16 Mpts/ch | 16 Mpts/ch |
Memory depth can be upgraded to 32 Mpts/ch via option DG900 Pro-3RL.
Waveform output
The Rigol DG900 Pro has multiple built in waveforms, covering frequently used signals in engineering, medical electronics, mathematics and more.
- Output Mode: Continuous, Modulation, Sweep, Burst, Sequence
- Standard Waveform: Sine, Square, Ramp, Pulse, Noise, Arb, Harmonic
- Built-in Arb Waveform: 148 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gaussian, HaverSine, and Lorentz
| DG902 Pro | DG912 Pro | DG922 Pro | |
| Sine | 1 μHz to 70 MHz | 1 μHz to 150 MHz | 1 μHz to 200 MHz |
| Square | 1 μHz to 60 MHz | 1 μHz to 60 MHz | 1 μHz to 60 MHz |
| Ramp | 1 μHz to 3 MHz | 1 μHz to 5 MHz | 1 μHz to 5 MHz |
| Pulse | 1 μHz to 50 MHz | 1 μHz to 50 MHz | 1 μHz to 50 MHz |
| Arb | 1 μHz to 30 MHz | 1 μHz to 50 MHz | 1 μHz to 50 MHz |
| Harmonic | 1 mHz to 35 MHz | 1 mHz to 75 MHz | 1 mHz to 100 MHz |
Various modulation types
The DP900 Pro offers several types of modulation for a variety of testing scenarios. Modulation types include AM, FM, PM, ASK, FSK, PSK, PWM and SUM.
Outstanding accuracy
The DG900 Pro features a 1.25 GSa/s maximum sample rate and 16 bit vertical resolution, ensuring more accurate waveform output.
Frequency counter
This instrument includes a standard 7-digit counter with maximum frequency of 1 GHz. Equipped with an independent input connector for counter measurements, it provides a more simplified and accurate way to measure frequency.
Capable of handling up to 1 GHz, it can measure some HF signals, including VHF and UHF, for easier debugging.
Sequence mode
The Sequence Mode allows up to 64 steps and 256 repetition counts. This feature enables you to load many test cases to be performed sequentially at one time, switching from one test case to another seamlessly.
Sequence length is 32 pts/CH to 16 Mpts/CH (32 Mpts/CH via option DG900 Pro-3RL).
Rear panel VESA mount
The rear panel of the DG900 Pro contains VESA 100 mounting pattern. This enables easy connection to a mounting arm, saving valuable space on your bench. Please note, arm sold separately.
Front panel layout
Rear panel layout
Generators / Counters/Function Generator Template | |
|---|---|
| Channels | 2 |
| Frequency Maximum | 150 MHz |
| Frequency Minimum | 1 uHz (0.000001 Hz) |
| Functions | Noise, Other, Pulse, Ramp, Sine, Square |
| Max Amplitude Vpp @ 50 ohms | 10 V |
| Arbitrary | Yes |
| Sample Rate | 1.25 GS/S (1250 MSa/S) |
| Color Screen | Yes |
| Digital Amplitude Resolution | 16 Bits |
| Triggering | Yes |
| Counter that displays frequency on screen. | Yes |
| Modulation Types | AM, FM, FSK, PSK, PWM |
| Graphical Display | Yes |
| Memory | 16 MP [megapoints] (16384 kB) |
| PC Based | No |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE |
| Interfaces I/O | LAN / Ethernet, USB Host, USB, USB-C |
| Storage | Internal Memory |
