Rigol DL3031 Programmable DC Electronic Load (Single Channel, 150V/60A/15kHz 350W)
47 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
350W Electronic Load with single input 150V/60A/15kHz
- Single output, 150 V/60 A/15 kHz, total power up to 350 W
- Dynamic mode: up to 15 kHz
- Adjustable current rising speed: 0.001 A/μs to 5 A/μs
- Min. readback resolution: 0.1 mV，0.1 mA

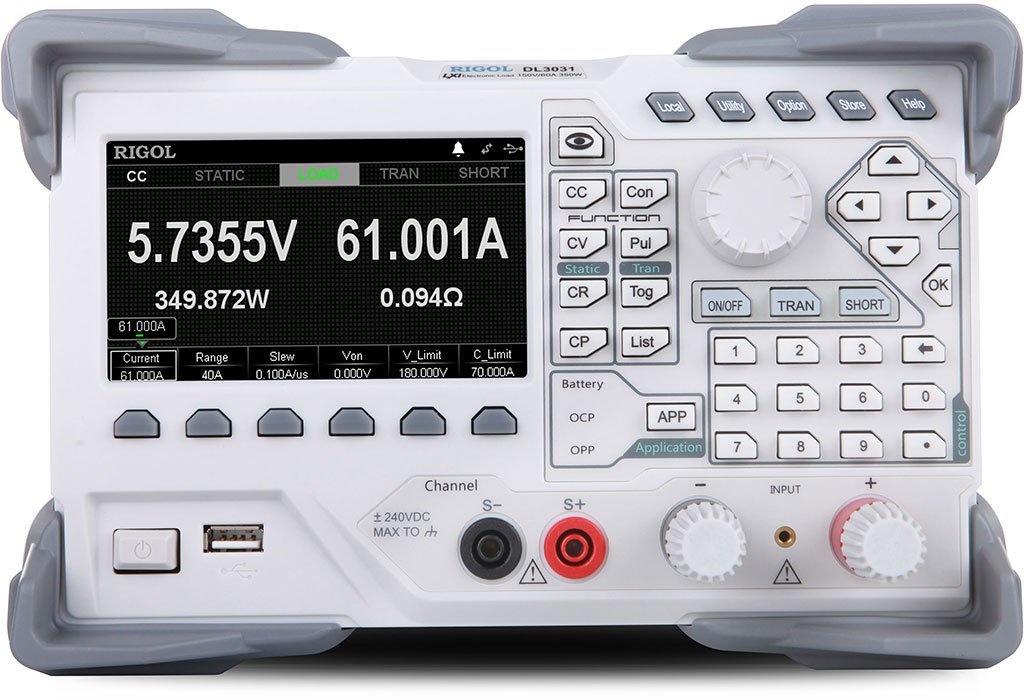

- 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
- Over-voltage/over-current/overpower/over-temperature/reverse voltage protection
- 4 static modes: CC, CV, CR, CP
- 3 dynamic modes: continuous, pulsed, toggled
- List function supports editing as many as 512 steps
- Battery test function, OCP test, OPP test, factory test function, etc.
- Short-circuit test function
- Power-off memory function
- Built-in RS232/USB/LAN communication interface
- USB-GPIB module (optional)
Typical Applications
- General-purpose testing in the R&D lab
- DC power supply industry, such as regulated power supply, constant current power supply, switching mode power supply (SMPS), module power supply, power adapter, etc.
- Battery industry, such as various batteries and cell batteries
- Charger industry, such as battery charger and cell phone charger
- Power electronic device industry, such as MOSFET, IGBT, capacitor, and ballast resistor
- Teaching experiment
Guarantee Safe and Secure Payment Checkout
Description
Rigol DL3031 – Programmable DC Electronic Load (Single Channel, 150V/60A/15kHz 350W)
- 15 kHz dynamic mode
- 5 A/μs current rising speed
- Powerful list operation function and waveform display function
- Easy-to-use function of file storage and recalling
- Sound OVP/OCP/OPP/OTP/Reverse Voltage Protection
Programmable DC Electronic Load DL3000 Series
DL3000 is a cost-effective programmable DC electronic load with high performance. With a user-friendly interface and superb performance specifications, DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. It can be widely used in various industries, such as automotive electronics, aerospace, and fuel cells.
Design Features
30kHz dynamic mode
Transient test function enables the load to periodically switch between two set levels (Level A and Level B). It can be used to test the transient characteristics of the DUT. The highest frequency can be set to 30 kHz. Besides, in the guide interface, you can configure parameters in the parameter configuration list and view the configuration diagram at the left of the configuration list in the real-time manner.
Powerful list operation function
You can generate complex sequences by editing the setting value for each step, the dwell time, and slew rate (the slew rate can only be edited in CC mode) to meet the complex test demands.
5 A/μs current rising speed
Current rising speed is defined as the speed of transition from one setting to another. You can set the actual transition time from one setting to another by changing the current rising speed. Adjustable current rising speed: 0.001 A/μs to 5 A/μs.
Powerful waveform display function
The electronic load provides the waveform display function and supports the following operations for the waveform, such as pausing the waveform, enlarging and narrowing the waveform, and capturing the waveform. Therefore, you can dynamically observe the trend of parameters changes.
Easy-to-use function of file storage and recalling
The load allows you to save different types of files to the internal and external memories. You can recall and read them when necessary.
Sound OVP/OCP/OPP/OTP/Reverse Voltage Protection
When OVP/OCP/OPP/OTP/reverse voltage protection occurs, the load will immediately turn off the input automatically and stop sinking. Then, a prompt message is displayed.
| DL3021 | DL3021A | DL3031 | DL3031A | |
|---|---|---|---|---|
| Total Power | 200 W | 200 W | 350 W | 350 W |
| Max Current | 40 A | 40 A | 60 A | 60 A |
| User Interface | Monochrome | Full Color | Monochrome | Full Color |
| Max Current Slew Rate | 2.5 A/μs Standard; 3 A/μs Optional | 3 A/μs Standard | 2.5 A/μs Standard; 3 A/μs Optional | 5 A/μs Standard |
| Max Continuous Mode Frequency | 15 kHz Standard; 30 kHz Optional | 30 kHz Standard | 15 kHz Standard; 30 kHz Optional | 30 kHz Standard |
| Readback Current Resolution | 1 mA Standard; 0.1 mA Optional | 0.1 mA Standard | 1 mA Standard; 0.1 mA Optional | 0.1 mA Standard |
| Digital I/O Triggering | Optional | Standard | Optional | Standard |
| Ethernet Communication | Optional | Standard | Optional | Standard |
Power Supplies/Electronic Loads Template | |
|---|---|
| Watts | 350 Watts |
| Max Current | 60 A |
| Max Voltage | 150 V |
| Min Current | 1 mA (0.001 A) |
| Min Voltage | 1 mV (0.001 V) |
| Programable | Yes |
| Triggering | Yes Triggering optional. buy DIGITALIO-DL3 |
| Battery Test | Yes |
| Remote Sensing | Yes |
Product General Attributes | |
| Unique Features | -Dynamic Load Performance and Visualization -Up to 5 A/us slew rate and 30 kHz dynamic loading -High resolution and accuracy on voltage and current load conditions -3 Built in application setups for battery testing or Current or Power optimization -Free UltraLoad Software for remote operation and monitoring |
| Warranty | 3 YEARS |
| Warranty Details | 3 year warranty on instruments. 1 year on accessories. 30 day no questions asked return policy. |
| Safety Approval | CE |

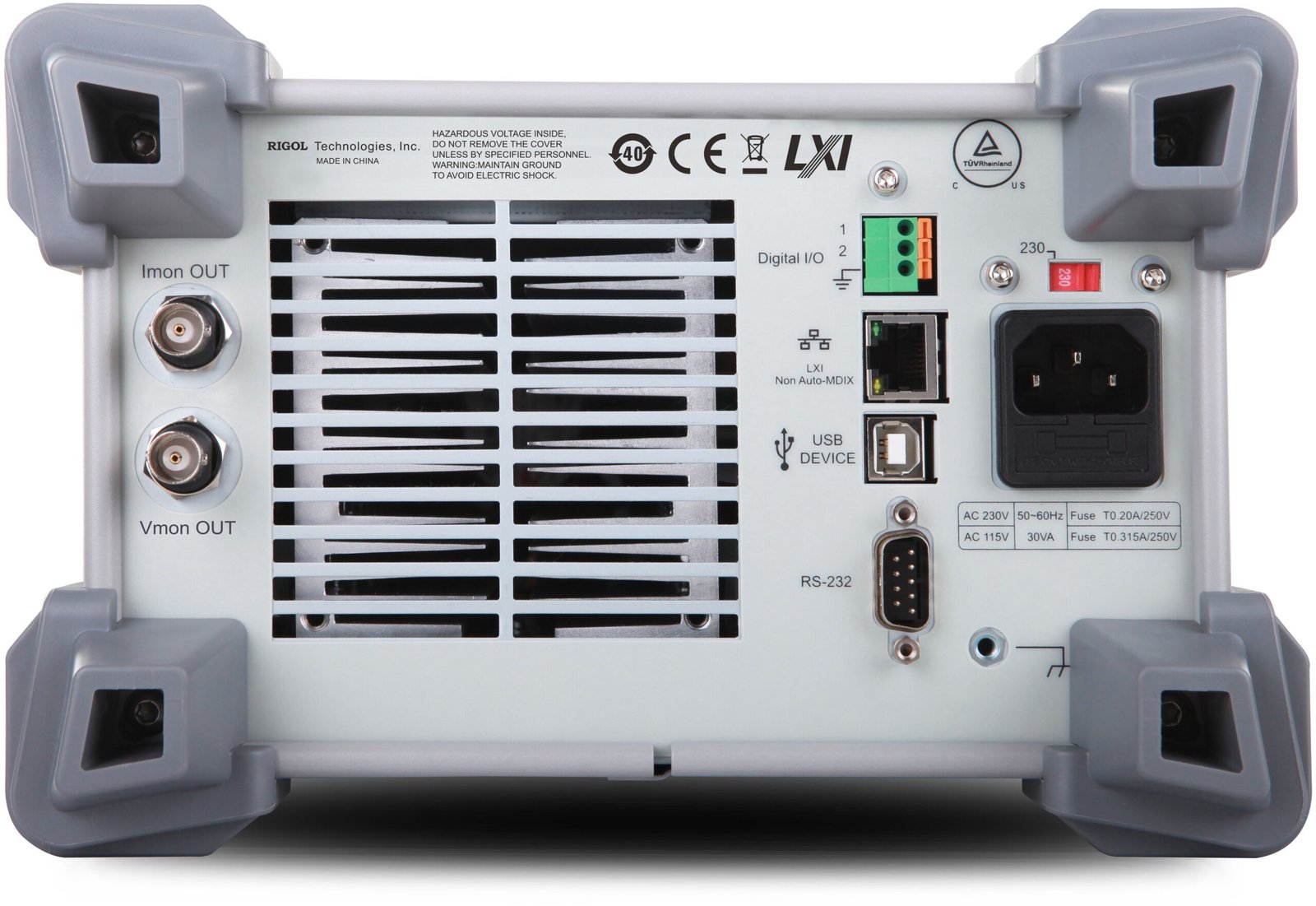

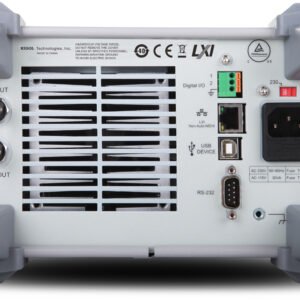

| Interfaces I/O | Analog Output, GPIB, LXI, RS-232, USB Host, Remote Sense, USB Interfaces I/O GPIB is optional. buy USB-GPIB. |
| Storage | Internal Memory, USB Flash Drive |
| Product Weight | 17 LBS |
| Product Height | 6.2 IN |
| Product Length | 17.5 IN |
| Product Width | 9.4 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 8504409510 |
| ECCN Number | 3A992.a |
| Calibration Included | Factory Calibration, NIST Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Weight | 17 lbs |
|---|---|
| Dimensions | 17.5 × 9.4 × 6.2 in |
