Description

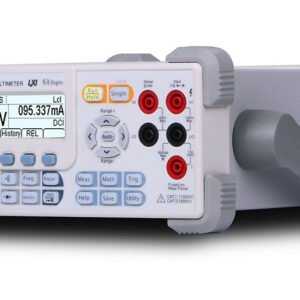

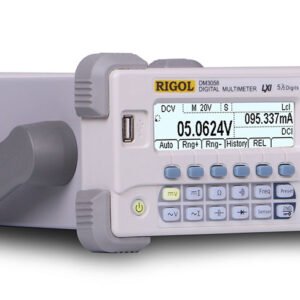

Rigol DM3058 – True 5 1/2 Resolution Digital Multimeter
- Real 5 ½ digits readings resolution
- Up to 123 rdgs/s of measurement speed
- True-RMS AC Voltage Current measuring
- Quickly Save or Recall the 10 groups of Preset Configuration
The Model DM3058 DMM gives reliable, cost effective, full DMM capabilities measuring DCV, ACV, DCI, ACI, Resistance (2 & 4 Wire), Capacitance, Diode Test, Frequency, and Temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. The DM3058 is a great bench tool for basic, reliable measurements regardless of your application or need.
A high quality digital tabletop multimeter of the DM3050 series with a sampling rate of max. 120 Sa/s.
These Rigol multimeters have a very sophisticated and easy to use interface and provides plenty functions for all measurement tasks. The use of the menu navigation is very intuitional and the device will provide precise results in its many application areas. With the help of a computer you can perform long running monitoring tasks too.
The LC-Display is with its 256×64 pixels easy to read and provides a very good overview over all features. The display has a resolution of 5½ digits (max. count 240.000).
Multimeters Template | |
|---|---|
| Style | Bench |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 750 V |
| Resolution AC Volts | 1 uV (0.001 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 uV (0.001 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 20 mA |
| Resolution AC Current | 0.1 uA (0.00010 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 200 uA (0.2 mA) |
| Resolution DC Current | 1 nA (0.000001 mA) |
| Basic Accuracy V DC | .005% Reading + .003% Range |
| # Digit Display | 5.5 |
| Counts | 240000 . |
| Backlight | No |
| Manual/Autoranging | Both |
| Decibels | Yes |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | II |
| CAT Voltage | 1,000 V, 600 V CAT Voltage CAT I 1000V, CAT II 600V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | Yes |
| Wireless Display | No |
| Data Hold | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE |
| Interfaces I/O | GPIB, LAN / Ethernet, LXI, RS-232, USB Host, USB |
| Product Weight | 2.5 KILOS (5.51 LBS) |
| Product Height | 107 MM (4.21 IN) |
| Product Length | 290.5 MM (11.44 IN) |
| Product Width | 231.6 MM (9.12 IN) |
| Data Logging | Yes Data Logging Optional UltraView Data logging software |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | 3A992.a |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
