Rigol DM3058E 5 1/2 Digit Low cost Benchtop Digital Multimeter with USB and RS-232 only
33 people are viewing this product right now
$542.30
Shipping calculated at checkout.
Estimated delivery:3 days
5 1/2 Digit Benchtop Digital Multimeter with USB and RS-232 interfaces standard
- Real 5 ½ digits readings resolution
- Up to 123 rdgs/s of measurement speed
- True-RMS AC Voltage Current measuring
- Quickly Save or Recall the 10 groups of Preset Configuration
- Preset 10 groups of Standard Sensor Configuration, built-in Thermocouple compensate in Cold Terminal
- Clone or backup all the configurations within instrument into other DM3058 via U-disc
- The first 5 ½ digit digital multimeter passing LXI Criterion in industry, which can achieve system integration easily (DM3058 ONLY)
- With easy, convenient and flexible random sensor measurement control software: UltraSensor

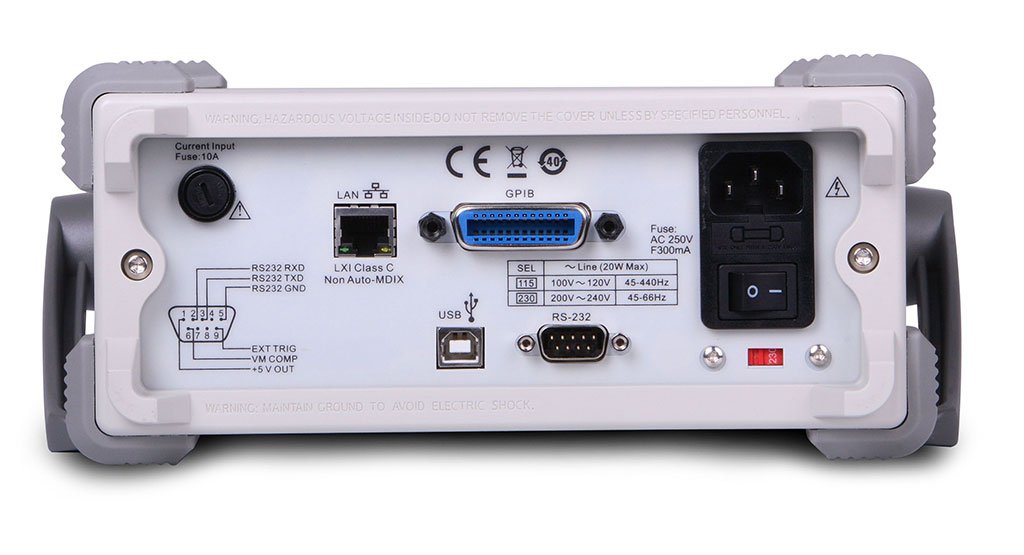

- Standard configuration interface: USB Device, USB Host, RS-232, and support U-disc storage and Web remote control
- Support remote control via a command line and enable to compatible with commands from main stream multimeters
- 256×64 LCD
- Support double display, Chinese and English menu
- Push-help makes information acquire more easier
- File management (support for U-disc and local storage)
Easy to Use Design
- 256×64 LCD
- Support double display, Chinese and English menu
- Push-help makes information acquire more easier
- File management (support for U-disc and local storage)
Powerful Measurement Functions
- Basic Measurement Function
- DC Voltage: 200 mV ~ 1000 V
- DC Current: 200 μA ~ 10 A
- AC Voltage: True-RMS, 200 mV ~ 750 V
- AC Current: True-RMS, 20 mA ~ 10 A
- 2-Wire, 4-Wire Resistance: 200 Ω ~ 100 MΩ
- Capacitance Measurement: 2 nF ~ 10000 μF
- Continuity Test: Range is fixed at 2 kΩ
- Diode Test: Range is fixed at 2.0 V
- Frequency Measurement: 20 Hz ~ 1 MHz
- Period Measurement: 1 μs ~ 0.05 s
- Random Sensor Measurement: Support for 6 types of sensor: DCV, DCI, Freq, 2WR, 4WR and TC
Applications
- R&D Laboratory
- Scientific Research and Education
- Detection and Maintenance
- Quality Test
- Automatic Production Testing
- Manufacturing Test
- Quality Test
- Laboratory
- Scientific research and Education
- Maintenance
Guarantee Safe and Secure Payment Checkout
Description
Rigol DM3058E – True 5 1/2 Resolution Digital Multimeter
- Support double display, Chinese and English menu
- Push-help makes information acquire more easier
- Diode Test: Range is fixed at 2.0 V
- Frequency Measurement: 20 Hz ~ 1 MHz
DM3058E is a digital multimeter designed with 5 ½ digits readings resolution especially fitting to the needs of high-precision, multifunction, and automatic measurement.
A high quality digital tabletop multimeter of the DM3050 series with a sampling rate of max. 120 Sa/s.
These Rigol multimeters have a very sophisticated and easy to use interface and provides plenty functions for all measurement tasks. The use of the menu navigation is very intuitional and the device will provide precise results in its many application areas. With the help of a computer you can perform long running monitoring tasks too.
The LC-Display is with its 256×64 pixels easy to read and provides a very good overview over all features. The display has a resolution of 5½ digits (max. count 240.000).
Multimeters Template | |
|---|---|
| Style | Bench |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 750 V |
| Resolution AC Volts | 1 uV (0.001 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 uV (0.001 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 20 mA |
| Resolution AC Current | 0.1 uA (0.00010 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 200 uA (0.2 mA) |
| Resolution DC Current | 1 nA (0.000001 mA) |
| Basic Accuracy V DC | .005% Reading + .003% Range |
| # Digit Display | 5.5 |
| Counts | 240000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | Yes |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | II |
| CAT Voltage | 1,000 V, 600 V CAT Voltage CAT I 1000V, CAT II 600V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | Yes |
| Wireless Display | No |
| Data Hold | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE |
| Interfaces I/O | RS-232, USB Host, USB |
| Product Weight | 2.5 KILOS (5.51 LBS) |
| Product Height | 107 MM (4.21 IN) |
| Product Length | 290.5 MM (11.44 IN) |
| Product Width | 231.6 MM (9.12 IN) |
| Data Logging | Yes Data Logging Optional UltraView Data logging software |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | 3A992.a |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
You must be logged in to post a review.
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 290.5 × 231.6 × 107 in |
