Rigol DS1102E Digital Oscilloscope 100MHz
32 people are viewing this product right now
$493.90
Shipping calculated at checkout.
Estimated delivery:4 days
100 MHZ DSO Oscilloscope 2 CH 1 GSa/s
- Check out the reviews below. The rigol ds1102e is one of the most popular 100 Mhz scopes in the USA
- Buy from the Top Rigol Distributor in the USA.
- 1 GSa/s maximum real-time sample rate
- 1Mpts long Memory Depth. ( Compare this to like scopes with just kb memory vs Mb! )
- 100 MHz Bandwidth
- USB host support on the front of the DS1102E
- Ultra compact design. Fits on your desktop better
- Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate
- Adjustable bigger sensitivity: Effectively filter noise from bigger signal and avoid false trigger
- Cursor measurements: Manual, Track and Auto Measure modes
- 10 waveforms, 10 setups, BMP and CSV storage.
- Math functions:+, -, x, FFT, Invert
- Special digital filter and waveform recorder
- Built-in hardware frequency counter
- Standard interfaces include USB Device, USB Host, RS-232
- Abundant trigger types: edge, pulse width, slope, video, alternate trigger
- Direct print to PictBridge compatible printers via USB Device interface.

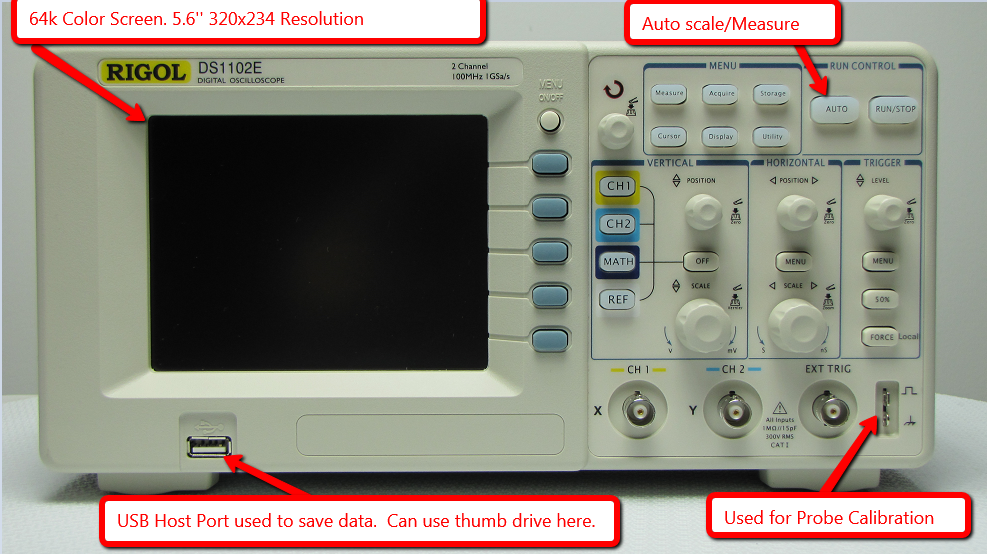

- 5.6″ TFT QVGA (320X240) with 64K color LCD backlit display,Unique/vivd waveform record and replay
- Multi-language user interfacebuilt-in help system
- Unique adjustable trigger sensitivity enables to meet different demands
- Enable to measure 20 types of wave parameters and track measurements via cursor automatically
Guarantee Safe and Secure Payment Checkout
Description

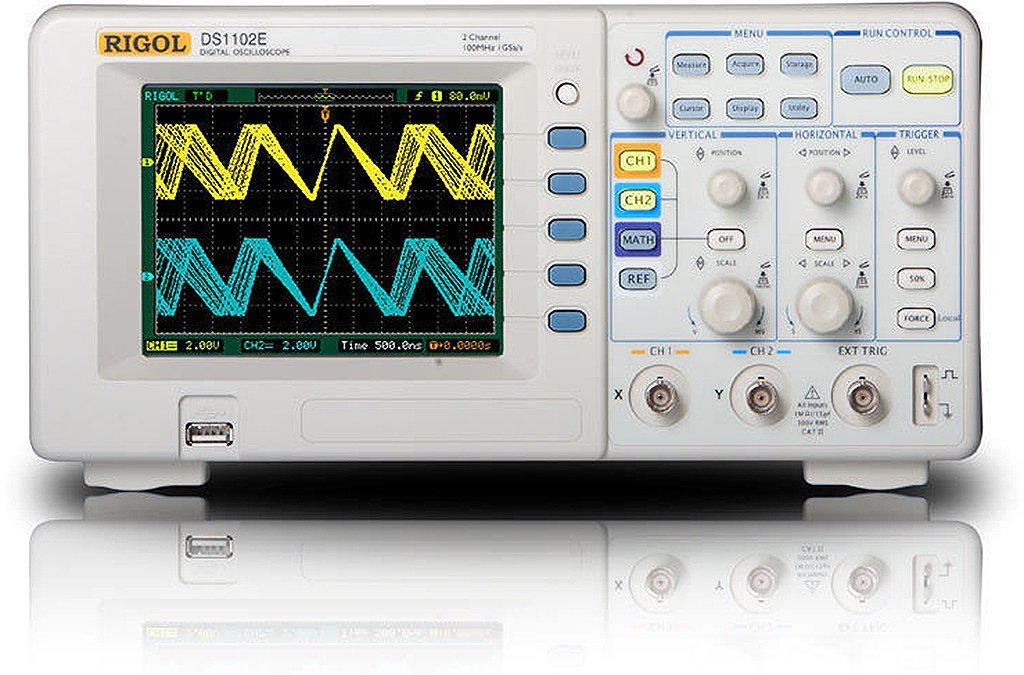

Rigol DS1102E 100MHz Digital Oscilloscope
100 MHZ DSO Oscilloscope 2 CH 1 GHz/s
- Check out the reviews below. The rigol ds1102e is one of the most popular 100 Mhz scopes in the USA
- Buy from the Top Rigol Distributor in the USA.
- 1 GSa/s maximum real-time sample rate
- 1Mpts long Memory Depth. ( Compare this to like scopes with just kb memory vs Mb! )
The Rigol DS1102E oscilloscope is one of the most popular 100 Mhz oscilloscopes if not the most single popular 100 Mhz oscilloscope in the USA in 2013. This unit has countless reviews online and many reviews on this page from our customers. You cant go wrong after reading all the reviews and feedback from customers.
Five years ago a scope like this was unheard pf for sub 1000 dollars prices. Now this unit is 399 with free shipping. The unit also comes with 1 MP of memory. This is huge and extremely useful! The ds 1102e is a website best seller. To get this distiction it has to be one of the most popular scopes we sell.
This Rigol DS1102E Model is an economical digital oscilloscope with high-performance, which is designed with dual channels and 1 external trigger channel. It provides 20 types of wave parameters for automatically measuring, which contains 10 Voltage and 10 Time parameters. In cursor mode, users can easily measure by moving cursor. Besides, 3 types of cursor measurement are optional: Manual, Track and Auto. This DS1102E DSO provides powerful PC application software: UltraScope, which enables to: Capture and measure wave; Perform local or remote operation; Save waves as “.bmp” format; Save files as “.txt” or “.xls” format; Print waveforms.
Oscilloscopes/Digital Oscilloscopes Template | |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 2 |
| Sampling Rate | 1 GS/S Sampling Rate 1 GSa/s (Single Channel), 500 MSa/s (Dual Channels) |
| Memory | 1 MP [megapoints] (1024 kB) |
| Rise Time | 3.5 ns |
| Screen Size | 5.7 IN |
| Bits | 8 |
Product General Attributes | |
| Unique Features | 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent-time sample rate 1Mpts long Memory Depth 100 MHz, 50 MHz Bandwidths Ultra compact design: 303mm x 154mm x 133mm (WxHxD) 64 k TFT color LCD, bright and vivid waveform display Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate Adjustable bigger sensitivity: Effactively filter noise from bigger signal and avoid false trigger 20 automatic measurements |
| Warranty | 3 YEARS |
| Safety Approval | CE |

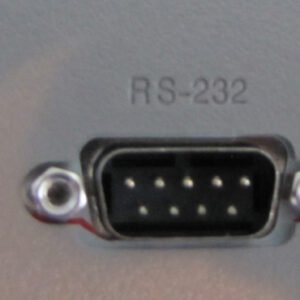

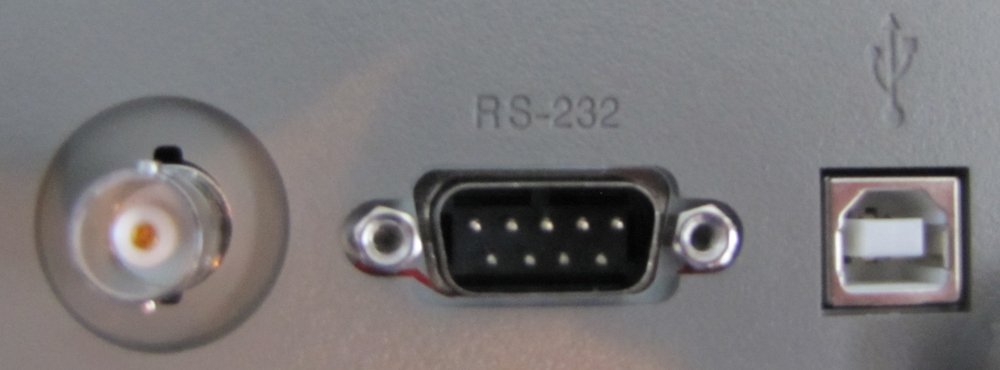

| Interfaces I/O | RS-232, USB Host, USB Interfaces I/O USB Device, USB Host, RS-232, Pass Fail Out via BNC (Isolated) ( see 360 view to see the back where the port is located ) |
| Product Weight | 2.4 KILOS (5.29 LBS) Product Weight Packaged:3.8 kg |
| Product Height | 154 MM (6.06 IN) |
| Product Length | 133 MM (5.24 IN) |
| Product Width | 303 MM (11.93 IN) |
| Data Logging | Yes Data Logging USB Host Can save to USB host or internal memory, plus |
| HTS/Schedule B Number | 9030201000 |
| ECCN Number | 3A992.g |
| Calibration Included | Factory Calibration |

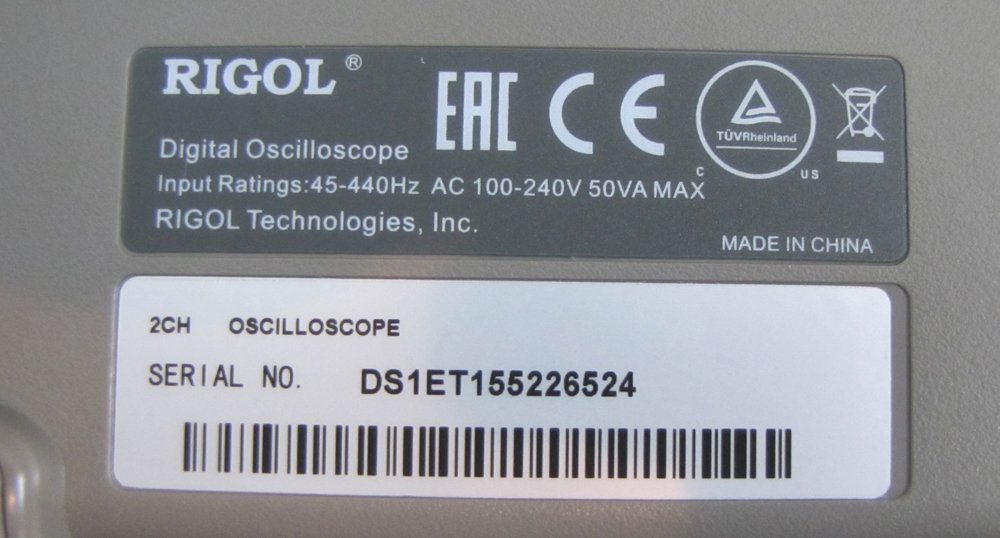

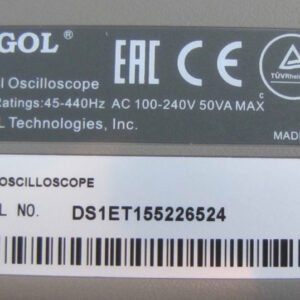

| Power Supply Voltage | 120V/220V Universal Power Supply Voltage 100 ~ 240 VACRMS, 45~440Hz, CAT II |
| Country of Origin | China |
