Description

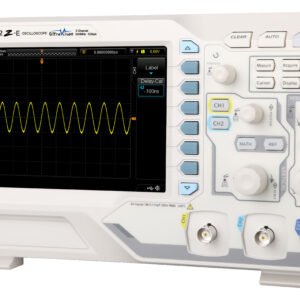

Rigol DS1102Z-E – Two Channel / 100 MHz Digital Oscilloscope
- Two channels
- 100 MHz bandwidth
- Real-time sample rate up to 1 GSa/s
- Memory depth up to 24 Mpts
- Includes FREE software options (BND-MSO/DS1000Z) already built in – a $312 value
The Rigol DS1102Z-E offers high performance at an unprecedented price. With two channels and a 100 MHz bandwidth, the DS1102Z-E is ideal for applications from education to design.
The DS1102Z-E also comes with a FREE software package (BND-MSO/DS1000Z) already built in – a $312 value. This package includes the following options:
- AT-DS1000Z – Advanced Triggering Option
- MEM-DS1000Z – Memory Depth Upgrade
- REC-DS1000Z – Real Time Waveform Record and Relay Option
- SA-DS1000Z – Serial Bus Analysis Option
Product Dimensions: Width × Height × Depth = 12.3″ x 6.3″ x 4.8″
Weight: 6.4 pounds
Innovative UltraVision Technology(Analog Channel)
- Deep Memory Depth (up to 24 Mpts)
- Higher Waveform Capture Rate (up to 30,000 wfms/s)
- Real-time Waveform Recording & Playback (up to 60,000 frames)
- Intensity Graded Color Display
Features and benefits
UltraVision: up to 30,000 wfms/s waveform capture rate
UltraVision: deep memory (up to 24 Mpts)
UltraVision: waveform recording and playback functions
UltraVision: intensity graded color display
Serial bus trigger and decoding functions (RS232/UART, I2C, SPI)
A variety of trigger functions
Oscilloscopes/Digital Oscilloscopes Template | |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 2 |
| Sampling Rate | 1 GS/S |
| Memory | 24 MP [megapoints] (24576 kB) |
| Rise Time | 3.5 ns |
| Screen Size | 7 IN |
| Bits | 8 |
Product General Attributes | |
| Product Height | 12.00 IN |
| Product Length | 18.00 IN |
| Product Width | 11.00 IN |
| HTS/Schedule B Number | 9030201000 |
| ECCN Number | 3A992.g |
| Country of Origin | China |
