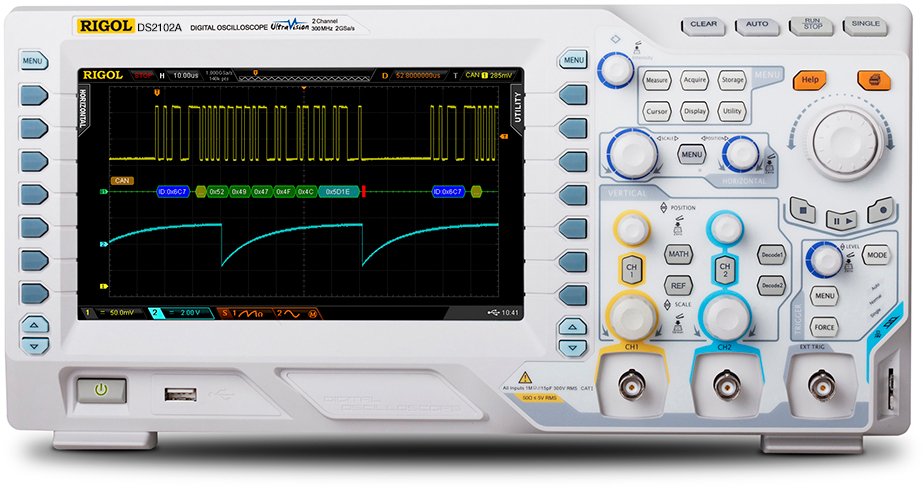

Rigol DS2102A – 100 MHz 2 Channel Digital Oscilloscope

Rigol DS2102A – 100 MHz 2 Channel Digital Oscilloscope

Model DS2102A

• 100 MHz analog bandwidth
• Wider vertical range(500uV/div ~ 10V/div), lower noise floor, Better for small signal capturing
• Max. sample rate 2G Sa/s
• 15Mpts standard memory depth or 56Mpts with option

DS2000A Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities

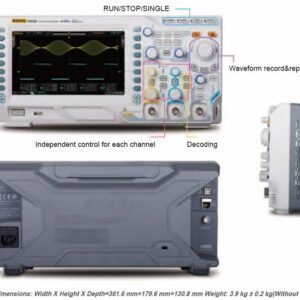

Product Dimensions: Width X Height X Depth=361.6 mm×179.6 mm×130.8 mm Weight: 3.9 kg ± 0.2 kg(Without Package)

• Deeper Memory Depth (Std.14Mpts,Opt.56Mpts)
• Higher Waveform Capture Rate (Up to 50,000 wfms/s)
• Realtime Waveform Record,Replay & Analysis (Up to 65,000 frames)
• Multi-level Intensity Grading Display (Up to 256 Levels)

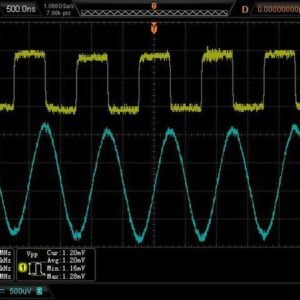

Wider Vertical range (500uV/div~10V/div), Lower noise floor, Better for small signal capturing

Full bandwidth,Lower Overshoot, Perfect frequency response design


UltraVision: Deeper memory (Std.14Mpts, Opt.56Mpts)


UltraVision: Up to 50,000 wfms/s Waveform capture rate

UltraVision: Realtime waveform record,replay,analysis function (std.)

UltraVision: Deeper Memory with Multi-Level intensity grading display (Up to 256 levels)

Std. serial bus trigger functions (RS232,I2C,SPI)

Optional Serial bus decoding function with listing display

Versatile Trigger Functions (Runt, Nth Edge,Setup/Hold)

Runt Trigger

Std. Advanced Math Function

Std. Mask Test Function

Built-in 2CH Source (DS2000A-S)


Arb function of the Built-in 2CH Source (DS2000A-S)

Automatic measurements with statistics


Complete Connectivity(USB Host,USB Device,LAN,AUX)
