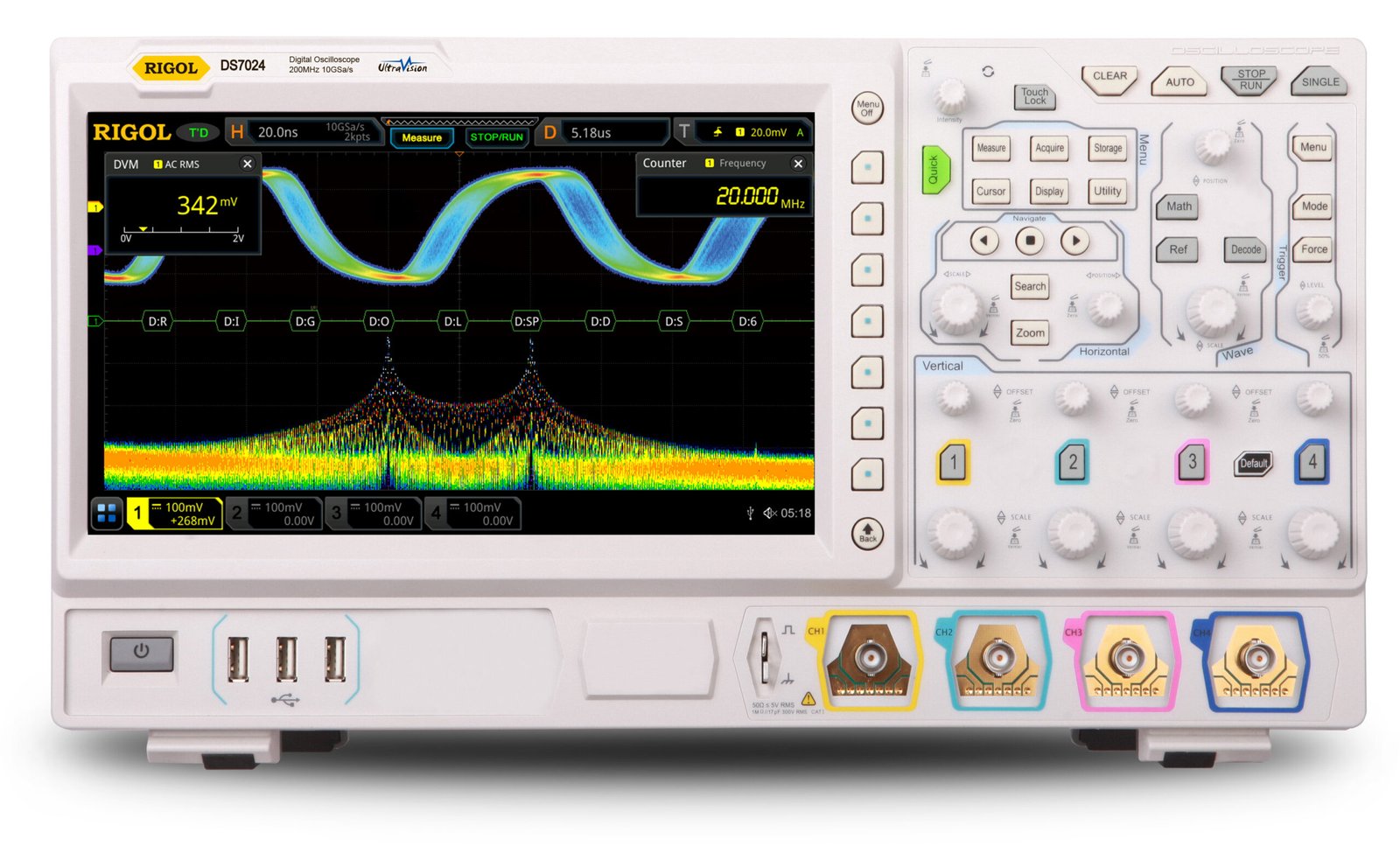

Rigol DS7024 – 200MHZ Digital Oscilloscope with 4 Channels, 10GS/s Sampling

• 4 channel, 200 MHz digital oscilloscope
• 10 GS/s real-time sample rate
• 100M record length (upgradeable to 500M via optional software)
• High waveform capture rate (600,000 waveforms per second)
• Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions

The 7000 Series Digital Oscilloscope incorporates a category leading 10GSa/sec max sample rate with up to 500M Record Length. 10GSa/sec sampling provides up to 20X oversampling on a 500MHz signal insuring the most accurate capture and display of today’s rapidly changing signals. With up to 1/2 Billion points of memory you need not compromise sample rate when acquiring a long duration signal.

High Sample Rate enables you to see signal detail and fine resolution not available in instruments with lower sample rates. This video shows the power of 20X oversampling to capture signal details other instruments can’t.

Having Long Record Length capability allows you to take long acquisitions without compromising sampling/signal quality. In the attached video we provide an example of the power of a 500M capture at 10GSa/sec. When combined with Zoom Mode and other analysis tools the DS7000 provides unmatched debug capabilities.

This graphic shows the 7000 Series’ max time capture in 1 channel mode.

The 7000 Series is capable of 20X oversampling on a 500 MHz signal for a full 50 milliseconds.

For longer time captures the 7000 Series can capture 5X oversampling at 500MHz for up to 200 ms.

Across all time settings, the combination of deep memory and high sampling in the 7000 Series gives you more flexibility in observing and analyzing high-speed signal anomalies.

The 7000 Series Digital Oscilloscope allows engineers to capture longer, higher resolution acquisitions then ever before. But to make this data useful requires search and navigation tools to help you move through the record and find areas of interest.

The DS7000 provides:

• Zoom Mode – Quickly visualize the entire record and easily zoom into details at the same time.
• Search and Mark – Find all matching instances of a trigger event across the entire capture. Quickly move between events using the Mark Table or via front panel controls.
• Record Mode – Allows you to isolate only signals of interest, capture, store and analyze up to 450,000 trigger events and and sequentially view these events over time.

RIGOL’s digital triggering technology makes it possible to find all matching events for 7 common trigger types within a seamless data set. This video explores how to capture, navigate, and quickly identify signals of interest using our search and mark capability.

Capture & Compare up to 450,000 trigger events then sequentially play those events back utilizing intuitive controls.

Combine Record Mode with our powerful Zone trigger to isolate only signals of interest for recording and reducing your time to identify and debug system anomalies.

This video shows how to capture only events of interest then playback hours or days of events like a movie.

With the push of a single button you can present the entire acquisition on screen. This split screen view lets you look at fine details while maintaining a view of where you are in the record. Quickly scroll through the record, see patterns, and easily drill into details.

Finding answers to complex challenges has never been easier. With 6 Integrated Instruments, 43 Precision Measurements, Histogram Analysis, Integrated Power Analysis and Advanced Triggering Capabilities the 7000 Series provides simple yet powerful insights into your signal under test.

The 7000 Series Digital Oscilloscope combines 6 Instruments in 1. See how the power of these 6 instruments can help solve complex problems.

• OSCILLOSCOPE
• LOGIC ANALYZER
• PROTOCOL ANALYZER
• VOLTMETER
• COUNTER/TOTALIZER
• SIGNAL GENERATOR

Quickly isolate and identify elusive signals with our powerful zone triggering capability. Simply draw one or two easily defined zones to identify only signals of interest and speed your debug.

Use the integrated Power Analysis option to quickly measure key attributes of power quality and output ripple of your switching supply. Add our Ultra Power Analyzer Software Suite for the complete characterization of switch-mode power supplies.

With the most standard measurements in the class (41) utilizing up to the full 500 Million Points of memory you can quickly characterize your design to get the data you need with consistent, stable results.

With new intuitive controls, up to 1 Million Pt FFTs, and Color Grading options the 7000 Series is a powerful tool for RF integration, EMI testing, and low frequency RF signal analysis.

Visually analyze modulations, noise, jitter and other signal characteristics with the customizable histogram display. Easily characterize signal behavior versus time or amplitude and display both a visual histogram as well as statistical data associated with the reference area.

Solve complex debug challenges with serial bus triggering and decoding. Supporting most of today’s common standards like I2C, SPI, CAN, FlexRay, I2S, 1553, and others the 7000 Series will help you quickly solve embedded communication issues.

Combine the power of advanced search and mark, zone trigger, and interactive protocol event tables to simultaneously analyze up to 4 serial buses.

Quickly evaluate signals for out-of-bounds (OOB) conditions, characterize signal jitter, or perform manufacturing pass-fail testing. With simple mask creation, statistics, and event notifications the 7000 Series provides efficient mask testing for pass/fail analysis and device characterization.

Maximize your efficiency and work the way you wish. UI Modes include:

• Touch Screen
• Mouse/Monitor
• Button and Knob
• Remote Web Interface (touch enabled)
• PC Based Remote Operation and Display

The 7000 Series Oscilloscope comes with a class-leading 10.1″ (1024×600) capacitive touch display. The dual-core Arm9 processors and high-speed display memory provide a responsive touch environment. Pinch, Stretch, Tap, Drag, and Rectangle Draw are all supported.

A new pop-up navigation scheme makes navigation quick and intuitive in a touch mode.

Remote monitoring and control have never been simpler. With the 7000 Series’ simple web interface the user can monitor and control their instrument on the local network via a tablet or smart phone. The engineer is free to move about the office and lab without sacrificing system monitoring and control.

With a native HDMI out and multiple USB HOST connections the DS7000 can be driven to display on as large a screen as desired and operated with a standard USB Mouse. This is great for teaching environments or shared team/project rooms.

Seamlessly connect, control and monitor your scope on your PC (via USB or Ethernet) using the RIGOL UltraScope utility. Perfect for remote control, monitoring, data capture and supporting distributed environments.

With a native HDMI out and multiple USB HOST connections the DS7000 can be driven to display on as large a screen as desired and operated with a standard USB Mouse. This is great for teaching environments or shared team/project rooms.

256-level intensity grading display can reflect the occurrence frequencies of the infrequent events. Its newly added color persistence function can highlight the signal of different probabilities with a different color grading. You can set the persistence time to control the duration time for the waveforms to be displayed on the screen, so that the display capability of the infrequent events can be further enhanced.
