Rigol M301 Data Acquisition/Switch System + DMM Module

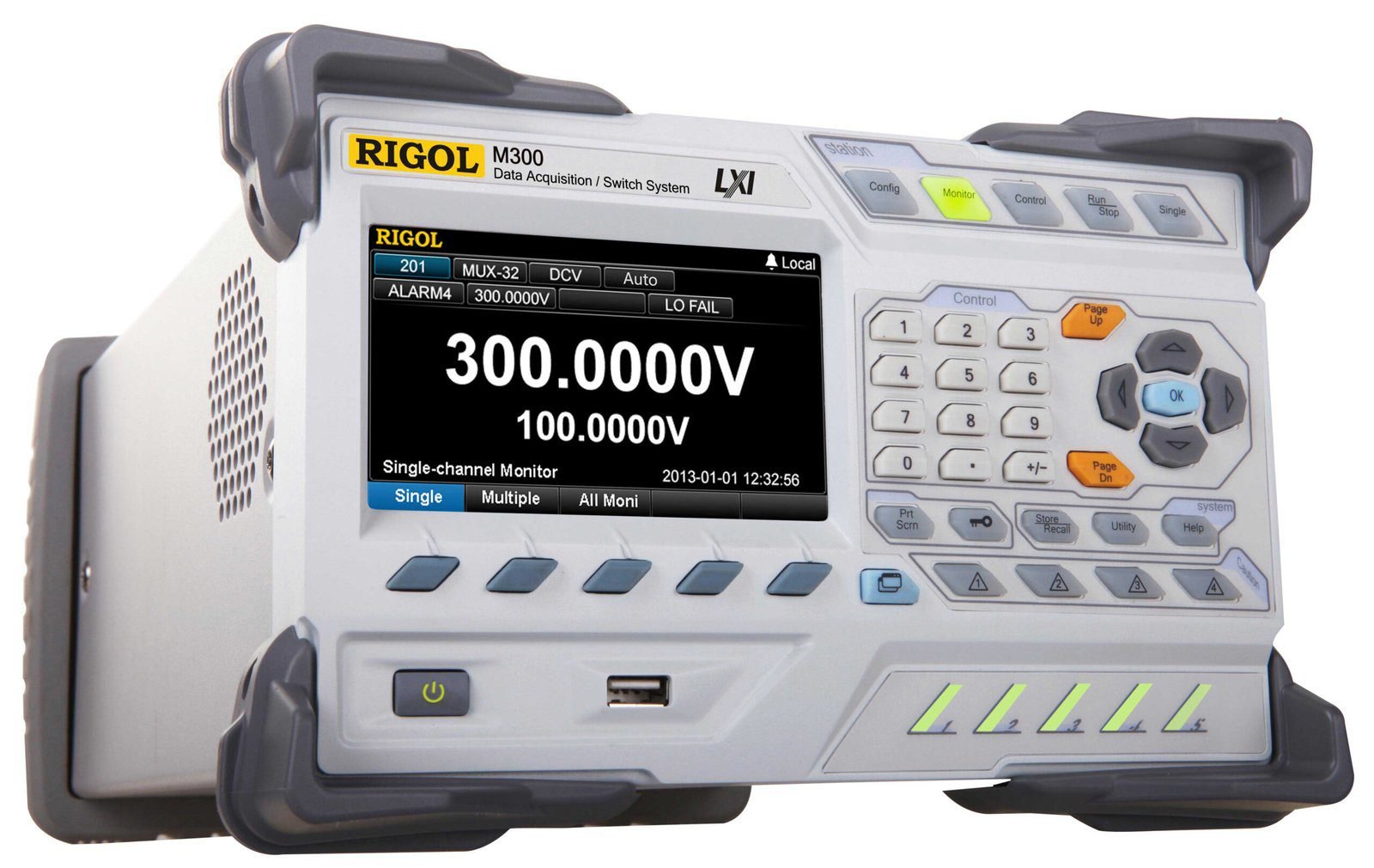

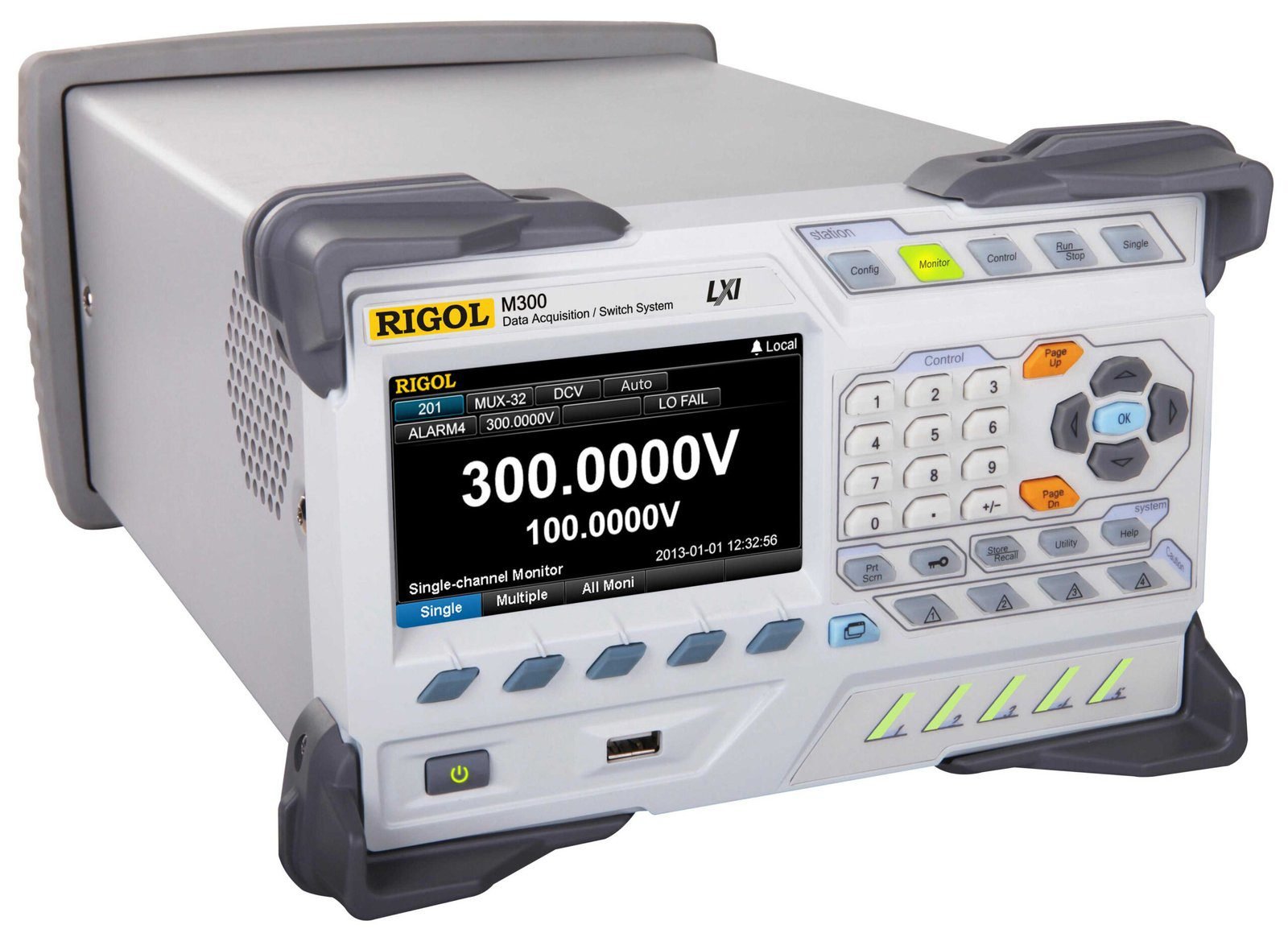

Rigol M301 – Data Acquisition/Switch System + DMM Module

Easy to use large format display

Data acquisition systems can be complex. Power users can depend on the PC software to configure their scans, but the instrument can be completely configured from the front panel with the intuitive display. Everything from channel and module settings manipulation to channel scan lists to real time graphing can be achieved without a PC.

DMM scanning of up to 256 channels in a single mainframe

Fast acquisition of voltage, resistance, temperature and more for whatever sensors or signals you need to measure. The M300 Mainframe has 5 slots for modules. Typically, one of these modules is taken by a DMM and the other 4 are used for measurement channels. Depending on the modules chosen a slot may have up to 64 measurement channels making 256 measurements per mainframe possible.

Log Readings directly to USB drive

Never run out of memory and never lose data with per scan data archiving to a USB flash drive. The M300 can internally log up to 100,000 time stamped samples. With a USB drive that can be extended indefinitely. Each scan will log data when completed backing up critical test results in the event of power loss or failure

UltraAcquire data logging software

Free data logging software included for quick and easy data transfer to a PC or complex scan configurations. UltraAcquire can control up to 5 mainframes for complete configuration of complex systems. Log and graph data after each scan to a PC over Ethernet or USB. Users can also set limits, alarms, and triggers for advanced system monitoring.


M300 Series Data Acquisition/Switch System

M300 Series Data Acquisition/Switch System with modular structure, which combines precision measurement capability with flexible signal connections, can provide versatile solutions for the applications with multiple points or signals to be tested in product performance test during R&D phase as well as automatic test during production process.

Rigol’s M300 Series data acquisition and switch system provides accurate, repeatable measurements with industry leading total system cost optimized for general purpose temperature, resistance, and voltage scanning with a breadth of modules to handle all of your DAQ system requirements. A single mainframe can scan and measure up to 128 fully differential measurements in one instrument. Automatically log data to a USB stick attached to the system or control up to 5 mainframes from a PC with a single instance of the Ultra Acquire software.

Feature and Benefits

Channel Configuration Guide

Channel Monitor

Multi-View Switch

Multiple Configuration Copy Functions

To Control Each Module Separately
