Rigol MSO1104Z KIT – 100 MHz Mixed Signal Oscilloscope with Logic Probe (4 Analog, 16 Digital Channels)
43 people are viewing this product right now
$767.80
Shipping calculated at checkout.
Estimated delivery:5 days
100 MHz MSO, 4 analog/16 digital channels with logic probe
- 100 MHz mixed signal oscilloscope
- 4 analog / 16 digital channels
- Includes DS1104Z Plus scope and RPL1116 logic probe
- Direct replacement for the MSO1104Z
- Now includes FREE software bundle BND-MSO/DS1000Z built into the unit
- Real-time sample rate up to 1 GSa/s
- Memory depth up to 12 Mpts (standard) / 24 Mpts (optional)
- Up to 30,000 wfms/s waveform capture rate
- Up to 60,000 frames hardware real-time waveform recording and playback functions (optional)
- Various trigger and bus decoding functions
- Low noise floor, vertical scale range: 1 mV/div to 10 V/div
- Various interfaces: USB Host & Device, LAN (LXI), AUX
Guarantee Safe and Secure Payment Checkout
Description
Rigol MSO1104Z KIT – 100 MHz Mixed Signal Oscilloscope with Logic Probe (4 Analog, 16 Digital Channels)
- 100 MHz mixed signal oscilloscope
- 4 analog / 16 digital channels
- Real-time sample rate up to 1 GSa/s
- Includes FREE software bundle BND-MSO/DS1000Z
- AT-DS1000Z – Advanced Triggering Option
- MEM-DS1000Z – Memory Depth Upgrade
- REC-DS1000Z – Real Time Waveform Record and Relay Option
- SA-DS1000Z – Serial Bus Analysis Option

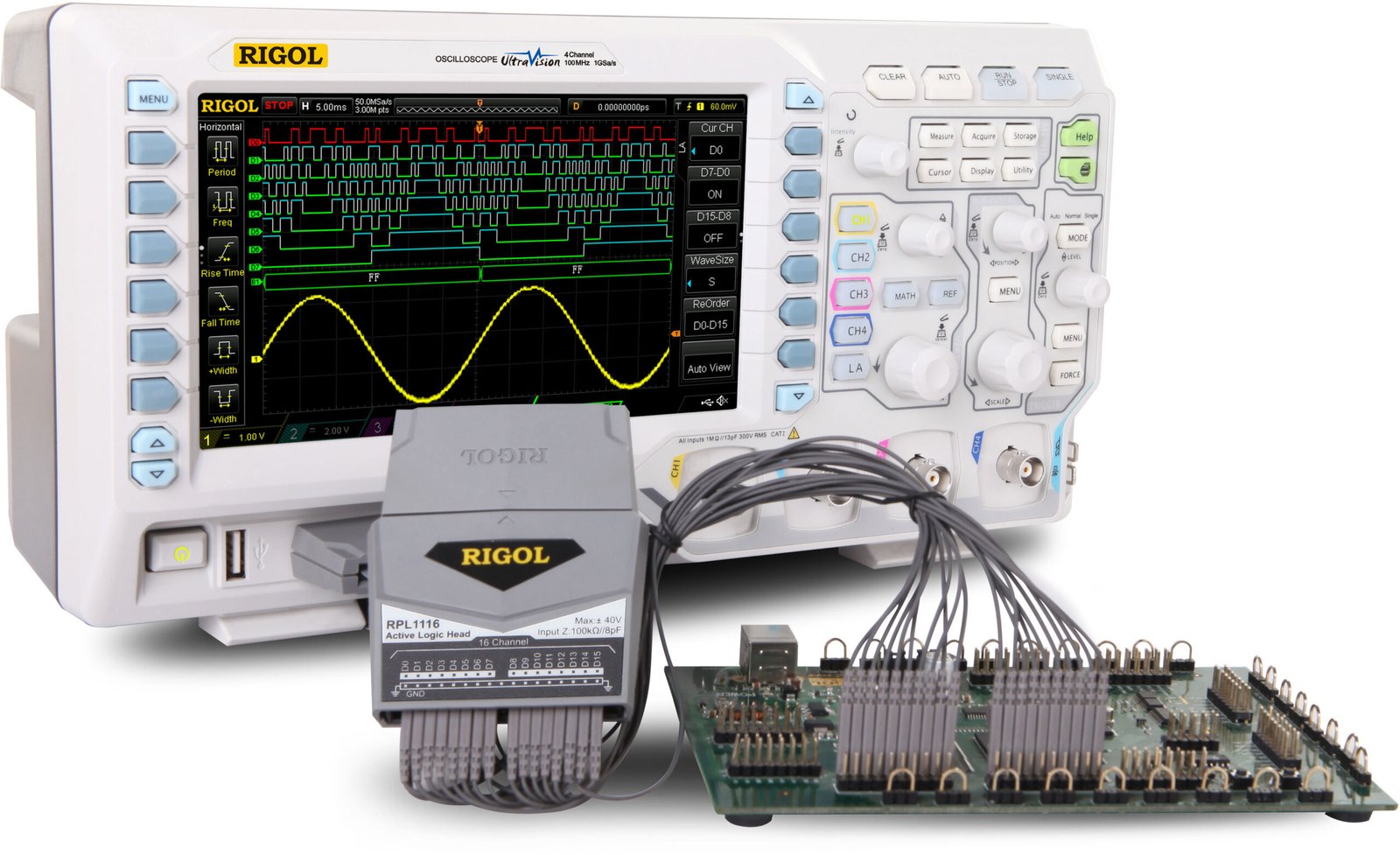

The Rigol MSO1104Z KIT is a package containing the DS1104Z Plus oscilloscope, as well as the RPL1116 logic probe. It has a 100 MHz bandwidth, with four analog and sixteen digital channels. This package is a direct replacement for the MSO1104Z, which was discontinued by the manufacturer.
Innovative UltraVision Technology (Digital Channel)
- Deeper Memory Depth (Up to 24Mpts)
- Higher Waveform capture rate (Up to 30,000wfms/s)
- Real Time waveform record & replay (Up to 60,000 frames)
- Multi-level intensity grading display
Mixed Signal Analysis with analog and digital channels
Easy to be grouped and labeled for digital channels
Serial bus triggering and decoding on digital channels
Innovative UltraVision Technology (Analog Channel)
Support a variety of logic levels
4 Channels
UltraVision: Deeper memory (Std.12Mpts, Opt.24Mpts)
UltraVision: Up to 30,000 wfms/s Waveform capture rate
UltraVision: Multi-Level intensity grading display
UltraVision: Realtime waveform Record, Replay, function (Opt.)
A variety of Trigger Functions
Built in 2 channel 25MHz Signal Source (MSO/DS1000Z-S)
Optional Serial Bus Triggering and Decoding functions (RS232,I2C,SPI)
Oscilloscopes/Digital Oscilloscopes Template | |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 4 |
| Sampling Rate | 1000 MSa/S (1 GS/S) Sampling Rate 1GSa/s sample rate |
| Memory | 12 MB (12288 kB) Memory Analog Channel: 12Mpts(1 CH), 6Mpts(2 CH), 3Mpts(3/4 CH)Std.; 24Mpts(1 CH), 12Mpts(2 CH), 6Mpts(3/4 CH) Opt. |
| Rise Time | 3.5 ns |
| # Logic Channels | 16 EA # Logic Channels All channels can not be used simultaneously. Choose either 4 analog channels OR 3 Analog + 8 Digital OR 2 Analog + 16 Digital |
| Screen Size | 7.0 IN |
| Bits | 8 |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA Safety Approval UL 61010-1:2004; CAN/CSA-C22.2 NO. 61010-1-2004; |
| Interfaces I/O | LAN / Ethernet, LXI, USB Host, USB Interfaces I/O USB HOST, USB DEVICE, LAN, Aux (TrigOut /PassFail) |
| Storage | Internal Memory |
| Product Weight | 3.4 KILOS (7.50 LBS) |
| Product Height | 160.8 MM (6.33 IN) |
| Product Length | 122.4 MM (4.82 IN) |
| Product Width | 313.1 MM (12.33 IN) |
| Shipping Weight | 4.3 KILOS (9.48 LBS) |
| Data Logging | No |
| HTS/Schedule B Number | 9030201000 |
| ECCN Number | 3A992.a |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V 50/60 Hz, 120V/220V Universal Power Supply Voltage 100-240 V, 45-440 Hz |
| Country of Origin | China |
| Shipping Height | 12.00 IN |
| Shipping Length | 18.00 IN |
| Shipping Width | 11.00 IN |
You must be logged in to post a review.
| Weight | 3.4 lbs |
|---|---|
| Dimensions | 122.4 × 313.1 × 160.8 in |
