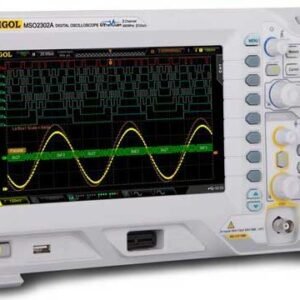

Rigol MSO2302A-S Mixed Signal Oscilloscope 300MHz, 2+16 MSO + 2 CH Source
24 people are viewing this product right now
$1,659.90
Shipping calculated at checkout.
Estimated delivery:5 days
300 MHz, 2 Channel Mixed Signal Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input and 2 ch source embedded
- 300MHz Bandwidth, 16 Digital Channel MSO with sources
- 2 Analog Channels
- 1 ns/div to 1.000 ks/div Time Base Scale
- Calculated Rise Time: 1.2ns
- Lower noise floor, Wider vertical range: 500uV/div
- 10V/div
- Max. Sample Rate: Analog channel up to 2G Sa/s, Digital channel up to 1G Sa/s(MSO)
- Memory Depth: Analog channel up to14Mpts /56Mpts(Opt.), Digital channel up to 14Mpts/28Mpts(Opt.)
- Innovative “UltraVision” technology
- Waveform capture rate up to 50,000 wfs/s
- Up to 256 Levels intensity grading waveform display
- Up to 65,000 frames Hardware based Real Time waveform, Record, Replay & Analysis functions(Std.)
- A variety of trigger and serial bus decoding functions (RS232,I2C,SPI,CAN) – May require upgrade. See Data Sheet under Documents tab for details.
- Built-in 2 Ch Waveform generator (MSO/DS2000A-S)
- Complete connectivity: USB Host & Device, LAN(LXI), AUX
- 8 inch TFT (800×480) WVGA
Guarantee Safe and Secure Payment Checkout
Description
Rigol MSO2302A-S – 300MHz, 2+16 MSO + 2 CH Source Mixed Signal Oscilloscope
- 300MHz Bandwidth, 16 Digital Channel MSO with sources
- 2 Analog Channels
- 1 ns/div to 1.000 ks/div Time Base Scale
- Calculated Rise Time: 1.2ns
- Lower noise floor, Wider vertical range: 500uV/div ~ 10V/div
- Max. Sample Rate: Analog channel up to 2G Sa/s ,Digital channel up to 1G Sa/s(MSO)
- Memory Depth :Analog channel up to14Mpts /56Mpts(Opt.),Digital channel up to 14Mpts/28Mpts(Opt.)
Low Noise floor with wide vertical range (500uV/div ~ 10V/div)
More easily spot and capture small signals and glitches with the lower noise front end on the 2000A Series.
Waveform Record and Playback
Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.
16 Digital Channels (MSO Models)
Time correlated views between analog and digital channel speeds debug of embedded designs.
UltraVision Technology
Advanced display and analysis capabilities combine with deep memory and high waveform update rate in RIGOL’s UltraVision oscilloscope technology.
Integrated 2 Channel full function 25MHz generator
Debug and emulate signals all in one instrument.
MSO/DS2000A Series Digital Oscilloscope
MSO/DS2000A Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology. MSO2000A Series has 2+16 channels, target for the embedded design and test market with its industry leading specifications, powerful trigger functions and broad analysis capabilities.
Innovative UltraVision Technology (Analog Channel)
- Deeper Memory Depth (Up to 56Mpts)
- Higher Waveform Capture Rate (Up to 50,000 wfms/s)
- Realtime Waveform Record,Replay & Analysis (Up to 65,000 frames)
- Multi-level Intensity Grading Display (Up to 256 Levels)
Features and Benefits
Wider Vertical range (500uV/div~10V/div), Lower noise floor, Better for small signal capturing
Built-in 2CH Source (MSO/DS2000A-S)
UltraVision: Deeper memory (Std.14Mpts,Opt.56Mpts)
UltraVision: Up to 50,000 wfms/s Waveform capture rate
UltraVision: Realtime waveform record,replay, analysis function (std.)
UltraVision: Deeper Memory with Multi-Level intensity grading display(Up to 256 levels)
Serial bus Trigger & Decoding functions (RS232,I2C,SPI,CAN)
Versatile Trigger Functions (Runt, Nth Edge,Setup/Hold…)MSO2000A Series Mixed Signal Oscilloscope
Besides the powerful functions of DS2000A, you could get more from MSO2000A with:
- 16 Digital channels
- Sample rate of Digital channel up to 1 GSa/s
- Memory depth of Digital channel up to 28Mpts
- Waveform capture rate of Digital channel up to 50,000wfms/s
- Real Time Waveform Record, Replay and analysis functions, up to 65,000 frames
- Triggering and Decoding across Analog and Digital channels
- Easy to be grouped for digital channels
- Support a variety of logic levels
- Time correlation display for both analog and digital signals
Mixed Signal Analysis with analog and digital channels
Easy to be grouped and labeled for digital channels
Serial bus triggering and decoding on digital channels
Support a variety of logic levelsOscilloscopes/Digital Oscilloscopes Template | |
|---|---|
| Bandwidth | 300 MHz |
| Channels | 2 |
| Sampling Rate | 2000 MSa/S (2 GS/S) Sampling Rate 200 MSa/S (0.2 GS/S) |
| Rise Time | 1.2 ns |
| # Logic Channels | 16 EA |
| Screen Size | 8.0 IN |
| Bits | 8 |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | LAN / Ethernet, LXI, USB Host, USB |
| Storage | Internal Memory |
| Product Weight | 4.4 KILOS (9.70 LBS) |
| Product Height | 179.6 MM (7.07 IN) |
| Product Length | 130.8 MM (5.15 IN) |
| Product Width | 361.6 MM (14.24 IN) |
| Data Logging | No |
| HTS/Schedule B Number | 9030201000 |
| ECCN Number | 3A992.g |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V 50/60 Hz, 120V/220V Universal Power Supply Voltage 100 V to 240 V, 45 Hz to 440 Hz |
| Country of Origin | China |
You must be logged in to post a review.
| Weight | 4.4 lbs |
|---|---|
| Dimensions | 130.8 × 361.6 × 179.6 in |
