Rigol NFP-3 RF Near Field Probe Kit
11 people are viewing this product right now
$548.90
Shipping calculated at checkout.
Estimated delivery:3 days
Near Field Probe, Requency Range: 30MHz to 3GHz
- Frequency Range: 30MHz to 3GHz
- One set includes four types of probe, provides optimizing sensitivity and resolution
- Minimum resolution: 2mm; able to capture near field radiation of single circuit line
- Applicable for electromagnetic leakage testing inside the cable
- A measurement tool for EMI pre-conformance testing, troubleshooting, and design verification
- Determine frequency and relative intensity of the spectral components of the interference source
Guarantee Safe and Secure Payment Checkout
Description
Rigol NFP-3 – RF Near Field Probe Kit
- Frequency Range: 30MHz to 3GHz
- One set includes four types of probe, provides optimizing sensitivity and resolution
- Minimum resolution: 2mm; able to capture near field radiation of single circuit line
- Applicable for electromagnetic leakage testing inside the cable

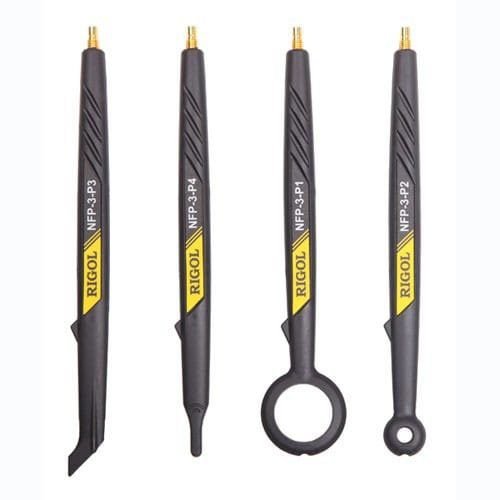

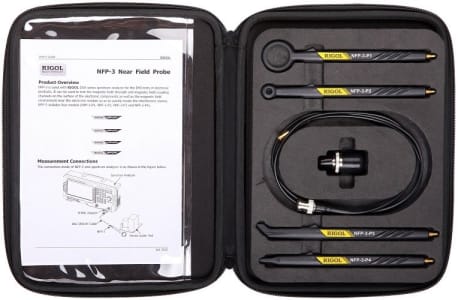

The Rigol NFP-3 is used with RIGOL DSA series spectrum analyzer for the EMI tests of electronic products. It can be used to test the magnetic field strength and magnetic field coupling channels on the surface of the electronic components as well as the magnetic field environment near the electronic module so as to quickly locate the interference source. NFP-3 includes four models (NFP-3-P1, NFP-3-P2, NFP-3-P3 and NFP-3-P4).
Connect the spectrum analyzer
Connect the SMB (M) terminal of NFP-3 and the BNC (F) terminal of the N-BNC adaptor respectively via the BNC-SMB RF cable; connect the N (M) terminal of the N-BNC adaptor to the RF input terminal of the spectrum analyzer.
Connect the device under test
NFP-3 is used to perform short-distance noncontact measurement on the device under test. Pay attention to the direction of the probe during measuring.
Typical Application
Locate the EMI radiation interference source.
Determine the frequency and relative strength of the spectral component of the interference source.
Product General Attributes | |
|---|---|
| Product Height | 4.00 IN |
| Product Length | 14.00 IN |
| Product Width | 10.00 IN |
| HTS/Schedule B Number | 9030908961 |
| ECCN Number | EAR99 |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 14 × 10 × 4 in |
|---|
