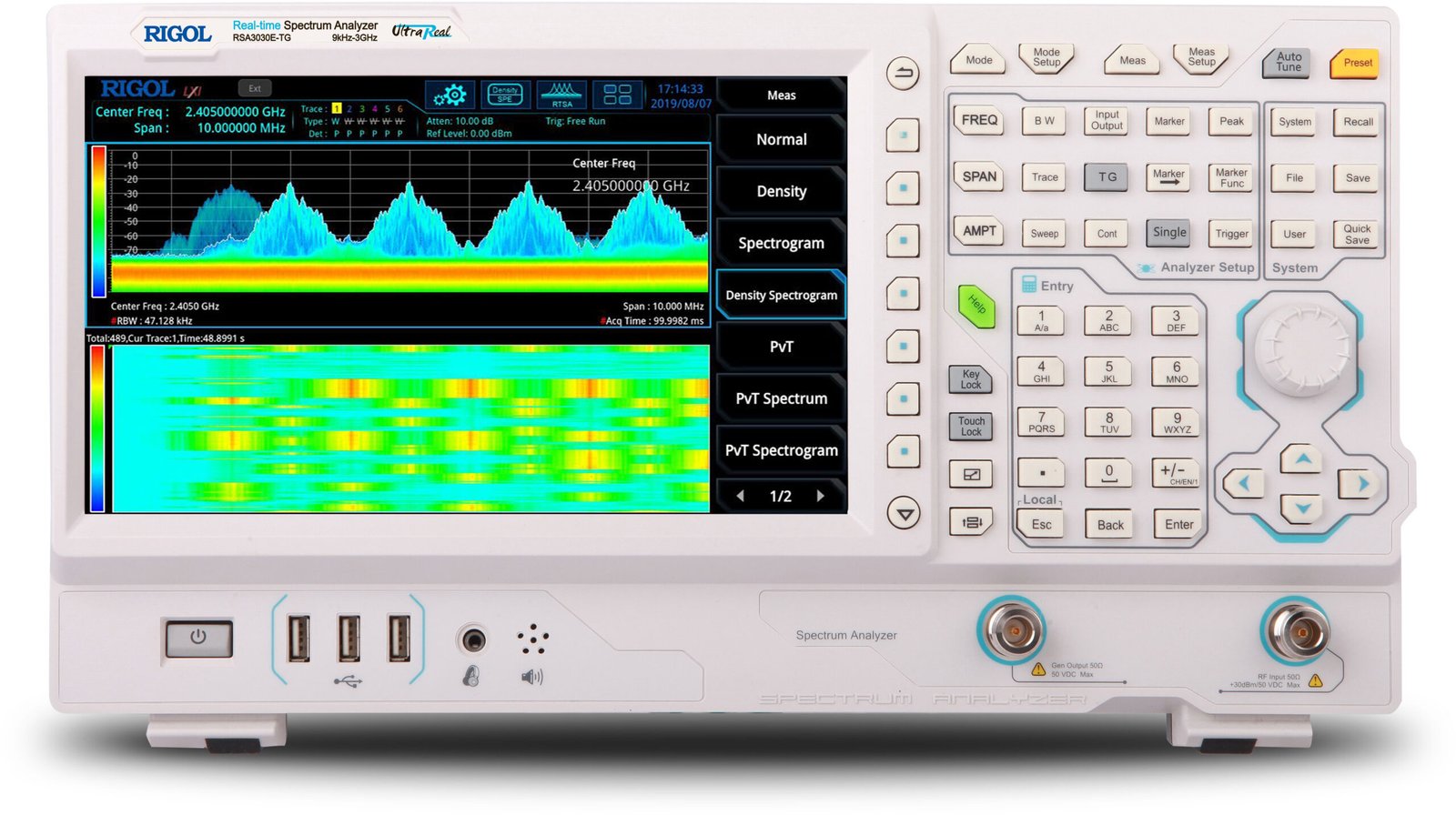

Rigol RSA3030E-TG – 3 GHz Real Time Spectrum Analyzer with Tracking Generator
44 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
3.0 GHz Real-Time Spectrum Analyzer w/10MHz RTBW and Tracking Generator
- RSA3000E series
- Real time spectrum analyzer
- 3 GHz bandwidth
- Includes a tracking generator
- Ultra-Real technology
- Up to 10 MHz real-time analysis bandwidth
- Various advanced measurement functions
- EMI measurement application (option)
- Multiple trigger modes and trigger masks
- Density, spectrogram, and other display mode
- 10.1″ capacitive multi-touch screen; supporting touch gestures
Guarantee Safe and Secure Payment Checkout
Description
Rigol RSA3030E-TG – 3 GHz Real Time Spectrum Analyzer with Tracking Generator
RSA3000E series
- Real time spectrum analyzer
- 3 GHz bandwidth
- Includes a tracking generator
The RSA3000E Series combine High Performance swept analysis with Real-Time performance (9.3µs 100% POI), rich data displays, and advanced triggering all at an exceptional price. The RSA3000E is available in a 1.5 or 3 GHz bandwidth, with an optional tracking generator for each.
RSA3000E Series Real-time Spectrum Analyzer
The RSA3000E is based on Rigol’s Ultra Real technology, the high-speed real-time measurement mode which enables users to acquire signals in the analysis bandwidth seamlessly and make data analysis. Ultra Real provides various display modes, such as Spectrogram, Density, and PVT. An FMT function is also available.
Features of Ultra Real include:
Seamless analysis
- Seamless I/Q data acquisition in the analysis bandwidth
- Seamless spectrum analysis
FMT
- Frequency mask trigger (FMT) to trigger the measurement by sporadic or transient events in the spectrum
Composite displays
- Spectrogram for gap-free display of the spectrum
- Density for you to visualize how frequently signals occur
Comparison of RSA3000E and DSA800
The RSA3000E offers exceptional performance and value. The following is a comparison of the new RSA3015E and previous DSA815, both having a 1.5 GHz bandwidth.
| RSA3015E | DSA815 | |
| Swept Range | 9 kHz-1.5 GHz | 9 kHz-1.5 GHz |
| DANL | -166 dBm (requires PA) | -155 dBm |
| Phase Noise | -102 dBc/Hz | -80 dBc/Hz |
| Best sweep speed | 1 ms | 10 ms |
| Min RBW | 1 Hz | 10 Hz |
| Tracking Generator | On TG Model | On TG Model |
| Display / Interface | 10.1″ touchscreen | 8″ WVGA |
| Real-Time BW | 10 MHZ | N/A |
| Real-Time Visualization | Density, Spectogram, PvT, and combinations | N/A |
| ASF/FSK demodulation | In instrument option | PC software option |
| EMI Software | In instrument option | PC software option |
| EMI Detectors/Bandwidth | Included in EMI Software | Separate License Purchase |
| Starting Price | $1799 | $1199 |
Spectrum Analyzers/Spectrum Analyzers Template | |
|---|---|
| Bandwidth Range Max | 3.0 GHz |
| Bandwidth Range Min | 9 kHz |
| Noise Floor | -161 dBm (-161 dB) |
| Tracking Generator | Yes |
| Type(Spectrum Analyzers) | Benchtop |
| Channel Power Measurement | Yes |
| Auto tuning | Yes |
| Marker Measurement | Yes |
| Preamplifier | No |
| AM/FM Demodulation | Yes |
Product General Attributes | |
| Unique Features | 7 Real-Time Visualization Modes Up to 40 MHz of Real-Time BW Powerful triggering capabilities ASK/FSK Demodulation Option EMI Mode Option |
| Warranty | 3 YEARS |
| Interfaces I/O | LAN / Ethernet, USB Host, Web Host / Web Server, HDMI, USB |
| Storage | Internal Memory, USB Flash Drive |
| Product Height | 14.00 IN |
| Product Length | 20.00 IN |
| Product Width | 16.00 IN |
| HTS/Schedule B Number | 9030840000 |
| ECCN Number | 3A992.a |
| Calibration Included | NIST Calibration |
| Country of Origin | China |
| Shipping Height | 14.00 IN |
| Shipping Length | 20.00 IN |
| Shipping Width | 16.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 20 × 16 × 14 in |
|---|
