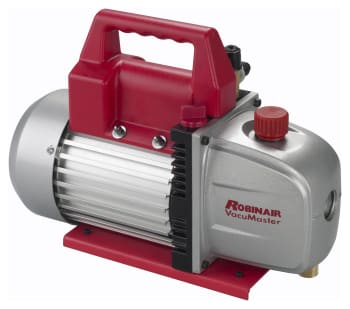

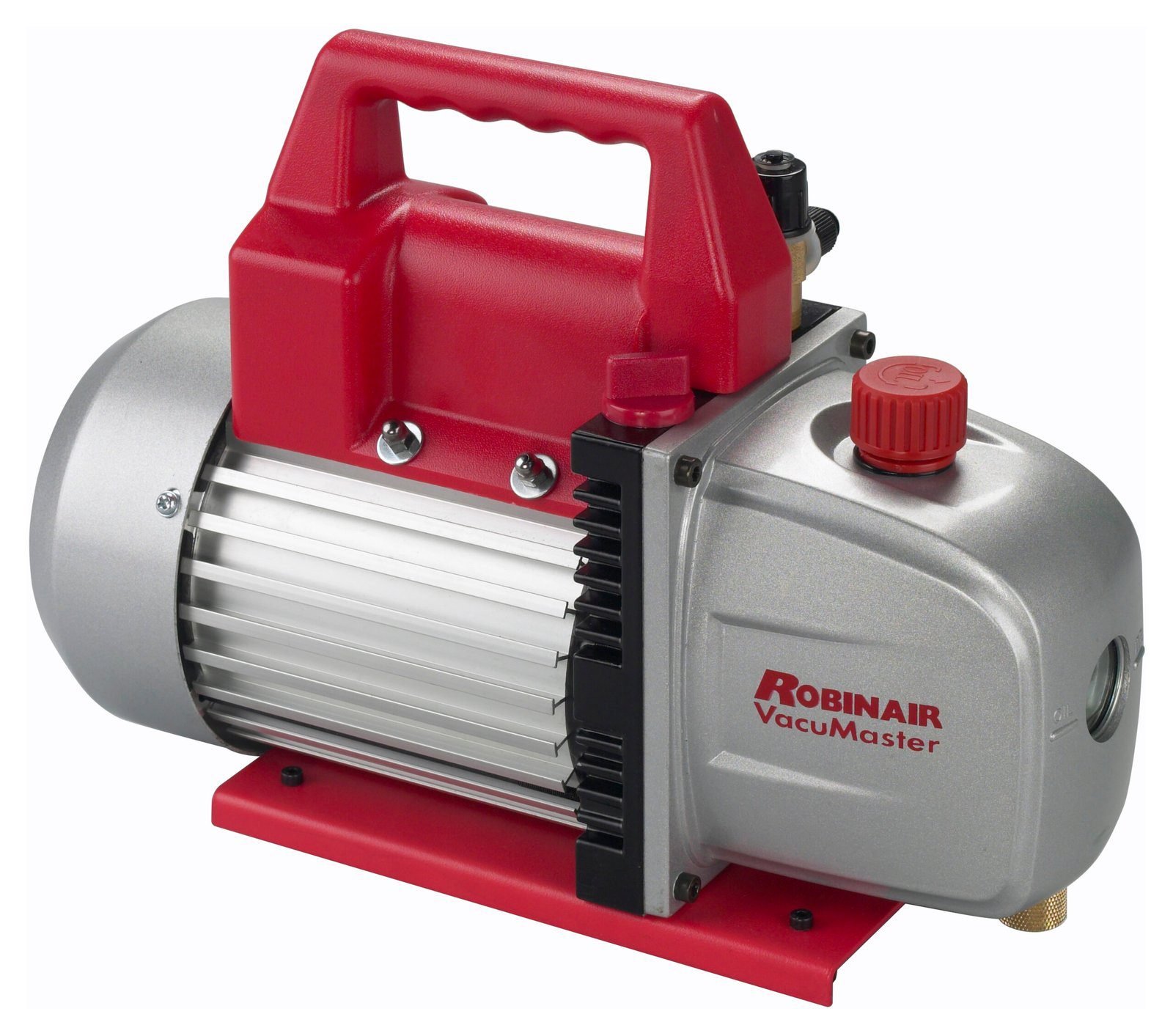

Robinair 15300 – VacuMaster Vacuum Pump, 3.0 CFM
42 people are viewing this product right now
Original price was: $419.95.$259.93Current price is: $259.93.
Shipping calculated at checkout.
Estimated delivery:5 days
VAC PUMP 110, 3 CFM – 2 STAGE
- Two-stage Design – Cleans the system more thoroughly than a single-stage pump; the second stage starts pumping at a lower pressure so you can pull a deeper, ultimate vacuum
- Oil Drain Valve – Positioned at the bottom of the oil reservoir and angled for faster, more complete draining
- Oil Fill Port – Makes adding oil simple since the port is accessible from the front or either side. The sight glass on the front of the pump shows you when enough oil has been added
- Heavy-Duty Motor – High torque design for easy startup and efficient operation
- Die-Cast Aluminum Housing – Cast aluminum housings make the pumps lightweight but durable
Guarantee Safe and Secure Payment Checkout
Description
Robinair 15300 – VacuMaster Vacuum Pump, 3.0 CFM
- Performance tested to meet Robinair’s high standards
- Power and capacity for a wide range of service applications
- High CFM rating for fast, thorough evacuation
- Two-stage rotary vane design
Robinair VacuMaster vacuum pumps features a two stage design, cleaning the system more thoroughly with a second vacuum, and leading to a deeper ultimate vacuum level. Designed for quick oil changes, the oil fill port and drain plug are easily accessible for fast and complete oil changes, and the easy view sight glass enables users to quickly see both oil color and level.
VacuMaster pumps feature heavy duty motors, with a high torque design for easy start up and efficient operation. Available in a variety of sizes, Robinair offers a vacuum pumps for any application. Please see the chart below for more information.
| Models | Domestic Models | International Models | ||||
| 15150 | 15300 | 15500 | 15800 | 15301 (3 CFM) | 15501 (5 CFM) | |
| Free Air Displacement | 1.5 CFM | 3 CFM | 5 CFM | 8 CFM | 71 liters/minute | 118 liters/minute |
| Factory Micron Rating | 50 microns | 35 microns | 35 microns | 35 microns | 35 microns | 35 microns |
| No. of Stages | 2 | 2 | 2 | 2 | 2 | 2 |
| Intake Fitting | 1/4″ MFL and 3/8″ Acme 3/8″ FFL x 1/2″ Acme adapter | 1/4″ MFL and 3/8″ Acme 3/8″ FFL x 1/2″ Acme adapter | 1/4″ MFL and 3/8″ Acme 3/8″ FFL x 1/2″ Acme adapter | 1/4″ MFL and 3/8″ MFL | 1/4″ MFL and 1/2″ MFL 3/8″ FFL x 1/2″ Acme adapter | 1/4″ MFL and 1/2″ MFL 3/8″ FFL x 1/2″ Acme adapter |
| Oil Capacity | 7.4 oz. (219 ml) | 7.5 oz. (220 ml) | 7.5 oz. (220 ml) | 18.6 oz. (550 ml) | 7.5 oz. (220 ml) | 7.5 oz. (220 ml) |
| Motor Size | 1/4 hp | 1/3 hp | 1/3 hp | 1 hp | 1/3 hp | 1/3 hp |
| Voltage | 115V 60 Hz | 115V 60 Hz | 115V 60 Hz | 115V 60 Hz | 220V 50Hz | 220V 50Hz |
| Weight | 22 lbs. (10 kg) | 28 lbs. (12.5 kg) | 28 lbs. (12.2 kg) | 37 lbs. (16.8 kg) | 28 lbs. (12.5 kg) | 28 lbs. (12.5 kg) |
| Dimensions | 9.5″ H x 4.75″ W x 12.5″ L 240 mm x 120 mm x 315 mm | 10″ H x 5″ W x 13″ L 255 mm x 123 mm x 336 mm | 10″ H x 5″ W x 13″ L 255 mm x 123 mm x 336 mm | 16″ H x 6″ W x 10″ L 406″ mm x 152 mm x 254 mm | 10″ H x 5″ W x 13″ L 255 mm x 123 mm x 336 mm | 10″ H x 5″ W x 13″ L 255 mm x 123 mm x 336 mm |
HVAC Equipment and Instruments/HVAC Vacuum Pumps | |
|---|---|
| Number of Stages (Pumps) | 2 |
| Vacuum (Vacuum Pumps) | 3 CFM |
| Line Power (Pumps) | 110-120 VAC |
Product General Attributes | |
| Product Weight | 28 LBS |
| Product Height | 10 IN |
| Product Length | 13 IN |
| Product Width | 5 IN |
| Shipping Weight | 30 LBS |
| HTS/Schedule B Number | 8414100000 |
| Country of Origin | China |
| Shipping Height | 8.00 IN |
| Shipping Length | 15.25 IN |
| Shipping Width | 11.75 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresManuals
| Weight | 28 lbs |
|---|---|
| Dimensions | 13 × 5 × 10 in |
