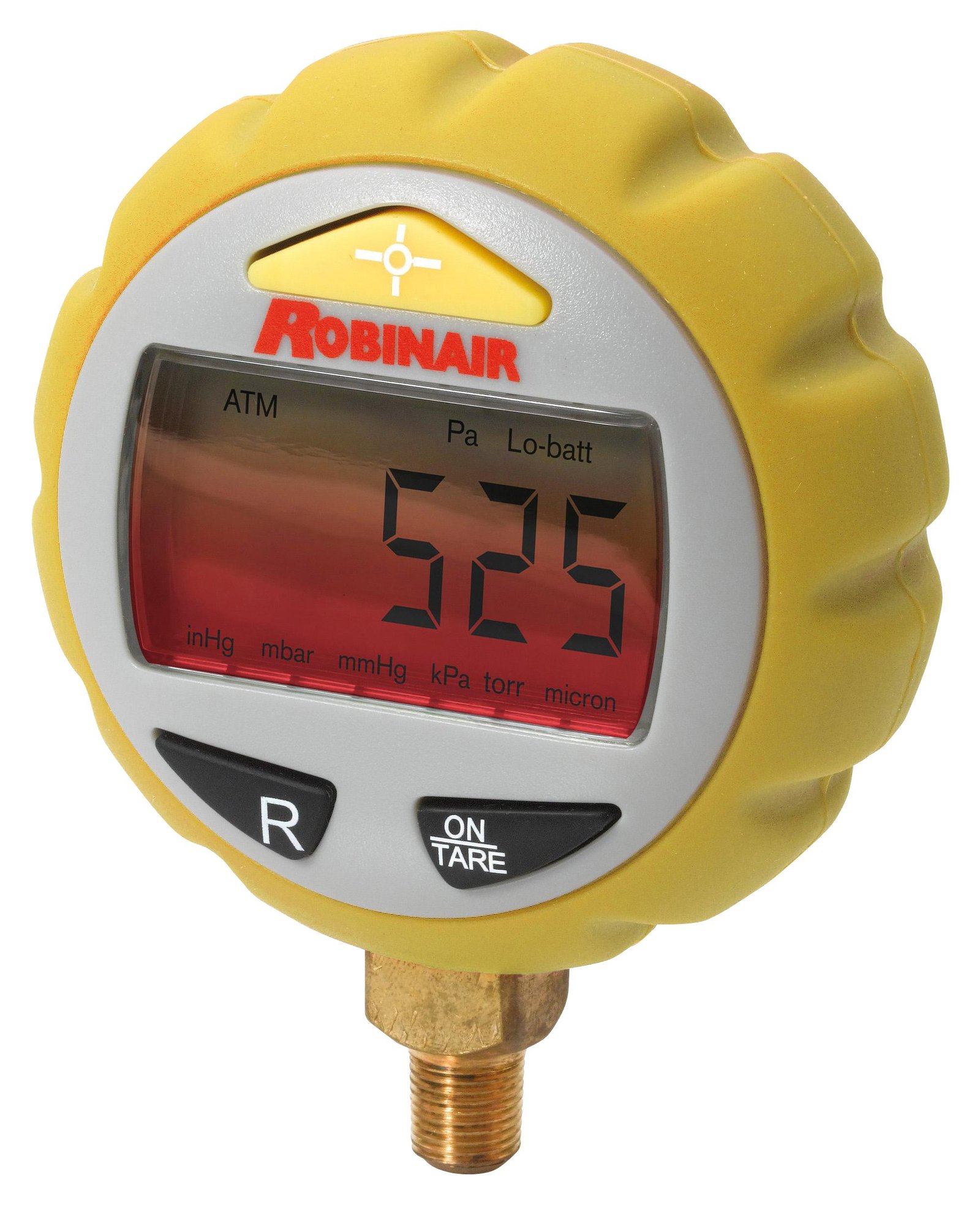

Robinair RAVG-1 – Digital Micron Vacuum Gauge
36 people are viewing this product right now
Original price was: $442.38.$273.81Current price is: $273.81.
Shipping calculated at checkout.
Estimated delivery:3 days
DIGITAL MICRON GAUGE
- High Resolution and unique backlight indicator make precision readings easy
- Patent Pending design, employs a sophisticated MEMS Pirani sensor
- Range from Atmosphere down to 10 microns
- Measure vacuum in Microns, mmHg, inHg, mBar, Pascals or Torr
- Extremely accurate at low micron levels
- Impact and water resistant case with protective Rubber boot
- Rapid response to changes in vacuum
- Large easy to read 5 digit display
- Auto shut off feature prolongs battery life
- Battery powered
- Integrated “magnetic” hook
- Includes carrying case and tee adapters or in-line connections (1/4″ MFL x 1/4″ MFL and 1/4″ FFL x 1/4″ MFL versions)
Guarantee Safe and Secure Payment Checkout
Description
Robinair RAVG-1 – Digital Micron Vacuum Gauge
- Measure vacuum in Microns, mmHg, inHg, mBar, Pascals or Torr
- Extremely accurate at low micron levels
- Range from Atmosphere down to 10 microns
- Large, easy to read 5 digit display
The Robinair RAVG-1 is one of the most sophisticated Digital Micron (vacuum) Gauges available for field service. Packaged in the same convenient case as Robinair’s successful Digital Pressure gauges, this standalone gauge is compact and can be used anywhere.
The RAVG-1 employs a sophisticated MEMS Pirani type sensor that directly measures flow. Unlike all other field service gauges on the market, the RAVG-1 is NOT affected by temperature.
The RAVG-1 measures vacuum from Atmosphere to 10 microns in 6 different scales, and can withstand overpressure beyond 30 bar. The unit employs an industry first multi-color backlight that functions as an instant go/no go indicator of acceptable vacuum or leakage.
Product General Attributes | |
|---|---|
| Unique Features | Operating Range Atmosphere to 10 Microns Measuring Units Microns/ mmHg/ inHg/ mBar/ Pa/ Torr Display 5 digit STN LCD, 50 x 30 mm with tricolor LED backlight |
| Product Weight | 2 LBS |
| Product Height | 4.00 IN |
| Product Length | 10.50 IN |
| Product Width | 7.25 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9026204000 |
| ECCN Number | EAR99 |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsOther
| Weight | 2 lbs |
|---|---|
| Dimensions | 10.5 × 7.25 × 4 in |
